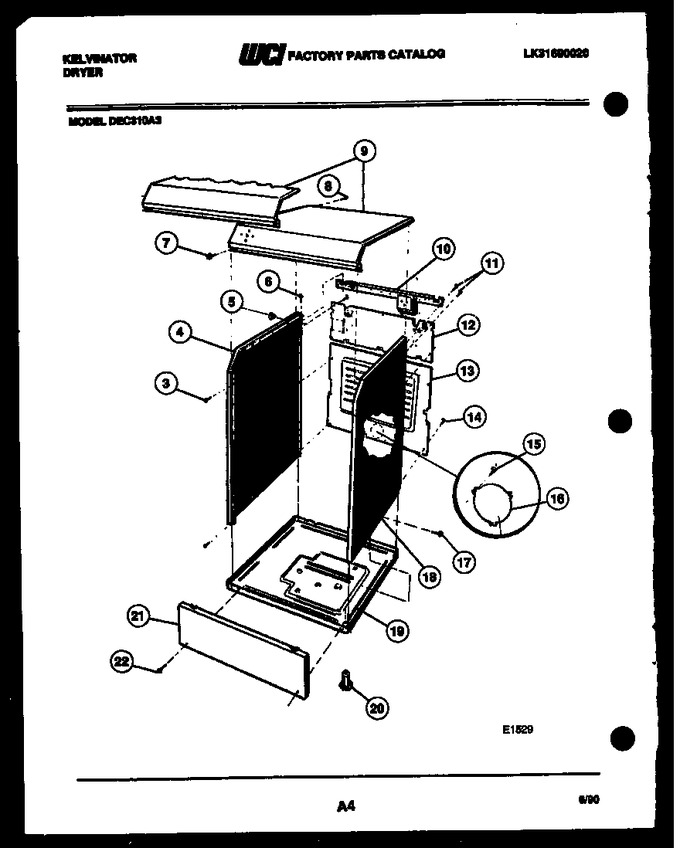

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | F060753-000 | Screw (2) |
|
- | |||||
| 4 | F140419-032 | Panel Lh (white) |
|
- | |||||
| 5 | F140382-032 | Button Plug (white) |
|
- | |||||
| 6 | F064006-000 | Screw |
|
- | |||||
| 7 | F060753-000 | Screw (4) |
|
- | |||||
| 8 | F064006-000 | Screw ( 2 ) |
|
- | |||||
| 9 | F140428-432 | Control Pnl (white) |
|
- | |||||
| 10 | F138840-026 | Support-rear Cabinet |
|
- | |||||
| 11 | F060753-000 | Screw (2) |
|
- | |||||
| 12 | F078782-428 | Rear Panel-upper |
|
- | |||||
| 13 | F141073-528 | Rear Panel-lower |
|
- | |||||
| 14 | F060753-000 | Screw (6) |
|
- | |||||
| 15 | F060753-000 | Screw |
|
- | |||||
| 16 | F139218-200 | Exhaust Cover |
|
- | |||||
| 17 | F066234-000 | Screw ( 6 ) |
|
- | |||||
| 18 | F140418-032 | Panel Rh (white) |
|
- | |||||
| 19 | F140397-026 | Base |
|
- | |||||
| 20 | F137033-000 | Leveling Leg (4) |
|
- | |||||
| 21 | F078173-032 | Access Panel, White |
|
- | |||||
| 22 | F130139-000 | Screw (2) |
|
- |
