SELECT A DIAGRAM

01 - Cover Sheet

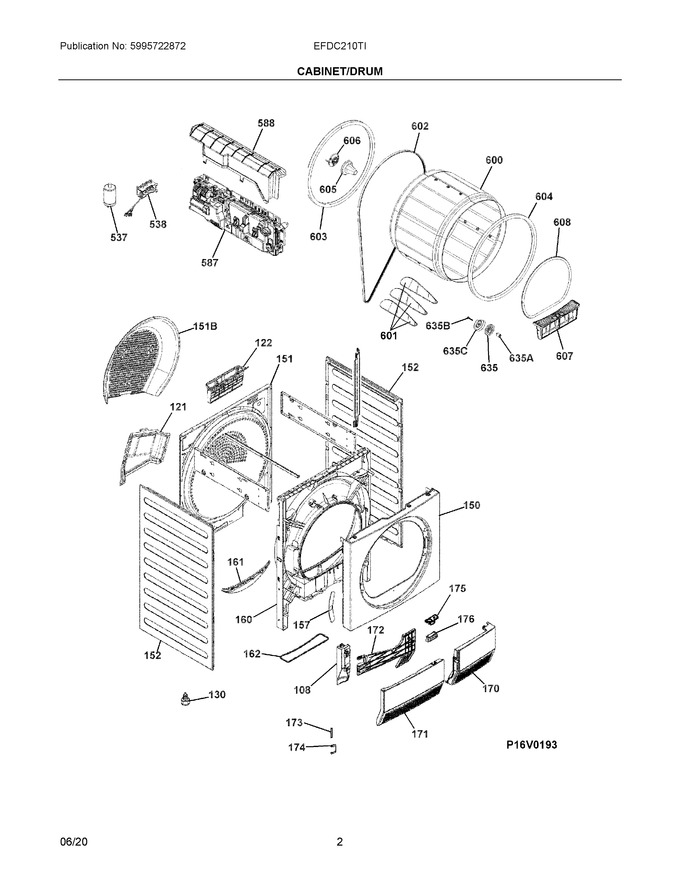

02 - Cabinet/drum


03 - Door


04 - Controls/top Panel


05 - Motor


06 - Burner


07 - Wiring Diagram


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
108	136655204		Hinge, Condenser Door		Appelez-nous	-
121	136602600		Cover, Heating Element		Appelez-nous	-
122	136602703		Grating, Protection, Heating Element				$ 353.91
130	899647060471		Leg, Level, Adjust			Immediately	$ 71.68
150	136600331		Panel, Front, Stainless		Appelez-nous	-
151	136600571		Panel, Back Asmy, P10, Sahara		Appelez-nous	-
152	136437500		Panel, Side, Silver, Insulation		Appelez-nous	-
157	136608902		Cover Plate, Door Lock, Silver		Appelez-nous	-
160	136600457		Duct, Air, Front, Lamp				$ 276.52
161	136605801		Support, Humidity Sensor				$ 61.95
162	136606100		Gasket, Filter				$ 48.20
170	136655105		Cover, Fr/rt Kickplate, Silver				$ 125.01
171	136655010		Door, Outer, Silver, Plinth				$ 163.72
172	136655503		Door, Inner, Grey, Support		Appelez-nous	-
173	112331110		Hinge Pin, Door, Plinth		Appelez-nous	-
174	136608100		Spring, Door, Plinth		Appelez-nous	-
175	136431210		Button, Door, Silver		Appelez-nous	-
176	136602301		Support, Button, Door				$ 8.66
537	808089303		Filter, Anti-interfer, Power Cable				$ 240.03
538	A01517003		Terminal Block, Asmy, Wiring, Ul				$ 173.08
587	97391609832900		Board, Control, Configured, Edr12831				$ 368.69
588	136006502		Cover, Main Board, Whiteshark		Appelez-nous	-
600	136603050		Drum, Complete				$ 316.81
601	807519102		Vane, Drum, 298.3mm, Grey		Appelez-nous	-
602	809183801		Belt, Drive, L=1886.7mm				$ 50.46
603	136424300		Gasket, Drum, Back, 1683mm				$ 161.17
604	136808930		Gasket, Ft, Lg Opening, 17.5x20x1683mm			Immediately	$ 132.09
605	136655401		Cone, Agitator, Anti-entangle				$ 62.56
606	136623702		Cone, Anti-entangle, Base				$ 34.31
607	136601901		Filter, Fluff				$ 193.49
608	5304537467		Gasket, Lg Opening, Front   (Replaces: 136606311)				$ 21.54
635	125423520		Roller Asmy, Channel Drain		Appelez-nous	-
151B	405542582		Bulkhead, Rear, Plastic   (Replaces: 136604000)				$ 82.03
635A	125425004		Bushing, Support, Roller				$ 129.70
635B	124022201		Bolt, 5, 5x38				$ 43.95
635C	809166602		Cover, Metal, Roller				$ 26.76
NI	5304505408		Power Cord, Electric Svce, 240, 4-wire Canada   (Replaces: 134502300)				$ 194.62
NI	136608610		Felt, Disc, ?24/?12mm				$ 48.91

    View Diagram in Separate Window       Print Part List
