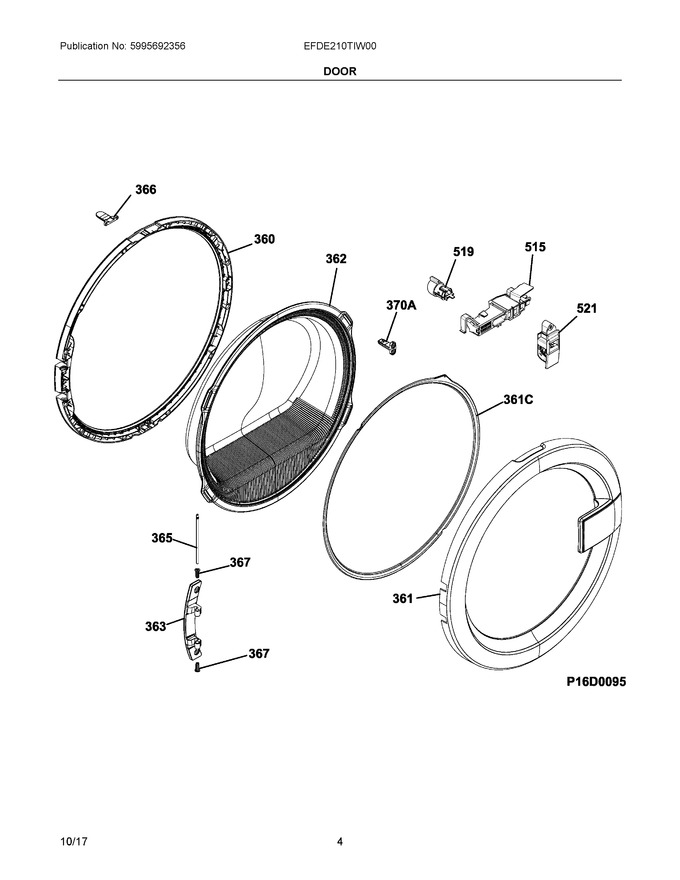

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
360	A00630807		Frame, Inner Door, 0457.4mm, White				$ 116.40
361	A00638104		Frame, Outer Door, 0458mm, White				$ 157.48
362	5304531893		Glass, Inner Door, ?413.8mm   (Replaces: A01265502)				$ 60.98
363	8581366253236		Hinge, Door, Glass   (Replaces: 136625323)		Appelez-nous	-
365	136608500		Pivot, Door Hinge				$ 43.38
366	A01757504		Tappet, Door, Ul				$ 87.71
367	136625400		Bushing, Hinge				$ 48.44
515	136611111		Switch, Door			Immediately	$ 165.66
519	136603901		Lamp, Led, 0.5w, Ul		Appelez-nous	-
521	809041101		Lock, Door   (Replaces: 809041102)				$ 14.49
361C	A02615101		Glass, Outer Door, ?414mm				$ 259.15
370A	808681114		Strike, Glass Door   (Replaces: 808681104)			Immediately	$ 21.99

    View Diagram in Separate Window       Print Part List
