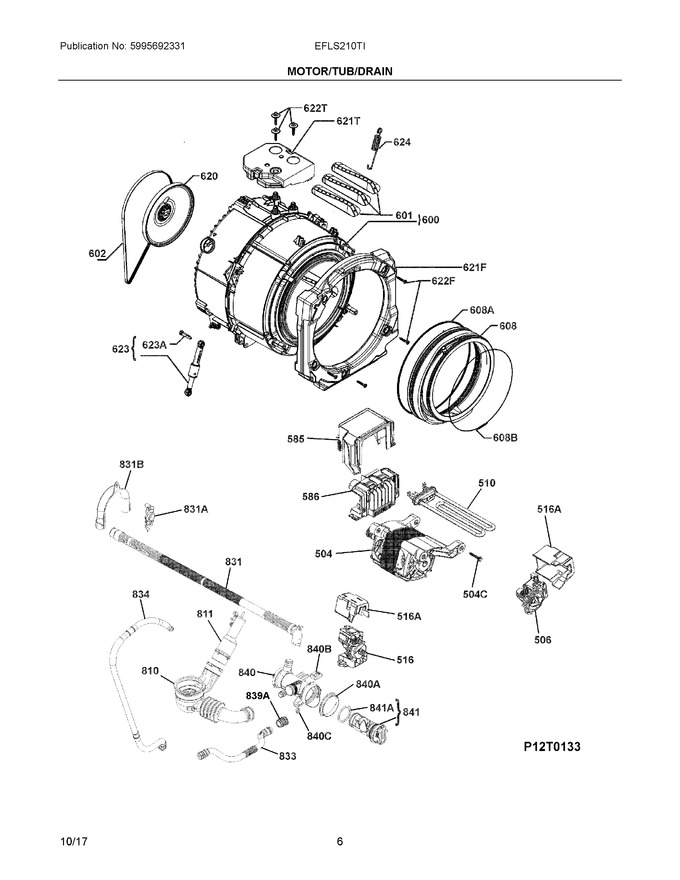

04 - Motor/tub/drain
05 - Wiring Diagram
06 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 504 | 807003902 | Motor, Induction, 195v, 300hz, 585w |
|
$ 721.37 | |||||
| 506 | 132611913 | Pump, Drain, 120v, 60hz, Ul |
|
Immediately | $ 184.55 | ||||
| 510 | 137488302 | Element, Heat W/sensor, 120v, 1000w |
|
$ 202.04 | |||||
| 516 | 132510083 | Pump, Recirc Asmy, 120v, 60hz, Ul (Replaces: 132510073) |
|
$ 172.05 | |||||
| 585 | 807026303 | Cover, Inverter, Eb |
|
- | |||||
| 586 | A01118401 | Inverter, Elect Board |
|
$ 304.84 | |||||
| 600 | 348416840 | Tub Assembly, Complete, W/inner-outer |
|
Immediately | $ 799.02 | ||||
| 601 | 405536790 | Vane Kit, (3 Pieces) |
|
Immediately | $ 66.51 | ||||
| 602 | 132353120 | Belt, Drive, Rubber, 1000/1500 Hutc |
|
Immediately | $ 156.54 | ||||
| 608 | 132724611 | Bellows, Rubber, Boot |
|
Immediately | $ 247.91 | ||||
| 620 | 5029824900 | Pulley, Drum Drive, Rear |
|
$ 213.99 | |||||
| 623 | 4055383204 | Shock Absorber, Kit, (includes Bolt) (Replaces: 405536793) |
|
- | |||||
| 624 | 132768400 | Spring, Asmy, Tub, Suspension |
|
$ 106.60 | |||||
| 810 | 132765002 | Hose, Tub To Pump (Replaces: 132765000) |
|
$ 73.02 | |||||
| 811 | 132764800 | Chamber, Air |
|
$ 51.26 | |||||
| 831 | 132771400 | Hose, Drain, Asmy, L=2540mm |
|
Immediately | $ 158.24 | ||||
| 833 | 132768601 | Hose, Recirculation, Intake |
|
Immediately | $ 72.30 | ||||
| 834 | 132756501 | Hose, Recirculation (Replaces: 132756500) |
|
Immediately | $ 63.48 | ||||
| 840 | 132765115 | Pump, Drain, Body |
|
Immediately | $ 151.87 | ||||
| 841 | 132765801 | Filter, Asmy, Diaphragm - Up To Serial No.736xxxxx |
|
$ 124.97 | |||||
| 504C | 124022201 | Bolt, 5, 5x38 |
|
$ 43.95 | |||||
| 516A | 132117601 | Cover, Recirc Pump |
|
$ 91.39 | |||||
| 608A | 132562100 | Spring, Bellows Clamp |
|
$ 125.83 | |||||
| 608B | 132556200 | Clamp, Rubber Bellows, Spring Held |
|
$ 75.27 | |||||
| 621F | 132768800 | Counterweight, Front |
|
$ 263.03 | |||||
| 621T | 132763601 | Counterweight, Upper, 8.37kg G60 |
|
$ 152.54 | |||||
| 622F | 405536791 | Screw Kit, Counterweight, Front, (5 Screws) |
|
$ 24.80 | |||||
| 622T | 405536792 | Screw Kit, Counterweight, Top, (3 Screws) |
|
- | |||||
| 623A | 132780401 | Bolt, Shock Mtng, Damper Lining (Replaces: 132780412) |
|
$ 11.57 | |||||
| 831A | 132768003 | Clamp, Hose, Drain, Back Panel |
|
Immediately | $ 61.66 | ||||
| 831B | 124291600 | Hanger, Drain Hose, Support |
|
$ 50.46 | |||||
| 839A | 5304526694 | Hose, Sealing, Circulation (Replaces: 132511300) |
|
Immediately | $ 48.61 | ||||
| 840A | 132765200 | Gasket, Pump Body, Front Panel |
|
$ 53.55 | |||||
| 840B | 132501401 | Buffer, Upper Pump Body |
|
- | |||||
| 840C | 132514200 | Compensator, Space, Fixing, Pump Body |
|
- | |||||
| 841A | A06486401 | Filter, Asmy, Diaphragm, Diamond - After Serial No.736xxxxx |
|
$ 40.19 | |||||
| 841A | 132071200 | Seal, Filter, Strain |
|
- |
