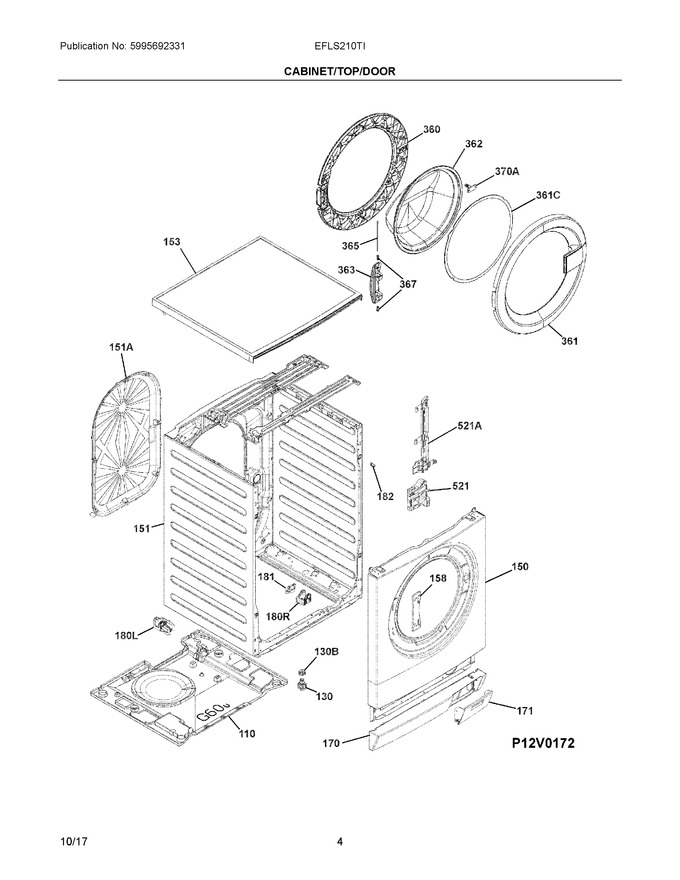

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
110	A00889001		Base, Aqua Control		Appelez-nous	-
130	132500760		Leg, Leveling, Screw				$ 101.93
150	132763321		Panel, Front, White		Appelez-nous	-
151	132774340		Panel, Back, White		Appelez-nous	-
153	132760446		Panel, Top, White				$ 242.42
158	132502201		Bracket, Hinge, Reinforcement		Appelez-nous	-
170	132764311		Panel, Bottom Front, White				$ 179.84
171	132764402		Door, Drain Access, White, Bottom Front				$ 67.33
181	132559902		Cap, Support, Cushion		Appelez-nous	-
182	132476800		Pin, Alignment				$ 27.64
360	A00923801		Panel, Inner Door, White				$ 212.54
361	A00845105		Frame, Outer Door, White				$ 230.44
362	132764000		Panel, Door, Glass			Immediately	$ 244.97
363	132766200		Hinge, Porthole				$ 142.43
365	132554120		Pin, Door Hinge				$ 43.95
367	132002600		Hinge, Bushing				$ 41.81
521	808455304		Lock, Door, 40n, 120v, 60hz			Immediately	$ 103.30
130B	110877100		Bushing, Leveling Leg				$ 107.89
151A	132504042		Panel, Service Access				$ 109.34
180L	132764600		Bracket, Shock Absorber, Left				$ 46.64
180R	132764700		Bracket, Shock Absorber, Right				$ 47.09
361C	808991901		Ring, Door Transition				$ 257.27
370A	807654201		Catch, Porthole				$ 102.92
521A	807756001		Cover, Door Lock, Latch				$ 110.35
NI	533115822		Clamp, Elec Valve, Hose		Appelez-nous	-
NI	132503902		Cap, Holes, , Rear Panel		Appelez-nous	-
NI	533118220		Clamp, 18.2		Appelez-nous	-
