SELECT A DIAGRAM

01 - Cover Sheet

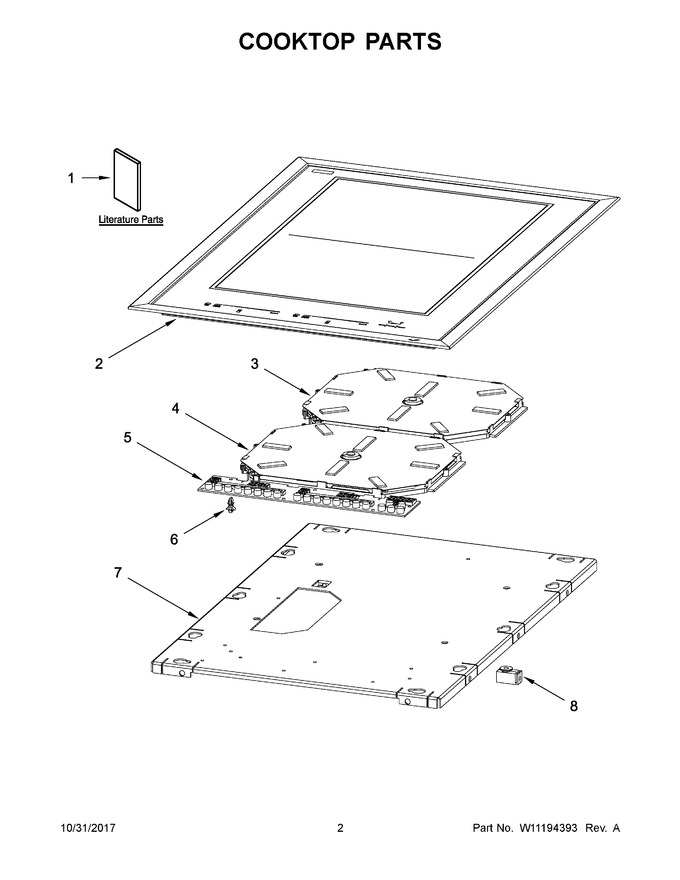

02 - Cooktop Parts


03 - Burner Box And Electrical Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11032805		Installation Instructions		Appelez-nous	-
2	W11195806		Glass, Induction (includes Frame)   (Replaces: W11195180)				$ 1,012.04
3	W11195475		Element, Induction (rear)   (Replaces: W11195131)				$ 371.89
4	W11195476		Element, Induction (front)   (Replaces: W11195135)				$ 371.89
5	W11195477		Control, Electronic   (Replaces: W11195151)				$ 538.61
6	W11195162		Standoff, Control		Appelez-nous	-
7	W11195428		Plate, Generator		Appelez-nous	-
8	W11195464		Isolator		Appelez-nous	-
1A	W11032804		Use And Care Guide		Appelez-nous	-
1B	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1C	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
