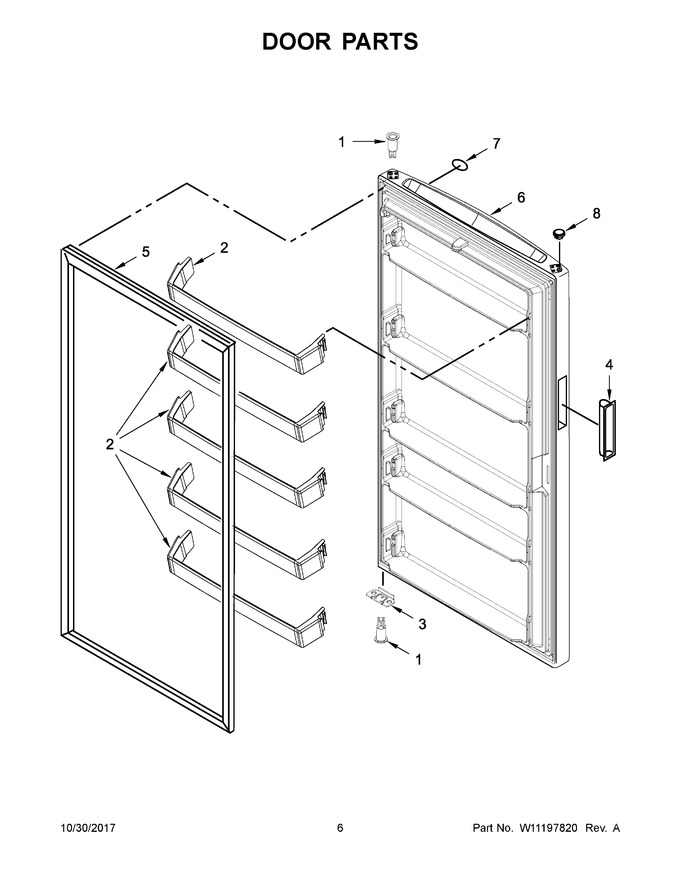

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 6.47 | |||||
| 2 | WP4-65451-001 | Rail, Door (Replaces: 4-65451-001) |
|
$ 85.58 | |||||
| 3 | W10628869 | Bracket, Door Stop |
|
$ 22.56 | |||||
| 4 | W10352523 | Handle, Door (white) |
|
$ 21.60 | |||||
| 5 | W11501317 | Gasket, Door (white) (Replaces: W10574475) |
|
Immediately | $ 254.45 | ||||
| 6 | W10746789 | Assembly, Door (white) (Replaces: W10673707) |
|
$ 657.50 | |||||
| 7 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 36.31 | ||||
| 8 | WP2212648 | Plug, Hole (white) (Replaces: 2212648) |
|
$ 7.02 |
