SELECT A DIAGRAM
01 - Body
02 - Door
03 - Gas Controls
New Model Search:

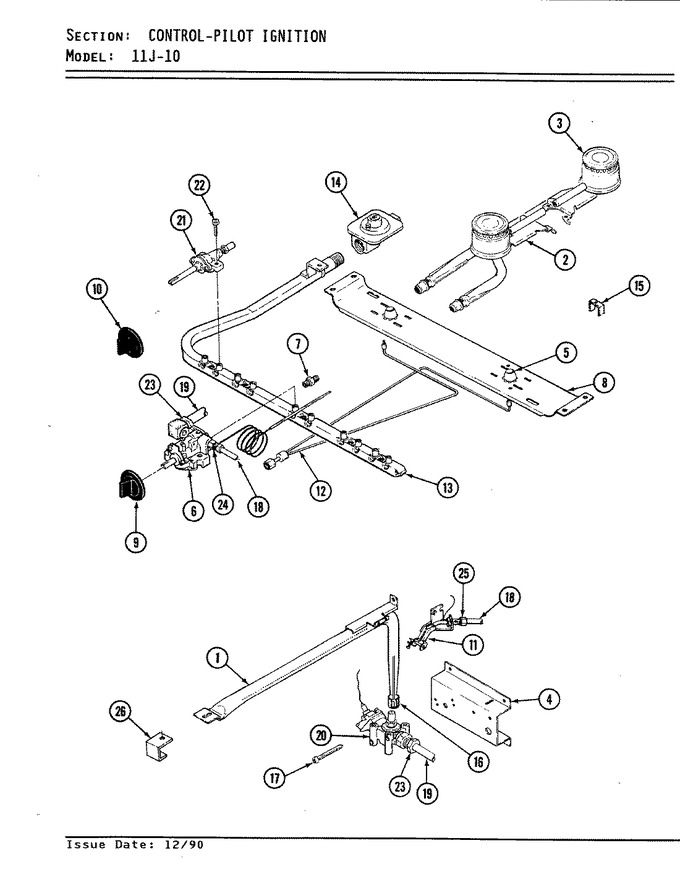

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3403A005-45 | Burner Oven Assy | 01 |
|
- | ||||
| 1 | 3403D040-45 | Burner, Oven | 17 |
|
- | ||||
| 2 | 7505P173-60 | Burner, Top (frt) | 01 |
|
- | ||||
| 3 | 7505P172-60 | Burner, Top (rear) | 01 |
|
- | ||||
| 4 | 3807F369-45 | Support, Oven Valve | 01 |
|
- | ||||
| 5 | 8030P001-60 | Cone, Top Lighter----na | 01 |
|
- | ||||
| 6 | 7515P030-60 | Thermostat | 02 |
|
- | ||||
| 6 | 7515P028-60 | Thermostat | 01 |
|
- | ||||
| 6 | 7515P033-60 | Thermostat | 14 |
|
- | ||||
| 7 | 7507P032-60 | Filter, Top Lighter | 01 |
|
- | ||||
| 7 | W10124350 | Not Required Part Or See Note Filter (incl. With No.12 Pilot) | 18 |
|
- | ||||
| 8 | 3807F353-80 | Support, Top Burner | 01 |
|
- | ||||
| 9 | 7711P394-60 | Dial, Oven Control | 01 |
|
- | ||||
| 9 | 7731P059-60 | Knob, Thermostat | 14 |
|
- | ||||
| 10 | 7733P015-60 | Knob, Valve | 01 |
|
- | ||||
| 11 | Y0L01002199 | Lighter Ov. Br. | 01 |
|
- | ||||
| 12 | 7505P073-60 | Pilot, Burner (top) | 18 |
|
- | ||||
| 12 | 7432P049-60 | Lighter, Top Burner | 01 |
|
- | ||||
| 12 | 7103P106-60 | Nut | 01 |
|
- | ||||
| 12 | 7103P128-60 | Nut, Top Pilot | 18 |
|
- | ||||
| 13 | 7513P144-60 | Pipe Manifold | 14 |
|
- | ||||
| 13 | 7513P128-60 | Pipe, Manifold | 02 |
|
- | ||||
| 13 | 7513P099-60 | Pipe Manifold | 01 |
|
- | ||||
| 14 | 7510P022-60 | Regulator Pressure | 01 |
|
- | ||||
| 15 | 3604F122-51 | Shield Top Lighter | 01 |
|
- | ||||
| 16 | 4G12401322 | Shutter Oven Burner | 01 |
|
- | ||||
| 17 | 3807F336-51 | Support, Burner | 01 |
|
- | ||||
| 18 | 3414F013-44 | Tubing, Cntrl/pilo (3/16``) | 01 |
|
- | ||||
| 19 | 3414F044-44 | Tubing, 3/8 | 01 |
|
- | ||||
| 20 | 7501P068-60 | Valve, Oven | 01 |
|
- | ||||
| 21 | 7502P168-60 | Valve, Burner | 04 |
|
- | ||||
| 21 | 7502P167-60 | Valve, Burner | 04 |
|
- | ||||
| 21 | 7502P127-60 | Valve, Top Burner | 01 |
|
- | ||||
| 21 | 7502P187-60 | Valve, Burner | 14 |
|
- | ||||
| 21 | 7502P188-60 | Valve, Burner | 14 |
|
- | ||||
| 21 | 7502P237-60 | Valve, Burner | 13 |
|
- | ||||
| 21 | 7502P238-60 | Valve, Burner | 13 |
|
- | ||||
| 21 | 7502P126-60 | Valve, Top Burner | 01 |
|
- | ||||
| 22 | 7101P043-60 | Screw, Control Valve | 01 |
|
- | ||||
| 22 | 7101P296-60 | Screw | 02 |
|
- | ||||
| 22 | 7101P010-60 | Screw, Control | 14 |
|
- | ||||
| 22 | 7101P044-60 | Screw, Valve | 14 |
|
- | ||||
| 22 | 7101P295-60 | Screw | 01 |
|
- |
