SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door

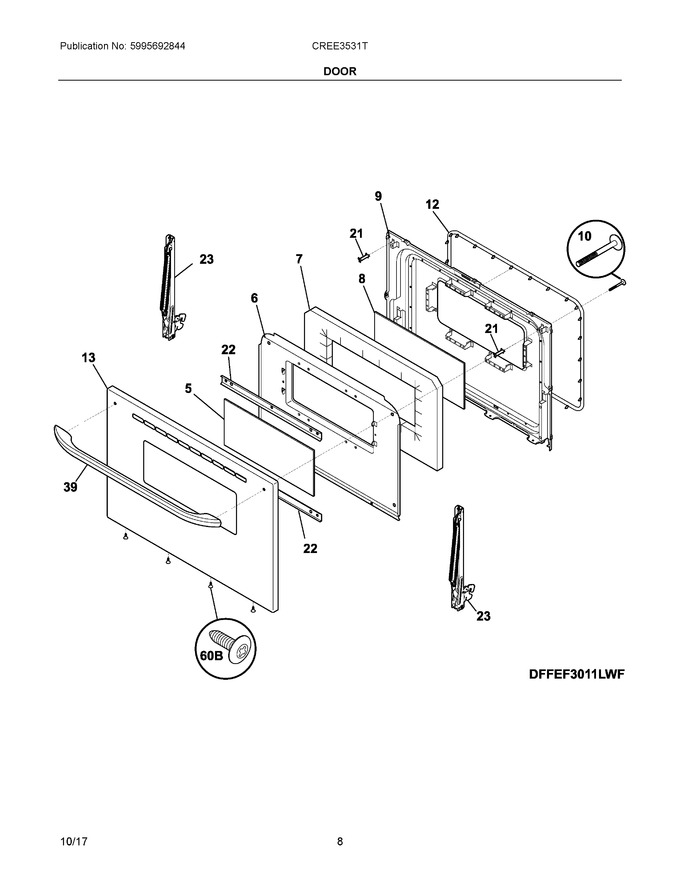

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	316458300		Glass, Oven Door, Clear, Outer		Appelez-nous	-
6	316222703		Shield, Oven Door, Wool   (Replaces: 316222709)				$ 78.67
7	316236802		Insulation, Oven Door				$ 41.63
8	5304506004		Glass, Oven Door, Inner				$ 53.81
9	316230634		Liner, Oven Door				$ 147.12
10	316278700		Screw, 10-14 X 1.365", Handle Mtg.   (Replaces: 316433301)			Immediately	$ 27.50
12	316239700		Seal, Oven Door			Immediately	$ 152.43
13	316202707		Panel, Oven Door, White				$ 123.64
21	316284101		Spacer, Door Handle, (2)		Appelez-nous	-
22	5303272476		Retainer, Glass, (2), Angle		Appelez-nous	-
23	316575921		Hinge, Oven Door, Orange			Immediately	$ 42.47
39	5304522047		Handle, Door, White   (Replaces: 5304507385)			Immediately	$ 122.63
60B	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316245600		Seal, Door, Air Gap				$ 48.67
NI	316483102		Label, Anti-tip				$ 3.56
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18

    View Diagram in Separate Window       Print Part List
