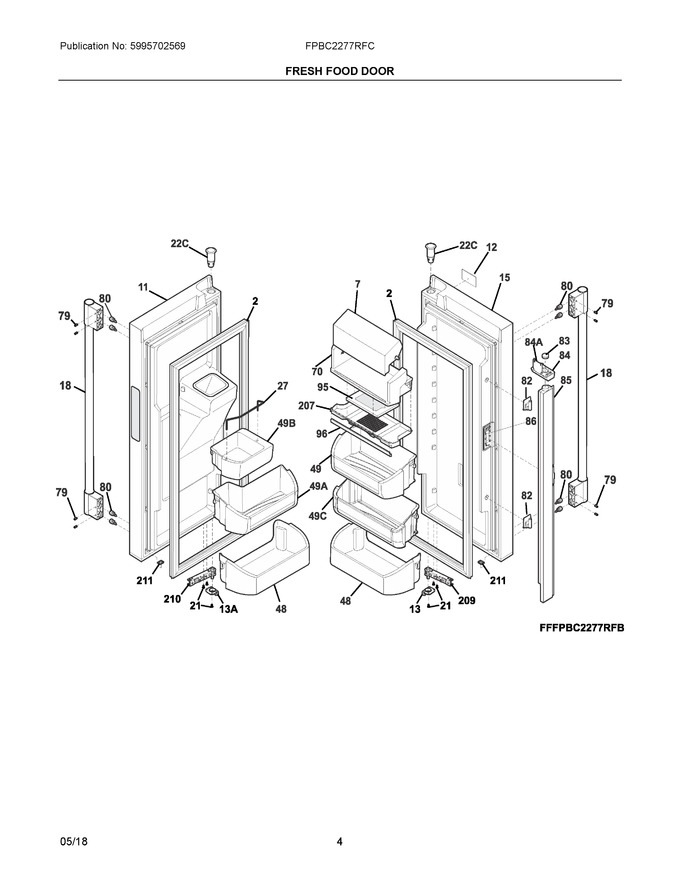

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241778315 | Gasket-refr Door, Gray, Magnetic (Replaces: 241778307) |
|
Immediately | $ 89.88 | ||||
| 7 | 242011401 | Door-dairy, Removable |
|
- | |||||
| 11 | 242185673 | Door-refr, Stainless, Lh |
|
$ 553.29 | |||||
| 12 | 809108704 | Nameplate, Frig Pro (Replaces: 809108701) |
|
Immediately | $ 44.19 | ||||
| 13 | 5304508039 | Door Stop, Assembly, Rh, W/bushing |
|
$ 22.81 | |||||
| 15 | 242185672 | Door-refr, Stainless, Rh |
|
Immediately | $ 493.43 | ||||
| 18 | 5304536767 | Handle Assembly, Stainless, W/set Screws (Replaces: 5304501174) |
|
Immediately | $ 111.76 | ||||
| 21 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 17.11 | ||||
| 27 | 241752702 | Retainer, Tall Bottle |
|
$ 39.44 | |||||
| 48 | 242071401 | Bin-door, Pseudo, White |
|
Immediately | $ 91.99 | ||||
| 49 | 242037205 | Bin-door, Gallon |
|
Immediately | $ 99.81 | ||||
| 70 | 241804604 | Compartment-dairy, Removable |
|
- | |||||
| 79 | 218755405 | Screw-set, 10-32 X 0.500 (Replaces: 218755407) |
|
Immediately | $ 20.56 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 82 | 241779401 | Hinge-mullion, Upper/lower, Flipper |
|
Immediately | $ 21.99 | ||||
| 83 | 241812202 | Magnet, Door |
|
$ 72.30 | |||||
| 84 | 808274201 | Guide-mullion, Magnet Cover, Flipper |
|
Immediately | $ 36.41 | ||||
| 85 | 242036303 | Flipper Mullion Assembly, Grey, W/heater |
|
Immediately | $ 220.47 | ||||
| 86 | 241779802 | Hinge-mullion, Center, Flipper |
|
Immediately | $ 36.73 | ||||
| 95 | EAFCBF | Filter, Air (Replaces: 242047804) |
|
Immediately | $ 27.64 | ||||
| 96 | 242048001 | Door-air Filter (Replaces: 242048005) |
|
$ 43.99 | |||||
| 207 | 242047901 | Housing-air Filter |
|
$ 80.39 | |||||
| 209 | 5304526201 | Closer Assembly, Door, Rh, Mechanical (Replaces: 5304508014) |
|
Immediately | $ 84.92 | ||||
| 210 | 5304526202 | Closer Assembly, Door, Lh, Mechanical (Replaces: 5304508015) |
|
Immediately | $ 98.34 | ||||
| 211 | 5304508077 | Bumper, Door, Bottom |
|
$ 12.13 | |||||
| 13A | 5304508038 | Door Stop, Assembly, Lh, W/bushing |
|
Immediately | $ 22.75 | ||||
| 22C | 241760401 | Bearing, Hinge, Top |
|
Immediately | $ 19.13 | ||||
| 49A | 242037202 | Bin-door, 2-liter |
|
Immediately | $ 105.44 | ||||
| 49B | 242080201 | Bin-door, Dispenser |
|
$ 53.76 | |||||
| 49C | 242079801 | Bin-door, 1/2 Gallon |
|
Immediately | $ 86.83 | ||||
| 84A | 5303918644 | Cover-mullion, Magnet Cover (Replaces: 242190501) |
|
$ 41.44 | |||||
| NI | 5303918744 | Kit, Dspnsr Heater, Dc |
|
$ 203.24 | |||||
| NI | 5304501175 | Harness, Wiring, Dispenser, To Watson Cntl. |
|
$ 38.28 | |||||
| NI | 5304500002 | Freshness Booster, Kit, Pureair |
|
- | |||||
| NI | 240451503 | Screw, Ind Hex Wshr Hd, 8-32 X 0.375, Trilobe |
|
$ 3.79 | |||||
| NIA | 242015001 | Screw, 8-18 X 1/2 |
|
Immediately | $ 16.30 | ||||
| NIA | 5304517889 | Liner-door Bin, Gallon (Replaces: 242012202) |
|
$ 65.22 | |||||
| NIA | 242040806 | Harness-wiring, Door |
|
$ 42.53 | |||||
| NIA | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| NIA | 5304508270 | Wrench, Allen, Set Screw |
|
Immediately | $ 21.34 | ||||
| NIAA | 242012002 | Liner-door Bin, 2-liter |
|
$ 83.64 | |||||
| NIB | 242068601 | Bumper, Flipper Mullion |
|
$ 14.41 | |||||
| NIB | 5304508776 | Lock Washer, External Tooth, #8 |
|
$ 4.35 | |||||
| NIC | 5304520993 | Harness-wiring, Flipper Mullion (Replaces: 241788401) |
|
Immediately | $ 41.97 | ||||
| NICA | 242080102 | Liner-door Bin, 49c*, Half Gallon |
|
$ 68.04 | |||||
| NID | 240451503 | Screw (Replaces: 242064001) |
|
$ 3.79 |
