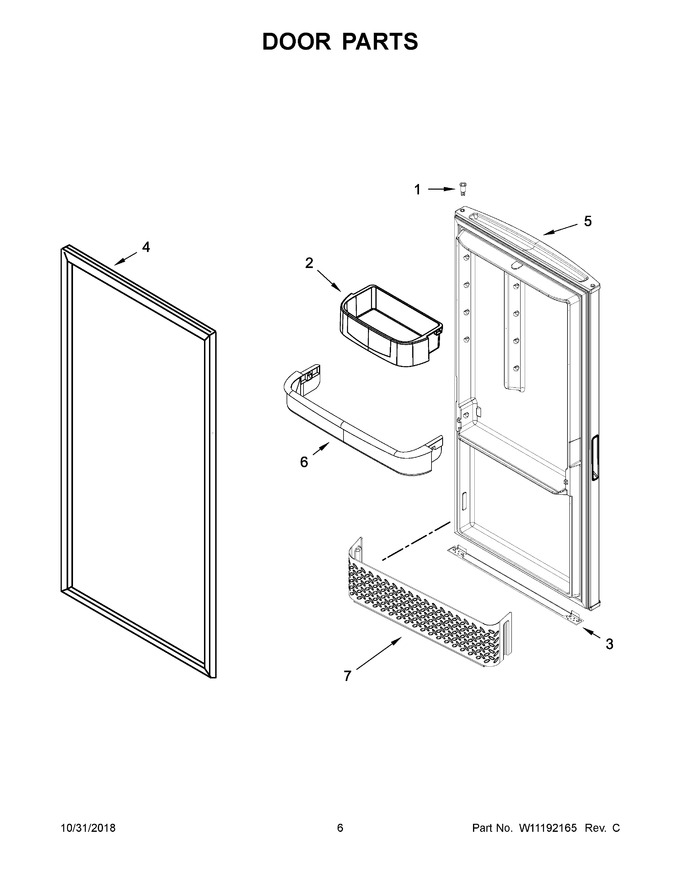

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 6.47 | |||||
| 2 | W11197063 | Bucket, Door (small) (Replaces: W11030699) |
|
$ 143.05 | |||||
| 3 | W10891103 | Stop, Door |
|
- | |||||
| 4 | W11102846 | Gasket, Door (black) |
|
$ 277.53 | |||||
| 5 | W11233211 | Door Assembly (black) (Replaces: W11102809) |
|
$ 925.51 | |||||
| 6 | 67001139 | Retainer, Door (Replaces: 12557904) |
|
Immediately | $ 89.82 | ||||
| 7 | W11309281 | Treadwall, Door (Replaces: W10882293) |
|
- | |||||
| 2A | W11197067 | Bucket, Door (medium) (Replaces: W11082376) |
|
$ 130.96 |
