SELECT A DIAGRAM
New Model Search:

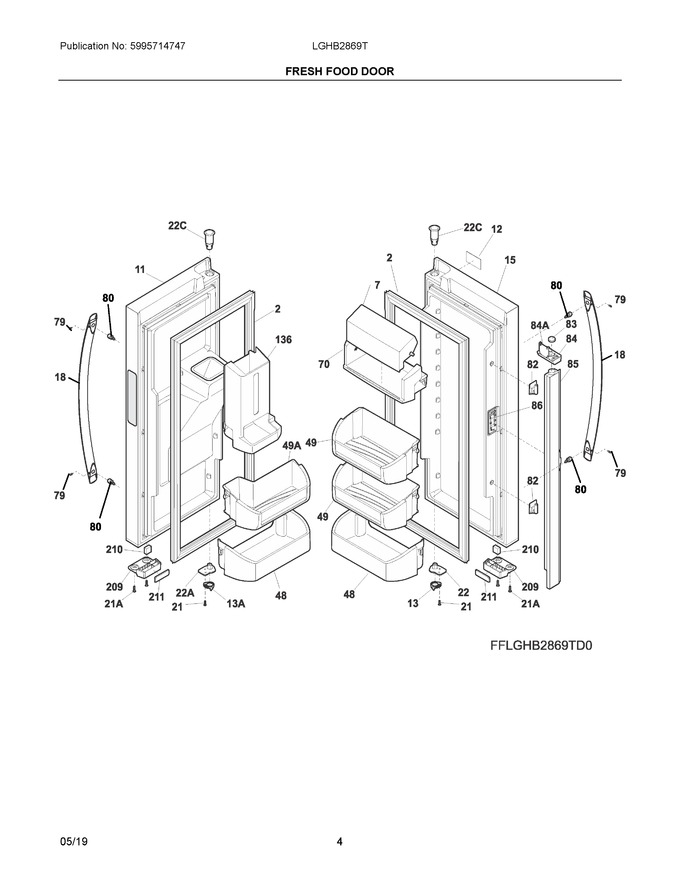

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241778315 | Gasket, Door, Gray, Fresh Food, Magnetic (Replaces: 241778307) |
|
Immediately | $ 89.88 | ||||
| 7 | 242011402 | Door-dairy, Removable |
|
- | |||||
| 11 | 807460060 | Door-refr, Stainless, 11, W/disp |
|
- | |||||
| 12 | 5304512150 | Nameplate, Chrome, Frig Gallery |
|
Immediately | $ 58.15 | ||||
| 13 | 5304508039 | Door Stop, Assembly, Rh, W/bushing |
|
$ 22.81 | |||||
| 15 | 242185670 | Door-refr, Stainless, Rh |
|
$ 480.50 | |||||
| 18 | 241930101 | Handle-door, Stainless |
|
$ 160.88 | |||||
| 21 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 17.11 | ||||
| 27 | 241752703 | Retainer, Tall Bottle |
|
$ 55.36 | |||||
| 35 | 5304508044 | Hinge Assembly, Lower, Rh, W/adj Screw |
|
$ 43.23 | |||||
| 44 | 5304453707 | Screw, Quad Hilo, #8-18 X 0.50 (Replaces: 241953901) |
|
Immediately | $ 15.92 | ||||
| 48 | 5304512643 | Bin-door, Lower |
|
Immediately | $ 92.93 | ||||
| 49 | 242079701 | Bin-door, Gallon (Replaces: 242011503) |
|
Immediately | $ 110.95 | ||||
| 70 | 241804604 | Compartment-dairy, Removable |
|
- | |||||
| 79 | 218755405 | Screw, Set, 10-32 X 0.500 (Replaces: 218755407) |
|
Immediately | $ 20.56 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 82 | 241779401 | Hinge-mullion, Upper/lower, Flipper |
|
Immediately | $ 21.99 | ||||
| 83 | 241812202 | Magnet, Door |
|
$ 72.30 | |||||
| 84 | 808274201 | Guide-mullion, Magnet Cover, Flipper |
|
Immediately | $ 36.41 | ||||
| 85 | 242036303 | Flipper Mullion Assembly, Grey, W/heater |
|
Immediately | $ 220.47 | ||||
| 86 | 241779802 | Hinge-mullion, Center, Flipper (Replaces: 241779801) |
|
Immediately | $ 36.73 | ||||
| 136 | 242071501 | Dispenser-can, White |
|
$ 177.46 | |||||
| 209 | 5304526201 | Closer Assembly, Door, Rh, Mechanical (Replaces: 5304508014) |
|
Immediately | $ 84.92 | ||||
| 210 | 5304526202 | Closer Assembly, Door, Lh, Mechanical (Replaces: 5304508015) |
|
Immediately | $ 98.34 | ||||
| 211 | 5304508077 | Bumper, Door, Bottom |
|
$ 12.13 | |||||
| 13A | 5304508038 | Door Stop, Assembly, Lh, W/bushing |
|
Immediately | $ 22.75 | ||||
| 22C | 241760401 | Bearing, Hinge, Top, Lh Door |
|
Immediately | $ 19.13 | ||||
| 49A | 242071301 | Bin-door, 2 Liter (Replaces: 242071303) |
|
Immediately | $ 102.40 | ||||
| 49B | 242011701 | Bin-door, Dispenser |
|
$ 51.38 | |||||
| 84A | 5303918644 | Cover-mullion, Magnet Cover (Replaces: 242190501) |
|
$ 41.44 | |||||
| NI | 5304521784 | Harness-wiring, Door (Replaces: 242040804) |
|
$ 61.43 | |||||
| NI | 242015001 | Screw, 8-18 X 1/2 |
|
Immediately | $ 16.30 | ||||
| NI | 240451503 | Screw, Ind Hex Wshr Hd, 8-32 X 0.375, Trilobe |
|
$ 3.79 | |||||
| NI | 5303918744 | Kit, Dspnsr Heater, Dc |
|
$ 203.24 | |||||
| NI | 241806601 | Connector, Water Tube, 5/16 To 5/16, Straight (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NIA | 5304517889 | Liner-door Bin, Gallon (Replaces: 242012202) |
|
$ 65.22 | |||||
| NIA | 242068601 | Bumper, Flipper Mullion |
|
$ 14.41 | |||||
| NIA | 5304508270 | Wrench, Allen, Set Screw |
|
Immediately | $ 21.34 | ||||
| NIA | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| NIAA | 242012002 | Liner-door Bin, 2 Liter, L Shaped |
|
$ 83.64 | |||||
| NIB | 5304508776 | Lock Washer, External Tooth, #8 |
|
$ 4.35 | |||||
| NIB | 5304520993 | Harness-wiring, Flipper Mullion (Replaces: 241788401) |
|
Immediately | $ 41.97 | ||||
| NIC | 240451503 | Screw (Replaces: 242064001) |
|
$ 3.79 |
