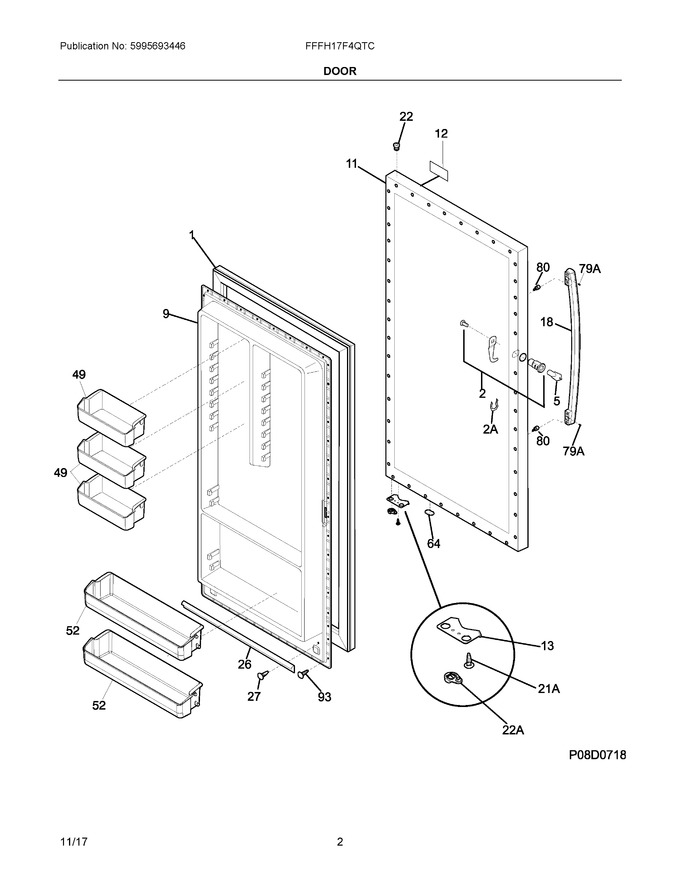

02 - Door


03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505530		Gasket, Gray			Immediately	$ 151.19
2	297318600		Lock Assy				$ 36.87
5	297147700		Key, Lock			Immediately	$ 7.57
9	297382600		Panel-inner Door, Frzr				$ 207.67
11	297352762		Panel, Outer Door				$ 630.09
12	242016301		Nameplate, Frigidaire   (Replaces: 297434600)				$ 4.26
13	297416200		Door Stop				$ 15.90
18	5304497631		Handle, Assy   (Replaces: 5304498701)				$ 160.18
22	216970802		Bearing, Hinge, Natural, Top			Immediately	$ 10.85
26	297387100		Gasket, Secondary				$ 19.52
27	5303212828		Clip, Panel Mtg				$ 16.63
41	240578902		Screw, Hex Head, 1/4-20x5/8, Hinge   (Replaces: 297236250)			Immediately	$ 14.18
49	A00299203		Bin-door   (Replaces: 5304500224)				$ 80.33
52	5304510193		Bin, Full				$ 73.57
64	297014702		Plug-button, Door Base				$ 9.41
80	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 18.60
93	216858001		Screw, Ph Truss Head, 8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
21A	297197500		Screw, Door Stop Mtg, Fh38-16x.750, P Twin				$ 14.46
22A	297415900		Ramp, Door Closer			Immediately	$ 24.74
2A	297213300		Clip, Spring				$ 10.17
79A	297295900		Screw-set			Immediately	$ 19.52
NI	216858001		Screw, 8-18x.50 Ab, #10			Immediately	$ 10.85
NI	240537301		Nut-anchor, Door Hdl Screw				$ 11.34
NI	297410600		Screw, 8-18 X .500			Immediately	$ 3.55
NI	240494001		Plug-button, White, Cab Liner Holes			Immediately	$ 18.20
NIA	5304521296		Handle-door, Install Kit, White   (Replaces: 297429100)				$ 51.34
NIA	5304406520		Clip, Panel Mtg Kit, (40)				$ 125.83
