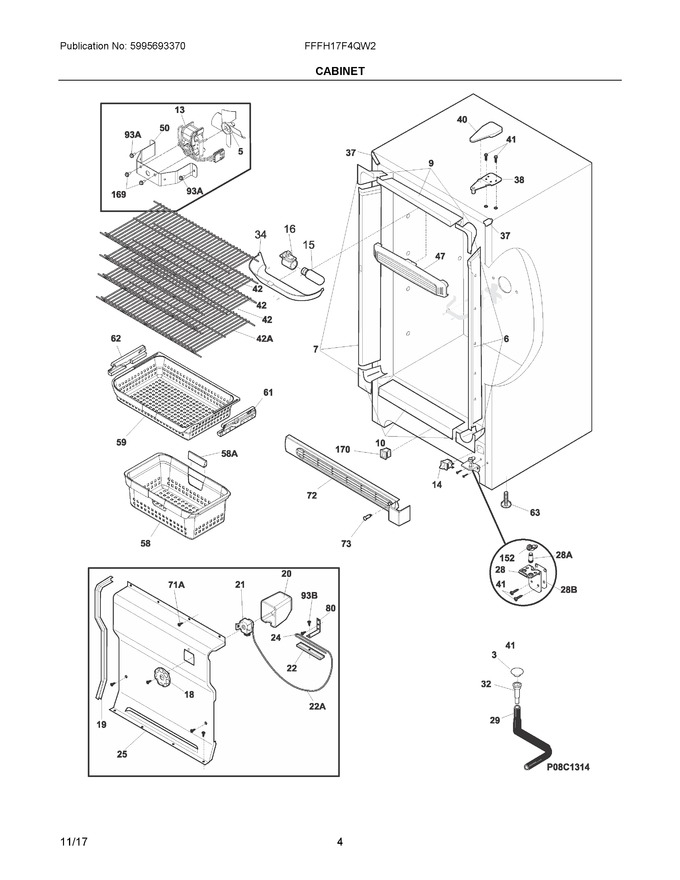

SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
5	297437300		Fan Blade				$ 7.46
6	297435601		Breaker				$ 45.32
7	297435600		Breaker, W/lock				$ 39.55
9	297403901		Breaker, Top				$ 55.42
10	297403902		Breaker, Bottom				$ 60.82
11	297334500		Heater-drain Pan				$ 72.30
12	242062801		Nameplate, White				$ 11.65
13	297309000		Fan Motor Evap 115v			Immediately	$ 55.32
14	216822900		Switch, Light/lamp, Ramp			Immediately	$ 70.16
15	5304517886		Light, Led   (Replaces: 5304495326)			Immediately	$ 73.06
16	297139501		Socket, Light/lamp, 25 W				$ 19.52
18	216707200		Knob, Temp Control				$ 44.10
19	216204902		Gasket-evap Cover			Immediately	$ 35.74
20	216967201		Cover, Temp Control				$ 15.18
21	5304501379		Control-temperature		Appelez-nous	-
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
24	5304460604		Screw, Type A, 10-24 X 3/8		Appelez-nous	-
25	297099250		Cover-evaporator				$ 111.25
26	297415900		Ramp, Door Closer			Immediately	$ 24.74
28	297416301		Hinge, Reversible, Bottom Rh				$ 15.18
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 15.90
32	5304511843		Drain   (Replaces: 297382000)				$ 13.74
34	297184400		Shield-light				$ 21.16
37	297273904		Trim-cabinet Corner, White, (2)				$ 7.59
38	297283803		Hinge-upper			Immediately	$ 19.52
40	297164400		Cover-hinge, White				$ 12.65
41	240578902		Screw, Hex Head, 1/4-20x5/8, Hinge   (Replaces: 297236250)			Immediately	$ 14.18
42	5304528979		Shelf, 14.62 X 23.88, Wire   (Replaces: 297441905)			Immediately	$ 87.19
47	297192903		Baffle, Air			Immediately	$ 25.31
50	216394050		Bracket, Fan Motor Mount				$ 22.75
58	808618002		Basket, Lower				$ 123.89
59	808617902		Basket				$ 123.89
61	5304493996		Support, Hanging Basket, Rh		Appelez-nous	-
62	5304493997		Support, Hanging Basket, Lh		Appelez-nous	-
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
72	297387921		Grille/kickplate, W/sig Light   (Replaces: 297387909)				$ 60.96
73	5304495394		Light Signal, Round, Green			Immediately	$ 28.20
80	6594601		Bracket, Control		Appelez-nous	-
93	216858001		Screw, 8-18x.50 Ab, #10			Immediately	$ 10.85
152	5304511026		Closer, Bearing Hinge   (Replaces: 297416000)			Immediately	$ 10.13
169	216912401		Screw, Hex Washer Head, 8-32 X 0.500, Bracket Fan Mtr, (2)				$ 12.76
170	297280400		Valve, Breather				$ 10.13
11A	297177400		Bracket, (2), Drain Pan		Appelez-nous	-
22A	5303916855		Tube, Sensor Sleeve, Plastic, Clear				$ 60.96
28A	297438300		Pin, Bottom Hinge				$ 7.23
29A	5304510353		Hose, Drain, 17.8 Inch				$ 14.61
31A	297165802		Pan-drain				$ 55.86
42A	297441901		Shelf, 14.50 X 23.88, Wire				$ 96.16
59A	216486500		Stop-basket, (2)				$ 20.58
71A	297146820		Screw, 8-18ab X.470 Qx				$ 7.33
93A	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.03
93B	216036601		Screw, Rwhd, 8-32a X 0.500, Gx-ca				$ 13.65
NI	125963-48		Insulation, 24", Suction Line   (Replaces: 297001704)			Immediately	$ 59.16
NI	30534600		Clip, Wire   (Replaces: 5303313703)				$ 3.79
NI	216502400		Grommet-shelf Mtg				$ 16.63
NI	5304496283		Grommet, Shelf Mtg				$ 9.22
NI	297410600		Screw, 8-18 X .500			Immediately	$ 3.55
NI	216337701		Screw, Hwh, 10-24 X 0.500, Swage				$ 14.41
NI	5304498525		Service Data Sheet		Appelez-nous	-
NI	5304503155		Use & Care Guide		Appelez-nous	-
NI	5304508302		Energy Guide		Appelez-nous	-
NIA	5304511026		Hinge Bearing, Reversible			Immediately	$ 10.13
NIA	297164650		Bracket, Lh Leg Levelor				$ 18.43
NIB	297164651		Bracket, Rh Leg Levelor				$ 17.51
