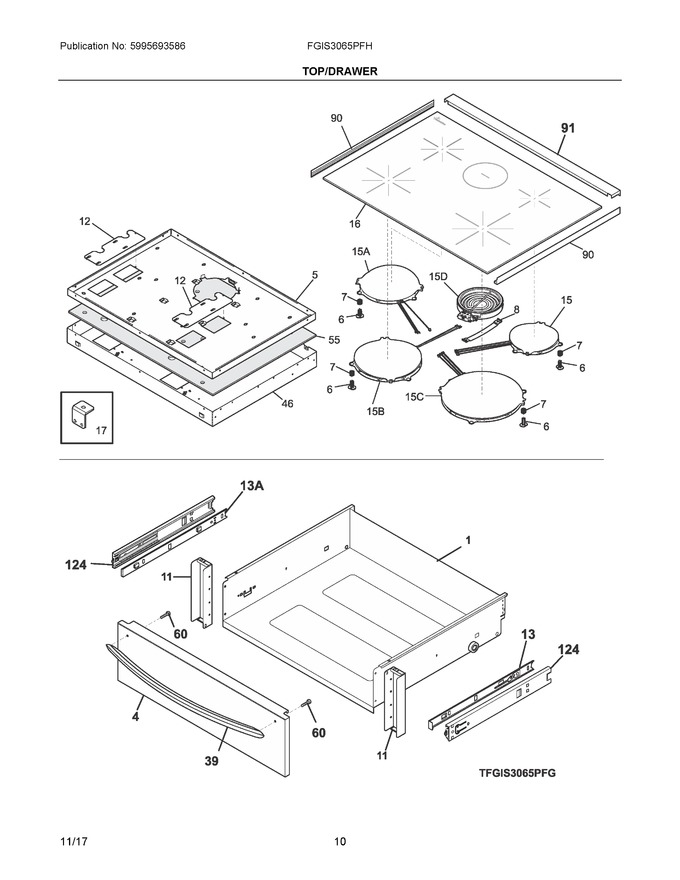

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318107317		Drawer, Black				$ 144.09
4	318298829		Panel, Drawer, Stainless, Front   (Replaces: 318298826)				$ 210.92
5	5304496624		Panel, Mounting		Appelez-nous	-
6	318405000		Pin, Guide, Elements, (12)				$ 19.38
7	318534300		Spring, Guide Pin, (12)				$ 7.09
8	318122006		Spring, Element Mtg, Small				$ 66.25
11	318298600		Bracket, Drawer Support, (2)				$ 62.69
12	318577901		Shield, Emi		Appelez-nous	-
13	318259504		Glide, Warmer, Inner Rh				$ 29.49
15	318329241		Element, Induction Coil, 140mm				$ 229.03
16	5304511209		Smoothtop Assembly, Glass, Black				$ 527.49
17	318589400		Bracket, Top Latch, (2)				$ 28.04
39	316554010		Handle, Door/drawer, Stainless   (Replaces: 316554008)			Immediately	$ 168.44
46	5304496623		Box, Burner				$ 215.88
55	808318403		Insulation, Service Panel		Appelez-nous	-
60	5303288572		Screw-handle Mtg		Appelez-nous	-
90	318368001		Channel, Glass Protector, (2)				$ 22.98
91	5304530475		Trim, Filler, Black, Rear   (Replaces: 318304303)			Immediately	$ 78.11
124	318330600		Glide, Drawer, Outer/rh & Lh, (2)				$ 77.97
13A	318259505		Glide, Warmer, Inner Lh				$ 33.03
15A	318329242		Element, Induction Coil, 180mm				$ 268.46
15B	318329243		Element, Induction Coil, 210mm				$ 312.44
15C	318329244		Element, Induction Coil, 260mm				$ 363.59
15D	140273621015		Element, Surface, Warmer, 100 W   (Replaces: 316289800)			Immediately	$ 35.77
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	5304517793		Harness, Wiring, Generator   (Replaces: 807616508)				$ 65.92
NI	5303325170		Nut, Keps, 8-32, (2)		Appelez-nous	-
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
