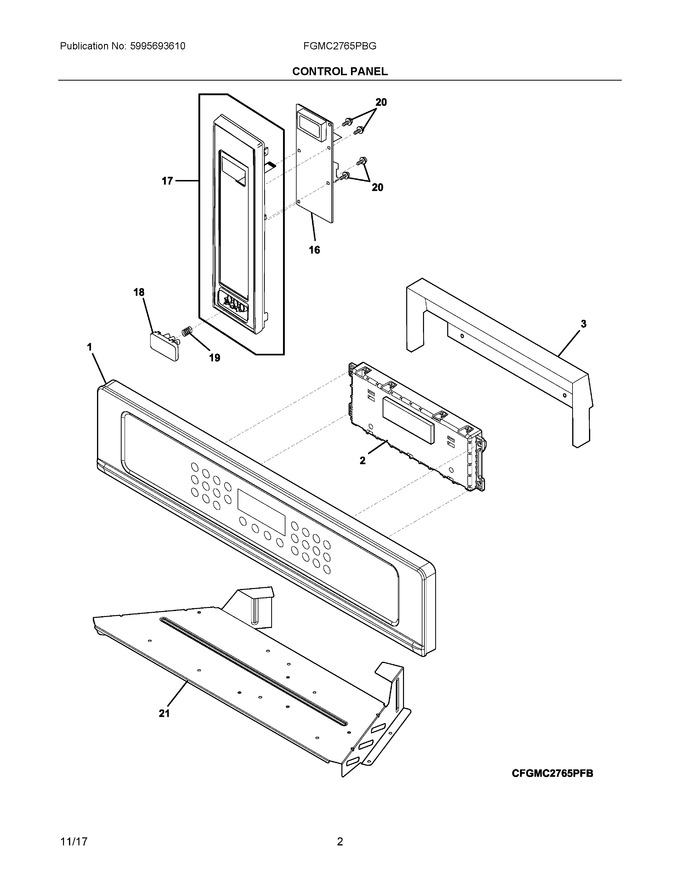

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	139038807		Control Panel Assembly, Steel/glass, Black, W/touch Pad		Appelez-nous	-
2	5304506982		Controller, Electronic, Es530w6		Appelez-nous	-
3	807586802		Deflector, Timer		Appelez-nous	-
16	5304474853		Control Board, Assembly, Microwave				$ 396.16
17	5304493446		Control Panel Assembly, Black		Appelez-nous	-
18	5304440827		Push Button, Door, Black		Appelez-nous	-
19	5304440831		Spring, Door Button				$ 20.29
20	5304456930		Screw, 3 Mm X 6 Mm		Appelez-nous	-
21	139028000		Bracket, Mounting				$ 63.00
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NIA	5304453707		Screw, 8-18 X 1/2			Immediately	$ 15.92

    View Diagram in Separate Window       Print Part List
