SELECT A DIAGRAM

01 - Cover Sheet

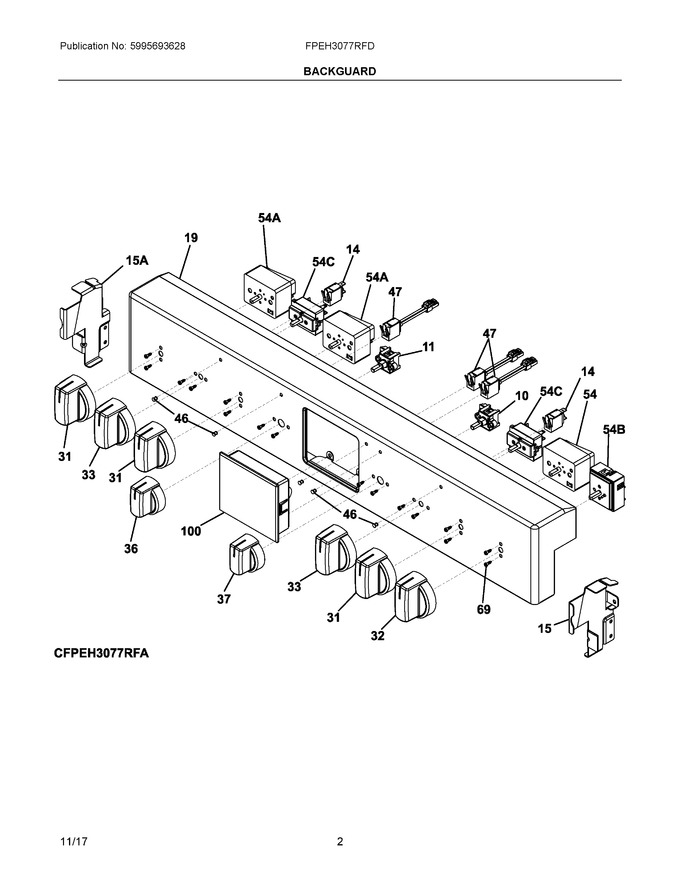

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	808843105		Potentiometer, Oven Temp				$ 155.61
11	5304493649		Potentiometer, Oven Mode			Immediately	$ 71.59
14	316022500		Light/lamp, Indicator, Black, 125 V			Immediately	$ 53.57
15	5304500132		Bracket, Control Panel, Rh				$ 24.68
19	809103501		Panel, Control, Stainless				$ 275.52
31	5304502427		Knob, Switch, Stainless, Single				$ 124.03
32	5304502428		Knob, Switch, Stainless, Dual				$ 120.49
33	5304502429		Knob, Switch, Stainless, Warm Zone			Immediately	$ 139.63
36	809137901		Knob, Selector, Oven				$ 122.86
37	809137902		Knob, Temperature, Oven				$ 138.02
46	316557300		Lens-light/lamp, Indicator, Clear			Immediately	$ 16.77
47	316022508		Light/lamp, Indicator, Blue, Oven				$ 27.30
54	316436000		Switch, Infinite, Small Element			Immediately	$ 80.34
69	5303288565		Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg				$ 3.12
100	808751522		Control Assembly, Complete, Hmi   (Replaces: 808751514)			Immediately	$ 896.62
15A	5304500133		Bracket, Control Panel, Lh				$ 23.39
54A	316436001		Switch, Infinite, Large Element			Immediately	$ 51.68
54B	316238201		Switch, Infinite Radian, Dual			Immediately	$ 89.00
54C	5304537897		Switch-infinite, Warmer Drw/zone   (Replaces: 316471601)			Immediately	$ 36.11
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5304517680		Harness, Wiring, Backguard Cntl   (Replaces: 5304502431)				$ 46.41
NI	5304517734		Harness, Wiring, Communication, Pcb   (Replaces: 5304500175)				$ 45.50
NI	5304520785		Harness, Wiring, Inf. Switches   (Replaces: 5304500179)				$ 134.67
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
