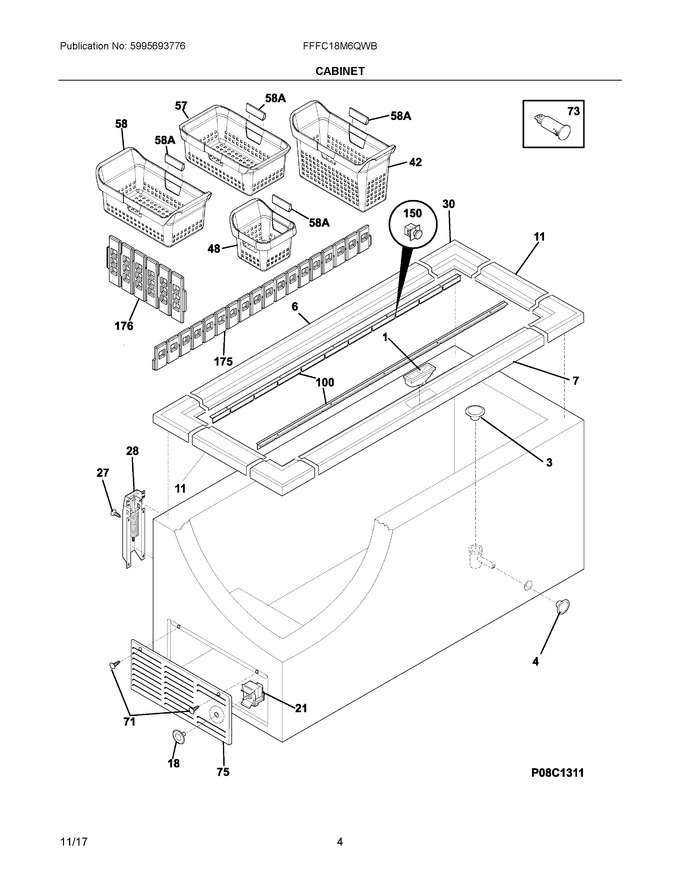

SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216954500		Catch-lock				$ 19.16
3	216502600		Plug, Drain, Interior			Immediately	$ 17.35
4	297013600		Plug, Drain, Exterior				$ 9.98
6	5304493712		Breaker, W/o Lock		Appelez-nous	-
7	5304493975		Breaker, W/lock				$ 42.68
11	5304493668		Breaker, White, Chest End				$ 16.22
18	216707200		Knob, Temp Control				$ 44.10
21	297216043		Control-temperature   (Replaces: 297216036)				$ 49.16
27	216629601		Screw, Hex Washer Head, 10-16 X 0.500, Tapping				$ 13.01
28	297322000		Hinge Assy				$ 109.15
30	5304495365		Breaker, White, Corners				$ 19.14
42	808695401		Basket, Pizza, White   (Replaces: 808695402)				$ 156.21
48	808702401		Basket, 1/2 Hanging, White   (Replaces: 808702402)				$ 91.58
57	297404203		Basket, Chest, White, Lower				$ 75.71
58	297404101		Basket, Chest, White, Upper   (Replaces: 297404103)				$ 129.47
71	5303302714		Screw, #8-18 X .75		Appelez-nous	-
73	5304495394		Light Signal, Round, Green			Immediately	$ 28.20
75	216034301		Panel, Access, White				$ 103.01
100	297424803		Track, Basket		Appelez-nous	-
150	216997400		Support, Track-basket				$ 10.61
175	297404404		Divider, Chest				$ 61.72
176	297404700		Divider, Chest, Center				$ 59.96
58A	5304503565		Clip Handle, Assembly				$ 73.03
NI	216858001		Screw, 8-18x.50 Ab, #10			Immediately	$ 10.85
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
NI	5304503155		Use & Care Guide		Appelez-nous	-
NI	5304508323		Energy Guide		Appelez-nous	-
NI	5304498526		Service Data Sheet		Appelez-nous	-
NI	30534600		Clip, Wire   (Replaces: 5303313703)				$ 3.79

    View Diagram in Separate Window       Print Part List
