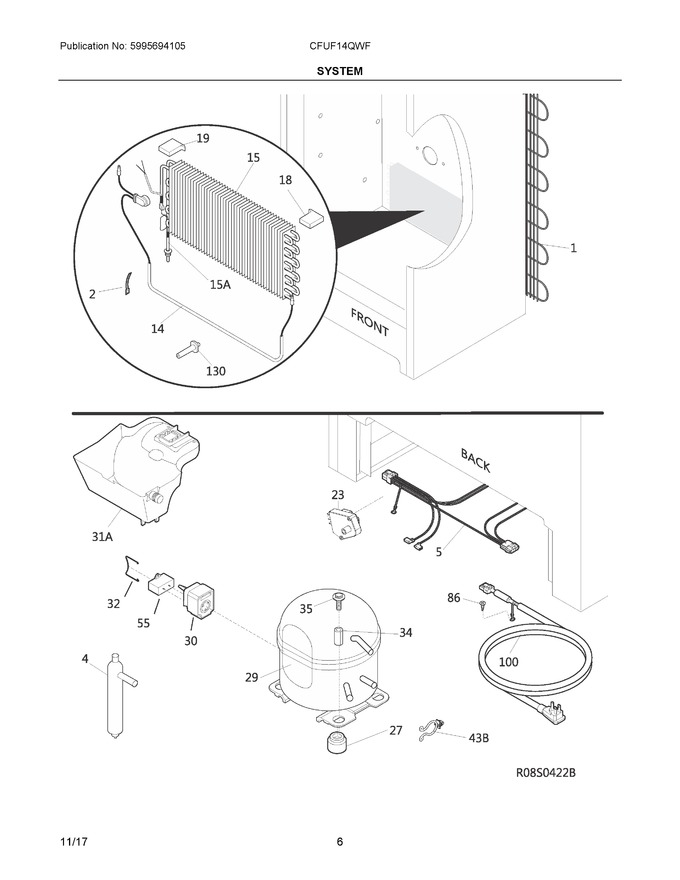

04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300083897		Condenser				$ 538.37
2	5308000110		Strap-evap/heater, Aluminum, (2)			Immediately	$ 59.82
4	5303305677		Filter-dryer   (Replaces: 297396820)			Immediately	$ 31.67
5	5304496631		Harness, W/sig Lt				$ 86.48
14	5304496687		Heater-defrost				$ 97.81
15	297414800		Evaporator				$ 145.30
18	297078701		Insulator-evap, Styrofoam, Rh				$ 3.62
19	297078801		Insulator-evap, Styrofoam, Lh				$ 3.62
21	5304509570		Control-temperature		Appelez-nous	-
23	5304518034		Timer, Defrost, 115v, Tab   (Replaces: 297318010)			Immediately	$ 57.55
27	297368501		Bolt, Compressor				$ 4.96
29	297414056		Compressor, Dgk51c		Appelez-nous	-
30	297259517		Controller, Compressor		Appelez-nous	-
32	216954300		Clip, Controller				$ 17.01
34	5304511843		Sleeve				$ 13.74
35	297368500		Bolt, Compressor		Appelez-nous	-
55	297286812		Capacitor-run, 250 Va, 12 Mf   (Replaces: 297286802)			Immediately	$ 11.78
86	216036601		Screw, Rwhd, 8-32a X 0.500, Gx-ca				$ 13.65
100	297366806		Cord, Power				$ 111.14
130	297244700		Support, Evaporator Mtg				$ 4.26
15A	297348600		Heat Exchanger				$ 120.74
31A	297217003		Pan-drain		Appelez-nous	-
43B	297315800		Clip, Wire				$ 10.13
NI	5304485759		Tape, Foil   (Replaces: 216737600)				$ 0.71
NI	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.03
NI	125963-48		Insulation, 24", Suction Line   (Replaces: 297001704)			Immediately	$ 59.16
NI	216337701		Screw, Hwh, 10-24 X 0.500, Swage				$ 14.41
NIA	240555002		Screw-#8-32 X 3/8			Immediately	$ 13.46
