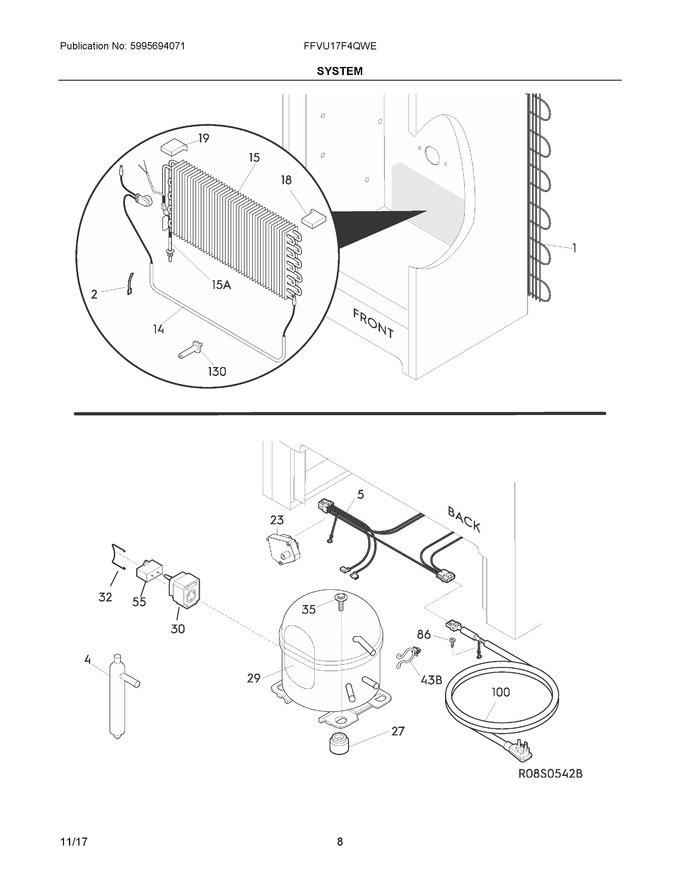

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300083897		Condenser				$ 538.37
2	5308000110		Strap-evap/heater, Aluminum, (2)			Immediately	$ 59.82
4	5303305677		Filter-dryer   (Replaces: 297396820)			Immediately	$ 31.67
5	297170200		Harness-main				$ 78.13
14	5304497251		Heater Assembly, Defrost, W/thermostat				$ 80.96
15	297414901		Evaporator   (Replaces: 297414900)			Immediately	$ 171.34
18	297078701		Insulator-evap, Styrofoam, Rh				$ 3.62
19	297078801		Insulator-evap, Styrofoam, Lh				$ 3.62
23	5304518034		Timer, Defrost, 115v, Tab   (Replaces: 297318010)			Immediately	$ 57.55
27	297368501		Bolt, Compressor				$ 4.96
29	5304507766		Compressor, Dgk57c88rpu   (Replaces: 297414055)				$ 810.08
30	297259515		Controller, Compressor				$ 74.42
32	216954300		Clip, Controller				$ 17.01
34	5304511843		Sleeve				$ 13.74
35	216273000		Clip, Wire Retainer				$ 22.42
55	297286812		Capacitor-run, 250 Va, 12 Mf   (Replaces: 297286802)			Immediately	$ 11.78
86	216036601		Screw, Rwhd, 8-32a X 0.500, Gx-ca				$ 13.65
100	297366805		Cord, Power   (Replaces: 297366804)				$ 68.68
130	297244700		Support, Evaporator Mtg				$ 4.26
15A	297217900		Heat Exchanger, Suct/cap Tube			Immediately	$ 91.82
43B	297315800		Clip, Wire				$ 10.13
NI	240555002		Screw-#8-32 X 3/8			Immediately	$ 13.46
NI	125963-48		Insulation, 24", Suction Line   (Replaces: 297001704)			Immediately	$ 59.16
NI	297014500		Plug-suction Line		Appelez-nous	-
NI	5304485759		Tape, Foil   (Replaces: 216737600)				$ 0.71
NI	216858001		Screw, 8-18x.50 Ab, #10			Immediately	$ 10.85
NI	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.03
