01 - Cover Sheet

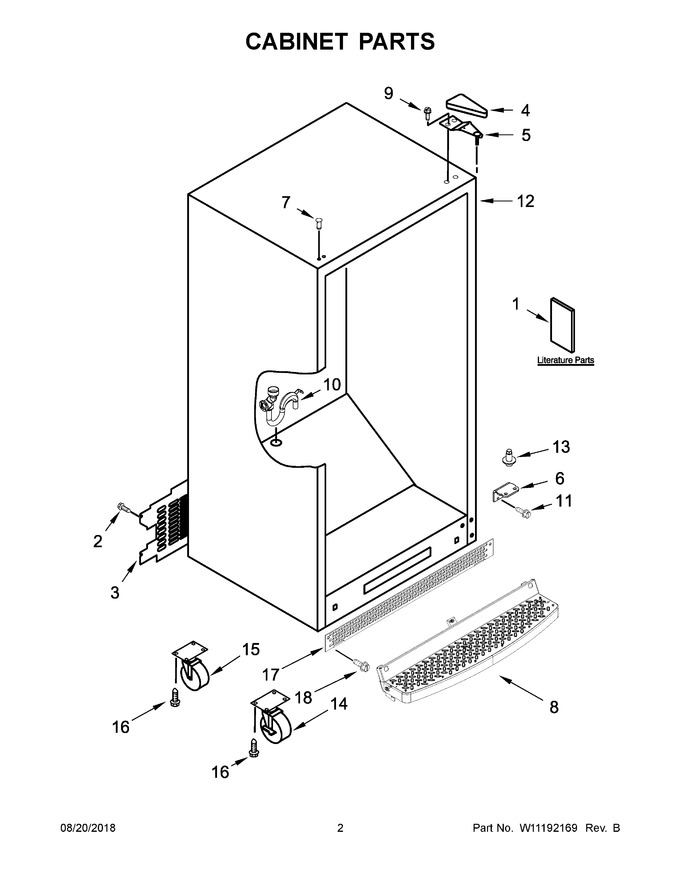

02 - Cabinet Parts
03 - Liner Parts
04 - Door Parts
05 - Unit Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11102841 | Energy Guide |
|
- | |||||
| 2 | W11233072 | Screw (Replaces: 3-80732-014) |
|
Immediately | $ 12.62 | ||||
| 3 | W10574323 | Cover, Unit |
|
$ 79.88 | |||||
| 4 | WP2213363 | Cover, Hinge (black) (Replaces: 2213363) |
|
Immediately | $ 16.39 | ||||
| 5 | WP2261963 | Assembly, Top Hinge (Replaces: 2261963) |
|
Immediately | $ 89.51 | ||||
| 6 | W11102844 | Plate, Bottom Hinge (hammer Granite) |
|
- | |||||
| 7 | WPW10520305 | Plug, Hole (black) (Replaces: W10520305) |
|
$ 16.44 | |||||
| 8 | W11199807 | Assembly, Pedal (Replaces: W10897311) |
|
- | |||||
| 9 | WP489497 | Screw (Replaces: 3400113) |
|
Immediately | $ 26.18 | ||||
| 10 | W11673435 | Tube, Drain (Replaces: W10717194) |
|
Immediately | $ 43.70 | ||||
| 11 | 67006564 | Screw (Replaces: W10709365) |
|
Immediately | $ 6.92 | ||||
| 12 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 13 | W11676609 | Pin, Lower Hinge (Replaces: W10574325) |
|
$ 12.76 | |||||
| 14 | WP8204601 | Caster, Swivel 5 (Replaces: 8204601) |
|
$ 72.78 | |||||
| 15 | W10741533 | Caster, Rigid 5" (with Brake) (left Hand) (Replaces: 8211251) |
|
- | |||||
| 16 | WP3400527 | Screw (Replaces: 3400527) |
|
$ 6.77 | |||||
| 17 | W11199697 | Grill, Toe (Replaces: W10891102) |
|
$ 96.70 | |||||
| 18 | WPW10308489 | Screw (grey) (Replaces: W10308489) |
|
Immediately | $ 7.01 | ||||
| 15A | 8211250 | Caster, Rigid 5" (with Brake) (right Hand) |
|
$ 38.24 | |||||
| 1A | W10653921 | Tech Sheet |
|
- |
