SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body

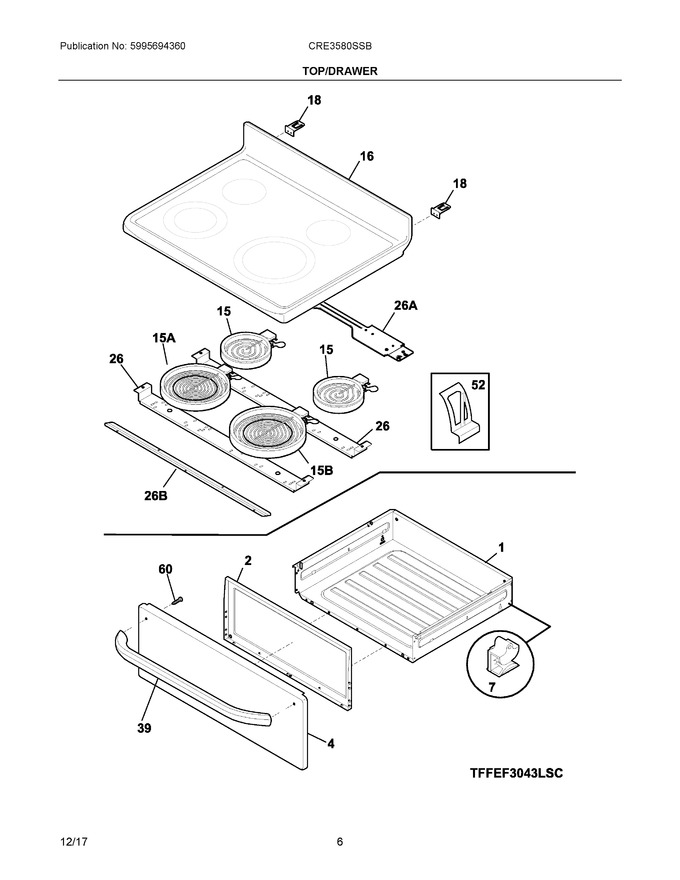

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer, Utility			Immediately	$ 110.61
2	5304511288		Liner, Drawer   (Replaces: 316284800)				$ 57.64
4	5303935272		Drawer Panel Assy, Outer, Stainless, W/overlay, W/tape				$ 162.33
7	316407402		Glide, Drawer, Rear   (Replaces: 316407400)			Immediately	$ 9.86
15	318178110		Element, Surface, 6", 1200, (2), Radiant			Immediately	$ 122.86
16	316531948		Maintop, Steel/glass, Black				$ 497.94
18	316580800		Bracket-hinge, Main Top			Immediately	$ 9.86
26	5304500986		Channel, Element Support, (2)				$ 41.68
39	5304509553		Handle, Door, Stainless		Appelez-nous	-
52	316461700		Clip, Element Mtg				$ 12.05
15A	316135401		Element, Surface, 9", 2500 W, Radiant			Immediately	$ 80.96
15B	316555800		Element, Dual, 9"/6", Surface, 1300w/1200w, (2), Radiant			Immediately	$ 138.90
26A	316498200		Bracket-support, Chassis, Aluminum				$ 52.33
26B	316214202		Bracket, Chassis Support, Front				$ 25.41
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316418901		Screw, Trilobe, 10-32 X 5/16", Black				$ 14.18
NI	5308014215		Screw, 6-20 X 0.312				$ 2.28
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NI	316580479		Harness, Wiring, Surface Units				$ 121.34
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021132		Screw, 8-18 X 11/16, Black, (3)				$ 12.89
NIA	5303288572		Screw-handle Mtg		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
