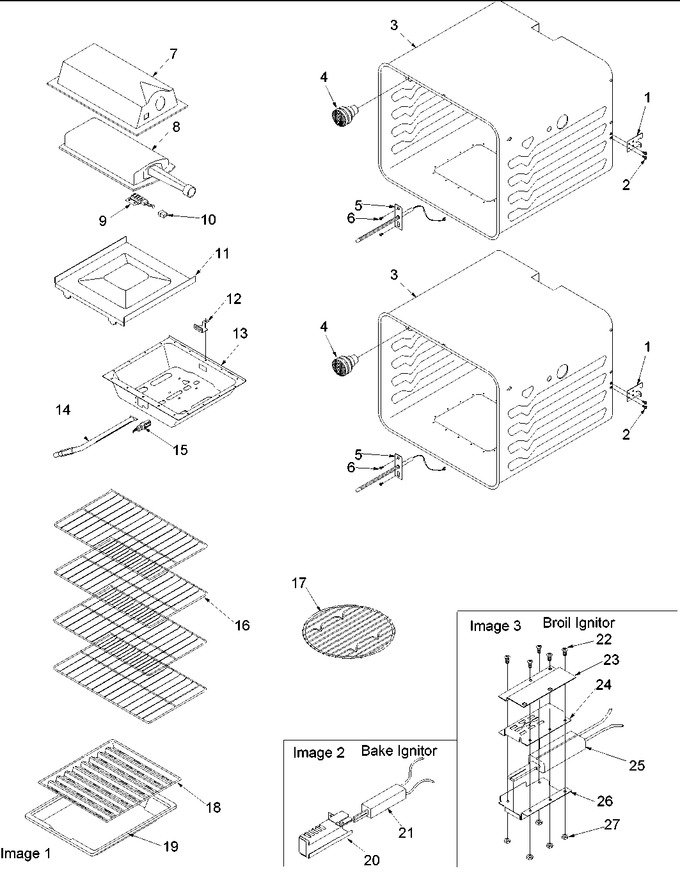

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0041017		Bracket, Oven Mounting-pyro		Appelez-nous	-
2	WP693995		Screw, No.8-18 X 3/8 P Hex Wsh T   (Replaces: 31750432)			Immediately	$ 6.47
3	31813801CG		Oven Shell (cg)		Appelez-nous	-
4	WP74011278		Assy, Oven Light   (Replaces: Y0314842)				$ 101.56
5	WPY0314907		Sensor, Temperature   (Replaces: Y0314907)				$ 201.45
6	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
7	Y0059415		Chamber Broil Burner		Appelez-nous	-
8	Y0054070		Broil Burner Assy		Appelez-nous	-
9	Y0059394		Ignitor, Broil		Appelez-nous	-
10	Y0059417		Plug, Ignitor Wires		Appelez-nous	-
11	315521CG		Oven Bottom (cg)		Appelez-nous	-
12	Y0060766		Mtg. Bracket, Oven Burner		Appelez-nous	-
13	Y0315387		Box, Lower Burner		Appelez-nous	-
14	31761901		Burner, Bake (wall Oven)		Appelez-nous	-
15	Y0059393		Ignitor, Bake		Appelez-nous	-
16	314762J		Rack, Oven 19 3/16`` X 16 1/2``		Appelez-nous	-
17	Y0042713		Meat Rack Slo/cook		Appelez-nous	-
18	4396923		Grid, Broiler (cg)   (Replaces: 304451CG)			Immediately	$ 52.04
19	4396923		Pan, Broiler (cg)   (Replaces: 314175CG)			Immediately	$ 52.04
20	31957101		Bracket, Igniter Mounting		Appelez-nous	-
21	31939701		Ignitor, Bake/broil				$ 77.18
22	31750308		Screw, No.6-32 X .375 Panhd(blk)		Appelez-nous	-
23	Y0060826		Ignitor Brkt		Appelez-nous	-
24	0063781		Shield, Top Igniter		Appelez-nous	-
25	31939701		Ignitor, Bake/broil				$ 77.18
26	Y0308104		Ignitor Shield-bottom		Appelez-nous	-
27	M0282005		Nut, Hex .562   (Replaces: 31750113)				$ 7.07
NI	Y0042175		Bulb, Light		Appelez-nous	-
