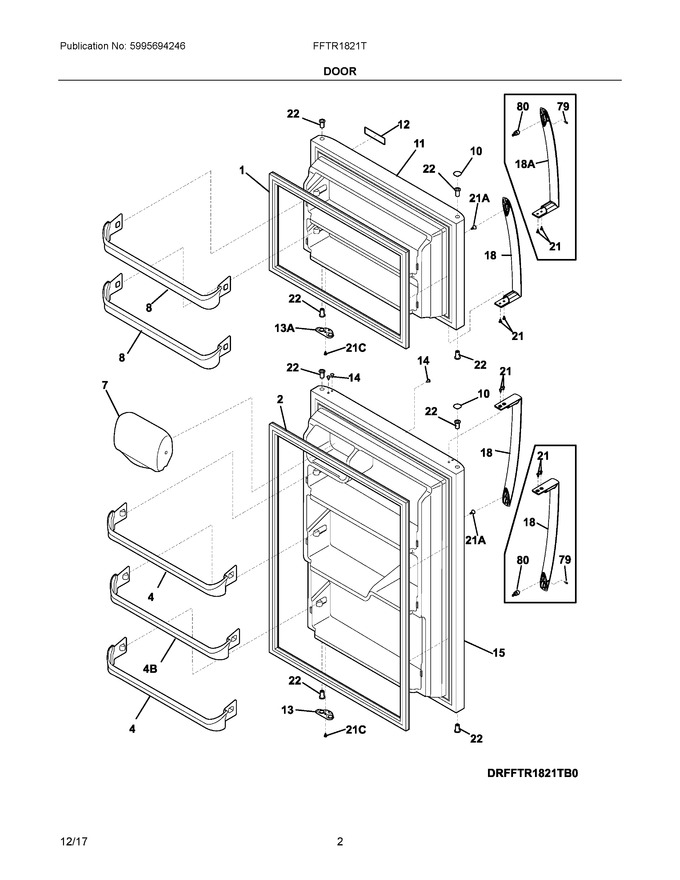

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242193209		Gasket-frzr Door, Black, Magnetic			Immediately	$ 197.62
2	242193212		Gasket-refr Door, Black, Magnetic			Immediately	$ 191.86
4	240534901		Rack-door			Immediately	$ 47.03
7	240337712		Door-dairy			Immediately	$ 36.41
8	240534801		Rack-door			Immediately	$ 49.62
10	240381303		Plug-button, Black, Hinge Brg Hole				$ 69.77
11	807460041		Freezer Door, Complete, Black Stainless				$ 381.80
12	5304510903		Nameplate, Black Stainless				$ 50.81
13	240312422		Door Stop, Black, Ref				$ 15.17
14	240494003		Plug-button, Black				$ 18.20
15	807460161		Refrigerator Door, Complete, Black Stainless				$ 318.89
18	5304511130		Handle, Door, Dark Stainless, Ref Rhs, With Set Screw				$ 205.52
21	240383407		Screw, Truss Hd Quad, 10 X 16, Black   (Replaces: 240383408)				$ 12.76
22	5304507147		Bearing-hinge, Black, (8)			Immediately	$ 7.59
79	218755405		Screw-set, 10-32 X 0.500   (Replaces: 218755407)			Immediately	$ 20.56
80	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 18.60
13A	240312415		Door Stop, Black, Frzr				$ 21.27
18A	5304511131		Handle, Door, Dark Stainless, Frz Rhs, With Set Screw		Appelez-nous	-
21C	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 14.18
4B	240534701		Rack-door, 4b			Immediately	$ 28.80
NI	5304508804		Touch Up Paint, Pen, Black Stainless		Appelez-nous	-
NIA	241601001		Wrench, Allen		Appelez-nous	-
