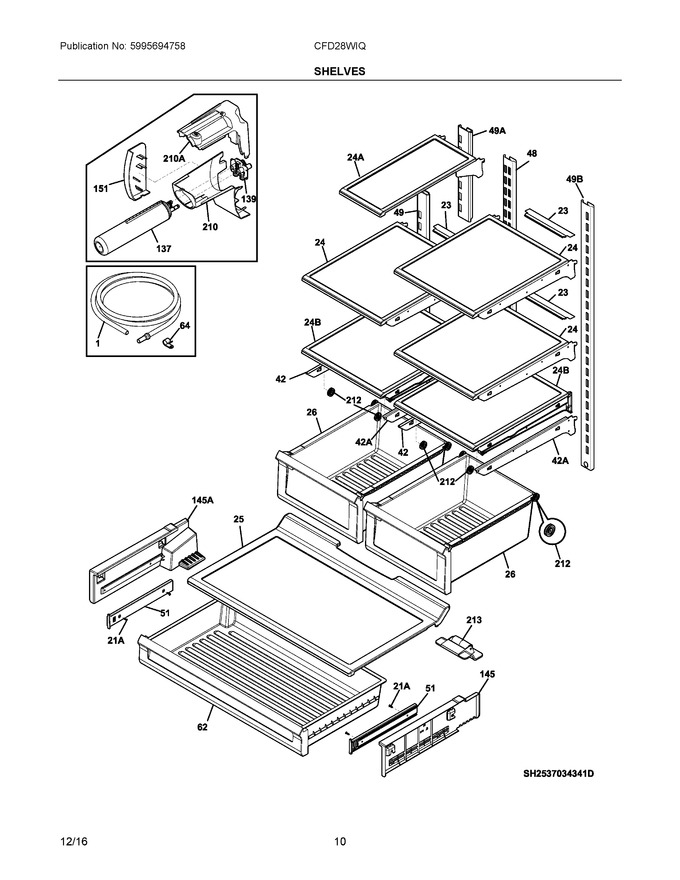

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 242220204 | Tube-water, 93.5", Brown/tan, Filter Base To, Primary Valve (Replaces: 242220201) |
|
Immediately | $ 40.32 | ||||
| 23 | 5304501541 | Gasket, Shelf, Rear, Air Flow |
|
$ 16.30 | |||||
| 24 | 242068717 | Shelf, 1/2 Width, Cantilever, W/rear Gasket |
|
$ 182.01 | |||||
| 25 | 5304508025 | Cover, Deli Drawer, W/glass |
|
Immediately | $ 157.74 | ||||
| 26 | 5304508854 | Pan-crisper, Assembly, W/roller |
|
Immediately | $ 201.93 | ||||
| 42 | 5304508034 | Rail, Crisper Cover, Lh Side |
|
Immediately | $ 87.21 | ||||
| 48 | 242122101 | Channel-shelf Mtg, Center |
|
$ 80.09 | |||||
| 49 | 5304508035 | Channel-shelf Mtg, Side, Lh |
|
$ 97.83 | |||||
| 51 | 242197901 | Slide, Deli, (2) |
|
$ 133.96 | |||||
| 62 | 242096801 | Pan-deli |
|
$ 265.91 | |||||
| 64 | 240396801 | Clamp, Tube/wiring, Nylon, Black/natural |
|
$ 19.13 | |||||
| 137 | ULTRAWF | Filter-water (Replaces: 242294401) |
|
Immediately | $ 109.49 | ||||
| 139 | 242009604 | Base-water Filter (Replaces: 242009601) |
|
Immediately | $ 33.14 | ||||
| 145 | 5304508017 | Support, Deli Cover, Rh |
|
- | |||||
| 151 | 242069701 | Cover-water Filter |
|
$ 62.24 | |||||
| 210 | 241983816 | Housing-water Filtr |
|
Immediately | $ 73.71 | ||||
| 212 | 5304508016 | Roller, Crisper Pan |
|
Immediately | $ 9.42 | ||||
| 213 | 242010901 | Roller Assy, Deli Pan |
|
$ 49.62 | |||||
| 145A | 5304508018 | Support, Deli Cover, Lh |
|
$ 80.39 | |||||
| 210A | 241998303 | Mount-water Filter (Replaces: 241998302) |
|
$ 14.41 | |||||
| 21A | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 17.11 | ||||
| 24A | 242068702 | Shelf-"spill-safe", Cantilever, 1/4 Width, Sliding |
|
$ 185.70 | |||||
| 24B | 5304508067 | Cover, Crisper, W/glass |
|
Immediately | $ 137.68 | ||||
| 42A | 5304508033 | Rail, Crisper Cover, Rh Side |
|
Immediately | $ 86.45 | ||||
| 49A | 5304531311 | Channel-shelf Mtg, Center, Icemaker Shelf (Replaces: 242122001) |
|
- | |||||
| 49B | 242122301 | Channel-shelf Mtg, Side, Rh |
|
$ 77.97 | |||||
| NI | 5304453707 | Screw, Quad Hilo, #8-18 X 0.50, (2) (Replaces: 241953901) |
|
Immediately | $ 15.92 | ||||
| NI | 5304499315 | Energy Guide |
|
- | |||||
| NI | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| NIA | 5304453707 | Screw, Plask, #8-18 X .500 (Replaces: 240363402) |
|
Immediately | $ 15.92 | ||||
| NIA | 241695904 | Screw |
|
$ 14.41 | |||||
| NIA | 242220204 | Tube-water, 93.5", Natural, Filter Base To, Secondary Valve |
|
Immediately | $ 40.32 | ||||
| NIB | 241500303 | Screw, Hex Washer Head, 8-18ab X 1/2 |
|
Immediately | $ 4.55 | ||||
| NIB | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 10.63 |
