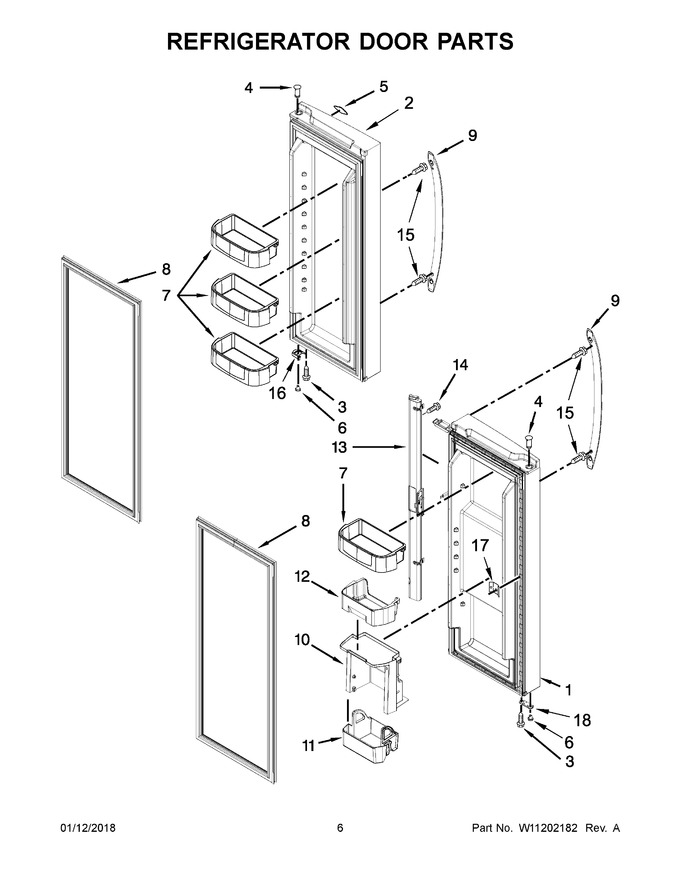

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11040559		Door, Left (includes #8) (sunset Bronze)		Appelez-nous	-
2	W11040554		Door, Right (includes #8) (sunset Bronze)		Appelez-nous	-
3	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.07
4	W11544568		Thimble   (Replaces: W10366270)			Immediately	$ 11.96
5	W11178521		Nameplate   (Replaces: W10884775)			Immediately	$ 56.82
6	WPW10470155		Closure, Door   (Replaces: W10470155)			Immediately	$ 6.47
7	WPW10308869		Bin, Medium   (Replaces: W10308869)			Immediately	$ 64.96
8	WPW10460580		Gasket (grey)   (Replaces: W10413468)			Immediately	$ 199.36
9	W11416489		Handle Assembly (stainless)   (Replaces: W10874780)				$ 164.00
10	WPW10317224		Compartment, Utility   (Replaces: W10317224)				$ 88.97
11	W11106787		Caddy, Condiment   (Replaces: W10462299)			Immediately	$ 91.70
12	WPW10326335		Bin, Shallow   (Replaces: W10326335)			Immediately	$ 52.61
13	WPW10624450		Flipper Mullion Assembly (grey)   (Replaces: W10624450)			Immediately	$ 201.45
14	W10854958		Screw   (Replaces: 12990302)				$ 6.69
15	WPW10170540		Screw   (Replaces: W10170540)			Immediately	$ 7.66
16	WPW10397055		Bracket, Door Stop   (Replaces: W10397055)			Immediately	$ 31.66
17	WP939101		Screw Anchor   (Replaces: 939101)				$ 6.75
18	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
1A	LW10858415		Door, Left (includes #8) (stainless)   (Replaces: W10858415)				$ 784.91
2A	LW10858417		Door, Right (includes #8) (stainless)   (Replaces: W10858417)				$ 720.24

    View Diagram in Separate Window       Print Part List
