01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts
04 - Refrigerator Door Parts
05 - Freezer Door Parts
06 - Unit Parts
07 - Shelf Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:

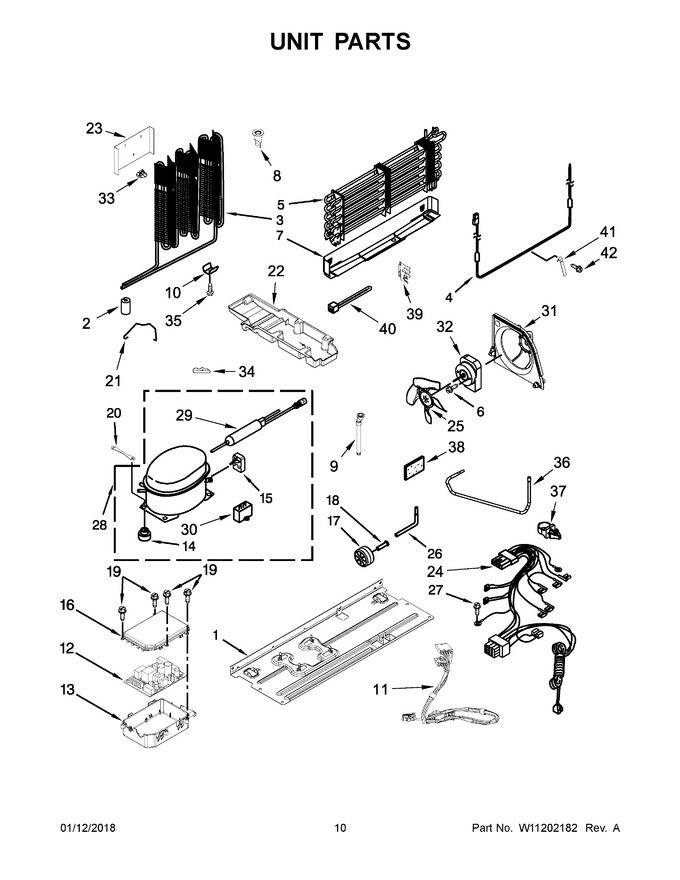

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10300116 | Baseplate |
|
$ 140.83 | |||||
| 2 | W10852725 | Grommet, Condenser (Replaces: 2319835) |
|
$ 6.93 | |||||
| 3 | WPW10342567 | Condenser (Replaces: W10342567) |
|
$ 238.46 | |||||
| 4 | WPW10436849 | Heater, Defrost (Replaces: W10436849) |
|
Immediately | $ 120.73 | ||||
| 5 | WPW10321158 | Assembly, Evaporator (Replaces: W10321158) |
|
Immediately | $ 264.29 | ||||
| 6 | W11501418 | Screw (Replaces: 8533961) |
|
- | |||||
| 7 | WPW10314195 | Shield, Heat (Replaces: W10314195) |
|
$ 86.86 | |||||
| 8 | W11190084 | Valve, Drain (Replaces: W10519112) |
|
Immediately | $ 56.20 | ||||
| 9 | W11190084 | Tube, Drain (Replaces: W10314199) |
|
Immediately | $ 56.20 | ||||
| 10 | W10683556 | Clip, Condenser (Replaces: W10248621) |
|
$ 16.61 | |||||
| 11 | WPW10424230 | Assembly, Low Voltage Wire (Replaces: W10424230) |
|
Immediately | $ 105.97 | ||||
| 12 | W11035836 | Control, Electronic (Replaces: W10892333) |
|
Immediately | $ 235.01 | ||||
| 13 | 2323186 | Box, Control |
|
$ 92.12 | |||||
| 14 | WPW10169124 | Grommet, Compressor (Replaces: 10835903SP) |
|
Immediately | $ 6.47 | ||||
| 15 | WPW10448874 | Device, Start (Replaces: W10448874) |
|
Immediately | $ 122.47 | ||||
| 16 | W10313215 | Cover, Electronic Control |
|
$ 66.85 | |||||
| 17 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 28.85 | ||||
| 18 | W11594405 | Axle, Rivet (Replaces: 2179826) |
|
Immediately | $ 16.39 | ||||
| 19 | WPW10171469 | Screw (Replaces: 8533859) |
|
Immediately | $ 9.95 | ||||
| 20 | W10236396 | Strap, Compressor |
|
Immediately | $ 17.84 | ||||
| 21 | W11661170 | Strap, Bale (Replaces: W10174384) |
|
Immediately | $ 10.17 | ||||
| 22 | W10890667 | Tray, Drain (Replaces: W10802027) |
|
$ 130.24 | |||||
| 23 | W10349514 | Cover, Condenser Bottom |
|
$ 70.63 | |||||
| 24 | W10637509 | Assembly, Unit Wire |
|
$ 207.03 | |||||
| 25 | W11193484 | Blade, Fan (Replaces: W10817071) |
|
Immediately | $ 86.99 | ||||
| 26 | W11676464 | Tube, Process (Replaces: VS20001) |
|
$ 93.10 | |||||
| 27 | WP489128 | Screw (Replaces: 488500) |
|
$ 9.79 | |||||
| 28 | W10233960 | Compressor (Replaces: W10445423) |
|
Immediately | $ 462.29 | ||||
| 29 | W10843121 | Drier (Replaces: W10669573) |
|
Immediately | $ 47.31 | ||||
| 30 | WPW10662129 | Capacitor (Replaces: W10590083) |
|
Immediately | $ 52.97 | ||||
| 31 | WP2315541 | Bracket, Condenser Fan (Replaces: 2315541) |
|
Immediately | $ 75.42 | ||||
| 32 | WP2188874 | Motor, Condenser (Replaces: W10530280) |
|
Immediately | $ 102.56 | ||||
| 33 | W10815861 | Clip, Bottom Cover |
|
$ 13.55 | |||||
| 34 | W11501419 | Clip, Wiring (Replaces: 1114718) |
|
Immediately | $ 10.37 | ||||
| 35 | W11544659 | Screw (Replaces: 8281232) |
|
$ 12.30 | |||||
| 36 | W10510988 | Tube, Suction |
|
$ 55.17 | |||||
| 37 | 2219077 | Clip, Harness |
|
$ 55.06 | |||||
| 38 | W11553819 | Insulation, Sound (Replaces: 2215468) |
|
Immediately | $ 12.66 | ||||
| 39 | W10314197 | Bracket, Evaporator |
|
$ 20.09 | |||||
| 40 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 7.11 | |||||
| 41 | W11807361 | Heat Probe (Replaces: 2258429) |
|
$ 17.24 | |||||
| 42 | WP489478 | Screw |
|
$ 6.98 | |||||
| NI | 876764 | Valve, Access (3/16") |
|
Immediately | $ 82.22 | ||||
| NI | 978030 | Valve, Access (3/4") |
|
$ 117.64 | |||||
| NI | 978029 | Valve, Access (5/8") |
|
$ 93.85 | |||||
| NI | WP978025 | Valve, Access (1/4") |
|
Immediately | $ 94.73 | ||||
| NI | N/P | Refrigerant Charge 4.25 Oz (r-134a) |
|
- | |||||
| NI | SF5538 | Valve, Access (3/8") (Replaces: 978027) |
|
$ 19.48 | |||||
| NI | 978026 | Valve, Access (5/16") |
|
Immediately | $ 115.28 |
