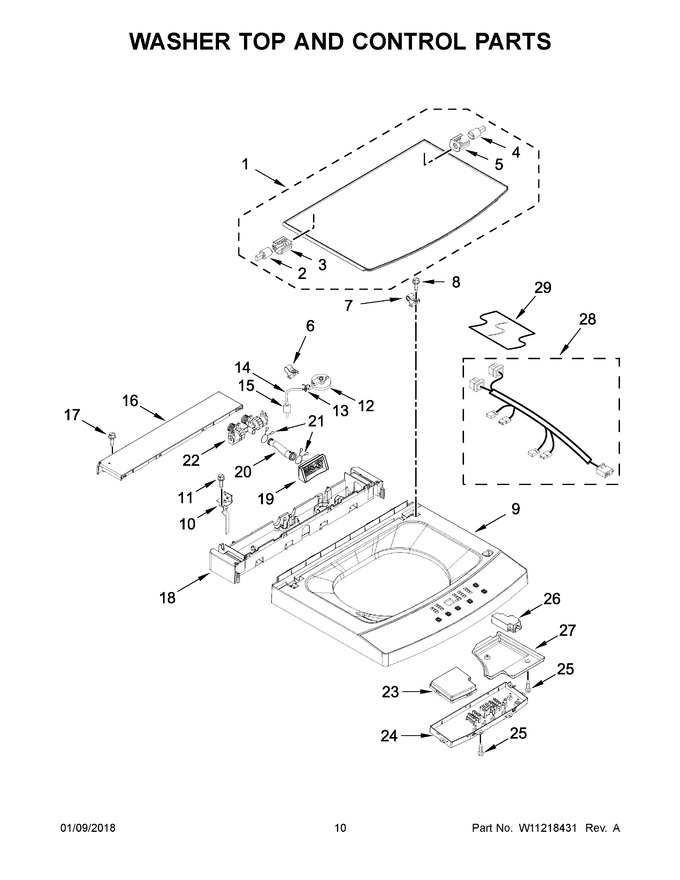

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11189136 | Lid (Replaces: W11156397) |
|
Immediately | $ 318.34 | ||||
| 2 | W11174363 | Damper (left) |
|
$ 17.57 | |||||
| 3 | W11174364 | Cover, Damper (left) |
|
$ 17.66 | |||||
| 4 | W11174368 | Damper (right) |
|
$ 17.94 | |||||
| 5 | W11174365 | Cover, Damper (right) |
|
$ 17.66 | |||||
| 6 | W11174370 | Rotary Shaft (left) |
|
Immediately | $ 167.84 | ||||
| 7 | W11826177 | Rotary Shaft (right) (Replaces: W11174371) |
|
- | |||||
| 8 | W11174373 | Screw |
|
- | |||||
| 9 | W11676908 | Top, Control Console (Replaces: W11219589) |
|
$ 315.80 | |||||
| 10 | W10869495 | Switch, Off Balance |
|
$ 122.09 | |||||
| 11 | W10869499 | Screw |
|
- | |||||
| 12 | W11662130 | Switch, Pressure (Replaces: W10869500) |
|
Immediately | $ 28.99 | ||||
| 13 | W11832205 | Clamp, Hose (Replaces: W10883610) |
|
$ 18.26 | |||||
| 14 | W10882407 | Hose, Pressure Switch |
|
Immediately | $ 45.98 | ||||
| 15 | W10882410 | Sleeve, Hose |
|
- | |||||
| 16 | W11174342 | Cover, Water Inlet |
|
$ 162.16 | |||||
| 17 | W11296992 | Screw (Replaces: W10869502) |
|
- | |||||
| 18 | W11184194 | Housing, Water Inlet |
|
- | |||||
| 19 | W11174384 | Fill, Water Inlet |
|
$ 190.58 | |||||
| 20 | W11189116 | Hose, Water Inlet (Replaces: W11174387) |
|
$ 26.65 | |||||
| 21 | W11174391 | Clamp |
|
- | |||||
| 22 | W10906602 | Valve, Water Inlet (Replaces: W10869511) |
|
Immediately | $ 186.03 | ||||
| 23 | W11174392 | Cover, Control (upper) |
|
- | |||||
| 24 | W11189137 | Machine Control Unit (Replaces: W11176140) |
|
Immediately | $ 416.91 | ||||
| 25 | W10869504 | Screw |
|
$ 27.95 | |||||
| 26 | W11371714 | Latch, Lid Lock (Replaces: W10869789) |
|
Immediately | $ 214.64 | ||||
| 27 | W11844282 | Cover, Control (lower) (Replaces: W11174395) |
|
- | |||||
| 28 | W11174382 | Main Harness |
|
$ 151.19 | |||||
| 29 | W11182556 | Cloth, Harness Protector |
|
- |
