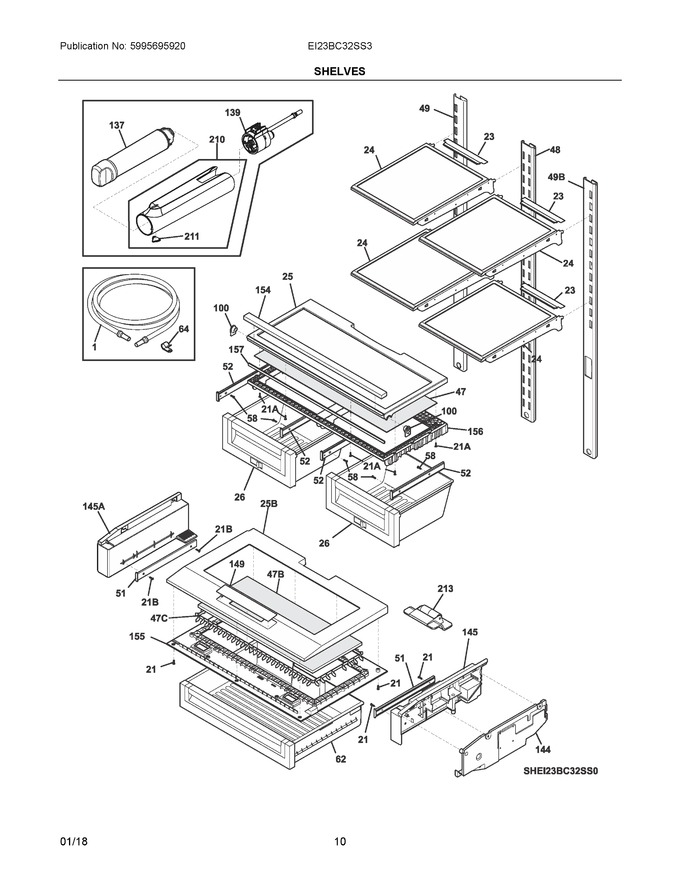

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 242220119 | Tube-water, 97.5", Natural, Filter Base To, Secondary Valve |
|
Immediately | $ 30.47 | ||||
| 21 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 17.11 | ||||
| 23 | 5304501541 | Gasket, Shelf, Rear, Air Flow |
|
$ 16.30 | |||||
| 24 | 242068720 | Shelf, 1/2 Width, Cantilever, W/rear Gasket |
|
$ 148.85 | |||||
| 25 | 241802205 | Frame-crisper Cover, Upper |
|
$ 119.07 | |||||
| 26 | 241772808 | Pan-crisper |
|
$ 269.22 | |||||
| 47 | 241768802 | Glass-crisper Frame |
|
$ 77.36 | |||||
| 48 | 242122101 | Channel-shelf Mtg, Center |
|
$ 80.09 | |||||
| 49 | 242122204 | Channel-shelf Mtg, Side, Lh |
|
- | |||||
| 51 | 241816101 | Slide-deli |
|
$ 152.38 | |||||
| 52 | 241769002 | Slide-crisper Cover |
|
$ 119.78 | |||||
| 58 | 241941202 | Screw, 8-18 X 3/8 |
|
$ 15.17 | |||||
| 62 | 241827206 | Pan-deli |
|
$ 248.49 | |||||
| 64 | 240396801 | Clamp, Tube/wiring, Nylon, Black/natural |
|
$ 19.13 | |||||
| 100 | 241768601 | Support-crspr Cover |
|
$ 19.13 | |||||
| 137 | EWF02C | Filter Assembly, Puresource U-ii, W/cap (Replaces: 807946704) |
|
Immediately | $ 75.59 | ||||
| 139 | 5304522623 | Manifold, Water Filter, 93.5", W/brown Tube, Filter Base To, Primary Valve (Replaces: 807931801) |
|
Immediately | $ 64.53 | ||||
| 144 | 241803901 | Cover-deli Air Control |
|
- | |||||
| 145 | 241803803 | Housing-deli Air Control |
|
$ 126.21 | |||||
| 149 | 241974501 | Insert-pan Cover, Plastic |
|
$ 57.79 | |||||
| 154 | 241879902 | Trim-crisper Cover |
|
$ 39.44 | |||||
| 155 | 241803403 | Frame-deli Cover, Lower |
|
$ 148.13 | |||||
| 156 | 241872006 | Frame-crisper Cover, Lower |
|
$ 119.78 | |||||
| 157 | 241872201 | Beam Support |
|
$ 53.85 | |||||
| 210 | 5303918723 | Housing, Water Filter, W/plug & Pad |
|
Immediately | $ 26.23 | ||||
| 211 | 807932201 | Plug, Filter Housing |
|
- | |||||
| 213 | 242010901 | Roller Assy, Deli Pan |
|
$ 49.62 | |||||
| 145A | 5304508170 | Support, Rail, Lh |
|
$ 96.32 | |||||
| 21A | 5304453707 | Screw, Quad Hilo, #8-18 X 0.50, (2) (Replaces: 241953901) |
|
Immediately | $ 15.92 | ||||
| 21B | 241953902 | Screw, Quad Hilo, #8-18 X 0.25 (Replaces: 241953907) |
|
Immediately | $ 17.11 | ||||
| 25B | 241803303 | Frame-deli Cover, Upper |
|
$ 223.72 | |||||
| 47B | 242176601 | Glass-deli Drawer, 11.4 X 26.5 |
|
- | |||||
| 47C | 242186001 | Spacer, Non-ptd |
|
$ 37.38 | |||||
| 49B | 242122302 | Channel-shelf Mtg, Side, Rh |
|
$ 73.00 | |||||
| NI | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| NI | 5304508152 | Label, Energy Guide |
|
- | |||||
| NIA | A13402902 | Bypass Assembly, No Filter, Optional Part (Replaces: 807946702) |
|
Immediately | $ 104.38 | ||||
| NIA | 241500303 | Screw, Hex Washer Head, 8-18ab X 1/2 |
|
Immediately | $ 4.55 | ||||
| NIA | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 10.63 | |||||
| NIA | 241695904 | Screw, Type Ab, #10-16 X .5 |
|
$ 14.41 | |||||
| NIB | 242039702 | Screw, Shoulder, #10-16, (2) |
|
$ 4.26 |
