SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door

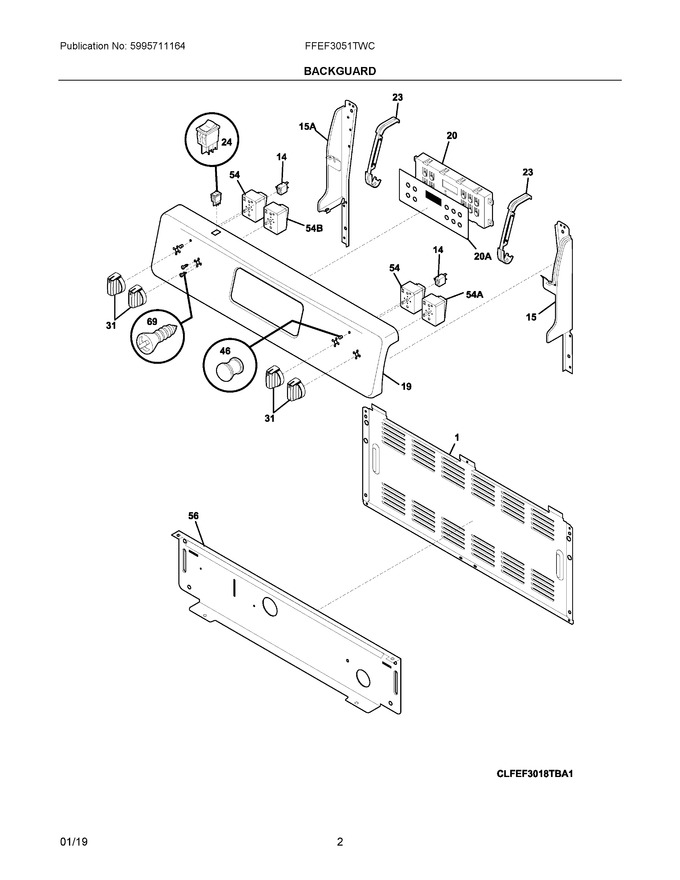

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield, Backguard, Rear Wall   (Replaces: 316281800)				$ 57.64
14	316022500		Light/lamp, Indicator, Black, 125 V			Immediately	$ 53.57
15	316602102		Cap-end, White, Rh				$ 57.41
19	807152214		Panel, Backguard, White		Appelez-nous	-
20	5304518660		Clock/timer, Electronic, Es100   (Replaces: 316455400)			Immediately	$ 181.92
23	316441600		Bracket-clock Mtg, Black				$ 20.48
24	5304512727		Switch, Rocker, White		Appelez-nous	-
31	5304508957		Knob, Control, White			Immediately	$ 18.95
46	316557300		Lens-light/lamp, Indicator, Clear			Immediately	$ 16.77
54	316436000		Switch, Control, Small Element   (Replaces: 5304506424)			Immediately	$ 80.34
56	316234029		Shield, Backguard, White, Inner   (Replaces: 316234012)				$ 87.17
69	5303288565		Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg				$ 3.12
15A	316602103		Cap-end, White, Lh				$ 58.12
20A	316220728		Overlay, Clock, White			Immediately	$ 39.44
54A	316238201		Switch, Infinite Radian, Dual			Immediately	$ 89.00
54B	316436001		Switch, Control, Large Element   (Replaces: 5304506425)			Immediately	$ 51.68
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
