01 - Cover Sheet


02 - Control Panel


03 - Burner


04 - Body


05 - Door/drawer


06 - Wiring Diagram

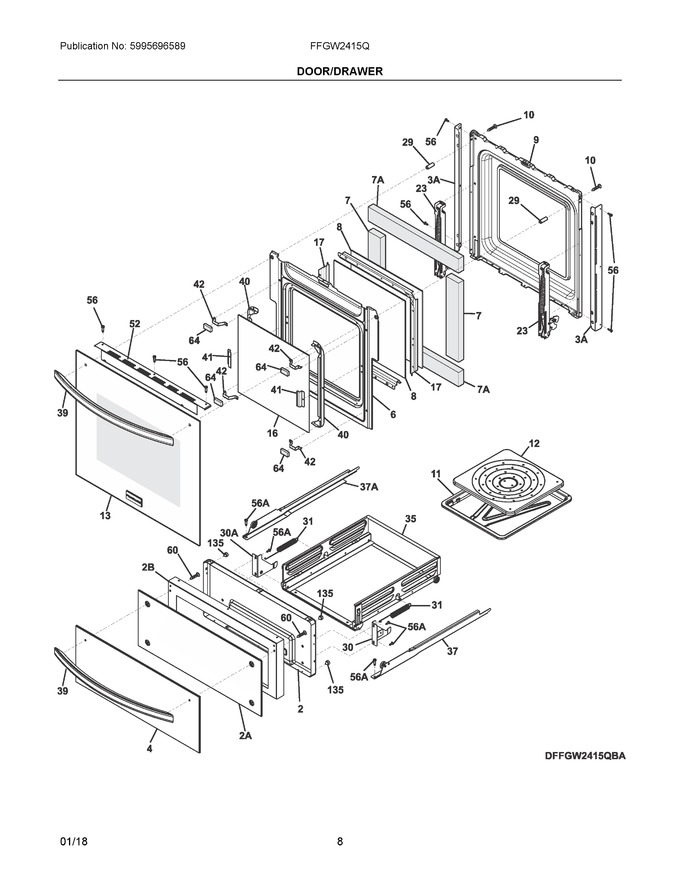

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	139076801		Liner, Broiler Drawer		Appelez-nous	-
4	807278102		Panel, Drawer, White, Outer				$ 158.55
6	139083101		Shield, Oven Door, Wool		Appelez-nous	-
7	807193502		Insulation, Door, Side		Appelez-nous	-
8	139085800		Glass, Door, Inner, (2), Hrc2		Appelez-nous	-
9	139014503		Liner, Door		Appelez-nous	-
10	316001002		Screw, Wafer Head, 10-24 X 1.81, (2), Handle Mtg.				$ 14.89
11	318126200		Pan, Broiler		Appelez-nous	-
12	318126300		Insert, Broiler Pan		Appelez-nous	-
13	5304515549		Door Assembly, Outer, Glass, White, W/trim & Badge		Appelez-nous	-
16	139085900		Glass, Door, Airwash		Appelez-nous	-
17	139085701		Spacer, Door Glass, (2)		Appelez-nous	-
23	316575947		Hinge, Oven Door, White		Appelez-nous	-
29	139023400		Spacer, Door Handle, (2)				$ 20.48
30	808664401		Hinge, Drawer, Rh		Appelez-nous	-
31	808721501		Spring, Broiler Drawer, (2)		Appelez-nous	-
35	5304504568		Drawer Assembly, Carriage, W/rollers		Appelez-nous	-
37	3203722		Rail, Drawer, Rh		Appelez-nous	-
39	808714301		Handle, Door/drawer, White		Appelez-nous	-
40	318242702		Bracket, Glass Holder, Door, (2)				$ 19.72
41	318370602		Bracket, Glass Panel, (2)				$ 13.65
42	318382302		Bracket, Glass Retainer, (4)				$ 50.81
52	139023801		Trim, Door, Black, Upper		Appelez-nous	-
56	5303324184		Screw, Truss Head, #8-32 X 3/8   (Replaces: 809136201)			Immediately	$ 14.18
60	5303310510		Screw, 10-24 X 0.625				$ 14.18
64	318165800		Spacer, Glass, Foam				$ 17.72
135	318147413		Bumper, Body Side, (4)		Appelez-nous	-
2A	807192402		Panel, Inner Drawer, Black, Front		Appelez-nous	-
2B	807193402		Frame, Drawer Liner		Appelez-nous	-
30A	808664402		Hinge, Drawer, Lh		Appelez-nous	-
37A	3203723		Rail, Drawer, Lh		Appelez-nous	-
3A	139014401		Trim, Oven Door, Black, Side, (2), Vented				$ 32.62
56A	732022460		Screw, 10-32 X 0.375, (2)		Appelez-nous	-
7A	807193501		Insulation, Door, Top/bottom		Appelez-nous	-
NI	154079601		Nut, Hex Head Sems   (Replaces: 5303013272)				$ 0.41
NI	316089500		Screw, 10-16 X .486				$ 13.46
NIA	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18

    View Diagram in Separate Window       Print Part List
