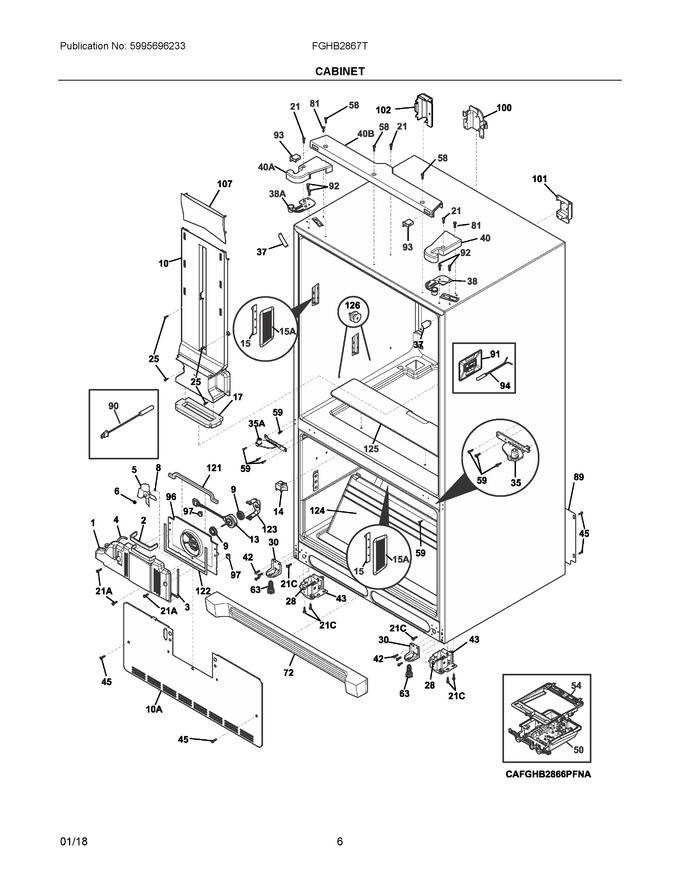

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304503130 | Cover, Evaporator Fan |
|
$ 72.05 | |||||
| 2 | 218249809 | Seal, Fan Cover, Top |
|
Immediately | $ 8.34 | ||||
| 3 | 241860111 | Gasket-evap, Bottom |
|
$ 12.05 | |||||
| 4 | 241860112 | Gasket-evap, Upper |
|
$ 7.09 | |||||
| 5 | 5308000010 | Fan Blade, Red, Evaporator Fan |
|
Immediately | $ 49.03 | ||||
| 6 | 5304508010 | Spring, Fan Hub |
|
$ 9.10 | |||||
| 8 | 215474201 | Washer, "slinger", Nylon, Evap Fan Shaft |
|
Immediately | $ 18.43 | ||||
| 9 | 5304508006 | Bushing, Motor Mounting |
|
$ 12.89 | |||||
| 10 | 5304508741 | Air Tower, Assembly, W/damper |
|
$ 238.13 | |||||
| 13 | 140282033103 | Motor, Evaporator Fan, W/harness (Replaces: 809069201) |
|
Immediately | $ 56.30 | ||||
| 14 | 242060202 | Switch-light/lamp, Frzr Door |
|
$ 40.40 | |||||
| 15 | 5304525264 | Board-orion 6500k (Replaces: 242196211) |
|
Immediately | $ 53.64 | ||||
| 17 | 5304508008 | Gasket, Air Duct, Bottom |
|
Immediately | $ 30.68 | ||||
| 21 | 241732101 | Screw, 10-32 X 1/2 |
|
Immediately | $ 15.60 | ||||
| 25 | 240383407 | Screw, Truss Hd Quad, #10-16 X .500, White |
|
$ 12.76 | |||||
| 28 | 5304499445 | Bolt-roller Adj, Hex Washer Head, 1/4-20 X 4.020, (2), Special (Replaces: 240335502) |
|
Immediately | $ 31.33 | ||||
| 30 | 241778702 | Bracket-anti Tip |
|
$ 20.42 | |||||
| 35 | 5304508044 | Hinge Assembly, Lower, Rh, W/adj Screw |
|
$ 43.23 | |||||
| 37 | 242161206 | Trim-cabinet Corner, Gray, (2) |
|
$ 10.62 | |||||
| 38 | 241761301 | Bracket-upper Hinge, Rh |
|
$ 66.25 | |||||
| 40 | 5304504483 | Cover-upper Hinge, Grey, Rh (Replaces: 5304503707) |
|
$ 64.58 | |||||
| 42 | 240578902 | Screw, Hex Head, 1/4-20 X 5/8 |
|
Immediately | $ 14.18 | ||||
| 43 | 5304499445 | Roller Assy, Adjustable, Front, (2) (Replaces: 240335005) |
|
Immediately | $ 31.33 | ||||
| 45 | 241500303 | Screw, Hex Washer Head, 8-18ab X 1/2 |
|
Immediately | $ 4.55 | ||||
| 50 | 5304508862 | Board Assembly, Main Power, W/housing |
|
$ 293.49 | |||||
| 54 | 807854301 | Support, Housing, Main Board |
|
$ 45.36 | |||||
| 58 | 241500305 | Screw (Replaces: 241853202) |
|
$ 3.03 | |||||
| 59 | 240442708 | Screw-#10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 63 | 216396900 | Screw, Leveling Foot, Plastic, Adjustable |
|
Immediately | $ 38.39 | ||||
| 72 | 242054804 | Grille/kickplate |
|
$ 83.64 | |||||
| 81 | 134154100 | Screw, Hex Head, #10-32 X 3/8 (Replaces: 242025601) |
|
$ 13.46 | |||||
| 89 | 5304520905 | Cover-access, W/label (Replaces: 241733902) |
|
Immediately | $ 74.03 | ||||
| 90 | 240597220 | Sensor, Temperature, 10k, Ntc (Replaces: 240597203) |
|
Immediately | $ 5.16 | ||||
| 91 | 5304508041 | Cover, Thermistor |
|
$ 11.92 | |||||
| 92 | 241710601 | Screw, Hex Washer Hd, 1/4 X 7/8, Hinge Mtg |
|
$ 13.46 | |||||
| 93 | 241835505 | Switch-light, Grey |
|
Immediately | $ 70.16 | ||||
| 94 | 5303918775 | Thermistor, Fresh Food Temp, Ntc, W/connectors |
|
Immediately | $ 23.74 | ||||
| 96 | 241860601 | Shroud-evap Fan Mtg |
|
Immediately | $ 131.83 | ||||
| 97 | 241860130 | Gasket, Fan Cover Clip, (2) |
|
- | |||||
| 100 | 242157601 | Cover, Tubing, Eps Block |
|
$ 11.92 | |||||
| 101 | 242157801 | Cover, Tubing, Eps Block |
|
$ 23.13 | |||||
| 102 | 242157501 | Cover, Tubing, Eps Block |
|
$ 23.82 | |||||
| 107 | 241963102 | Duct-air, Top |
|
$ 36.41 | |||||
| 121 | 241860103 | Gasket-evap, Upper |
|
Immediately | $ 3.73 | ||||
| 122 | 241860117 | Gasket-evap, Bottom (Replaces: 241860102) |
|
Immediately | $ 11.21 | ||||
| 123 | 5304508007 | Bracket, Fan Motor Mtg. |
|
Immediately | $ 14.41 | ||||
| 124 | 242006903 | Duct-air, Freezer (Replaces: 242006902) |
|
Immediately | $ 63.70 | ||||
| 125 | 242071201 | Cover, Sump |
|
$ 114.82 | |||||
| 126 | 242081301 | Screw-shoulder |
|
- | |||||
| 10A | 241860402 | Cover-evap Coil, Lower |
|
Immediately | $ 130.91 | ||||
| 15A | 242202701 | Lens, 3 Led Cluster |
|
$ 30.47 | |||||
| 21A | 242015001 | Screw, 8-18 X 1/2 |
|
Immediately | $ 16.30 | ||||
| 21C | 218252201 | Screw, #8 Truss Hd, 10-32ca X 0.500 |
|
Immediately | $ 14.18 | ||||
| 35A | 5304508045 | Hinge Assembly, Lower, Lh, W/adj Screw |
|
$ 48.23 | |||||
| 38A | 241761302 | Bracket-upper Hinge, Lh |
|
$ 64.49 | |||||
| 40A | 5304503706 | Cover-upper Hinge, Grey, Lh |
|
- | |||||
| 40B | 241862405 | Cover-upper Hinge, Grey, Center |
|
$ 101.65 | |||||
| NI | 240494001 | Plug-button, White, Cab Liner Holes |
|
Immediately | $ 18.20 | ||||
| NI | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| NI | 5304521649 | Harness-wiring (Replaces: 242015904) |
|
Immediately | $ 101.63 | ||||
| NI | 218362501 | Screw, Hex Washer Head, 8-18ab X 1.250, Spacer, (2) |
|
$ 12.05 | |||||
| NIA | 241842301 | Cap-thermistor |
|
Immediately | $ 34.02 | ||||
| NIA | 5304453707 | Screw, Quad Hilo, #8-18 X 0.50, (2) (Replaces: 241953901) |
|
Immediately | $ 15.92 | ||||
| NIAA | 241860104 | Gasket-coil Cover |
|
Immediately | $ 29.77 | ||||
| NIAB | 241860105 | Gasket-coil Cover |
|
Immediately | $ 17.87 | ||||
| NIB | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 17.11 | ||||
| NIB | 218515401 | Clip-grille |
|
$ 17.72 | |||||
| NIC | 241969001 | Cap, Screw |
|
$ 16.69 |
