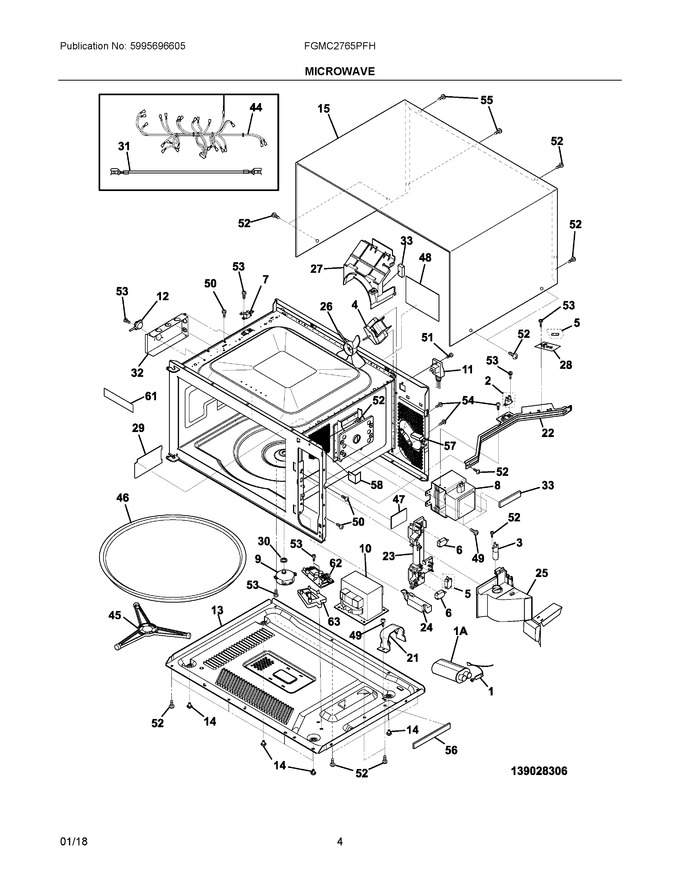

03 - Microwave


04 - Lower Oven


05 - Doors


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304493150		Rectifier Assembly, Hv, W/diode				$ 26.94
2	5303319550		Fuse, Magnetron				$ 117.23
3	5304500304		Lamp Assy, With Socket   (Replaces: 5304440779)				$ 63.79
4	5304493152		Motor, Cooling Fan				$ 87.43
5	5303319559		Switch, Monitor, W/ceramic Fuse				$ 85.43
6	5304493153		Switch, Interlock, Door Sensor			Immediately	$ 83.38
7	5304440780		Fuse, Cavity Temp, 20 Amp, 250 V				$ 85.76
8	5304521745		Magnetron   (Replaces: 5304472253)				$ 189.05
9	5304448832		Motor, Turntable   (Replaces: 5304440782)			Immediately	$ 74.09
10	5304473321		Transformer, Power				$ 253.64
11	5304478937		Power Cord, Electric				$ 68.75
12	5304440785		Sensor, Humidity, Cook Control				$ 56.18
13	5304493154		Base, Unit Chassis				$ 154.14
14	5304508428		Foot, Cabinet Support, (4)		Appelez-nous	-
15	5304478940		Cabinet, Outer Casing, Black				$ 320.30
21	5304478941		Retainer, Capacitor Strap		Appelez-nous	-
22	5304478942		Bracket, Chassis Support		Appelez-nous	-
23	5304503439		Latch Hook			Immediately	$ 60.62
24	5304485407		Lever, Door Release   (Replaces: 5304464899)				$ 63.36
25	5304478956		Duct, Magnetron		Appelez-nous	-
26	5304493155		Fan Blade, Cooling Fan				$ 16.30
27	5304493156		Duct, Cooling Fan		Appelez-nous	-
28	5304507217		Filter, Noise, Electronic				$ 97.83
29	5304478947		Cover, Waveguide		Appelez-nous	-
30	5304467718		Bushing, Motor Shaft, Turntable				$ 19.14
31	5304493157		Wire, High Voltage, B		Appelez-nous	-
32	5304478948		Duct, Humidity Sensor		Appelez-nous	-
33	5304478949		Cushion		Appelez-nous	-
44	5304507218		Wiring Harness, Main		Appelez-nous	-
45	5304467717		Support Assy, Turntable, Roller				$ 122.18
46	5304529482		Tray, Turntable, Glass   (Replaces: 5304440868)				$ 108.44
47	5304467771		Label, Caution-monitor		Appelez-nous	-
48	5304467770		Label, Caution-dhhs		Appelez-nous	-
49	5303319636		Screw, (5)		Appelez-nous	-
50	5303319641		Screw, (2)				$ 12.76
51	5304462315		Screw, 4 Mm X 12 Mm, Ground		Appelez-nous	-
52	5304451553		Screw, 4 Mm X 12 Mm				$ 14.89
53	5304453725		Screw, 3mm X 8mm		Appelez-nous	-
54	5304450253		Screw, 4 Mm X 8 Mm				$ 14.89
55	5304440873		Screw, Torx, Tamper Proof				$ 11.34
56	5304493206		Cushion, Base Plate		Appelez-nous	-
57	5304493208		Cushion, Fan Motor		Appelez-nous	-
58	5304493209		Cushion, Cavity, Control Panel		Appelez-nous	-
61	5304472847		Label, Menu		Appelez-nous	-
62	5304507220		Power Unit, Ac/dc Switching				$ 198.90
63	5304507222		Holder, Power Unit		Appelez-nous	-
1A	5304487566		Capacitor, High Voltage			Immediately	$ 122.62
NI	240442708		Screw, 10-32 X 3/4   (Replaces: 5304400794)				$ 8.34
