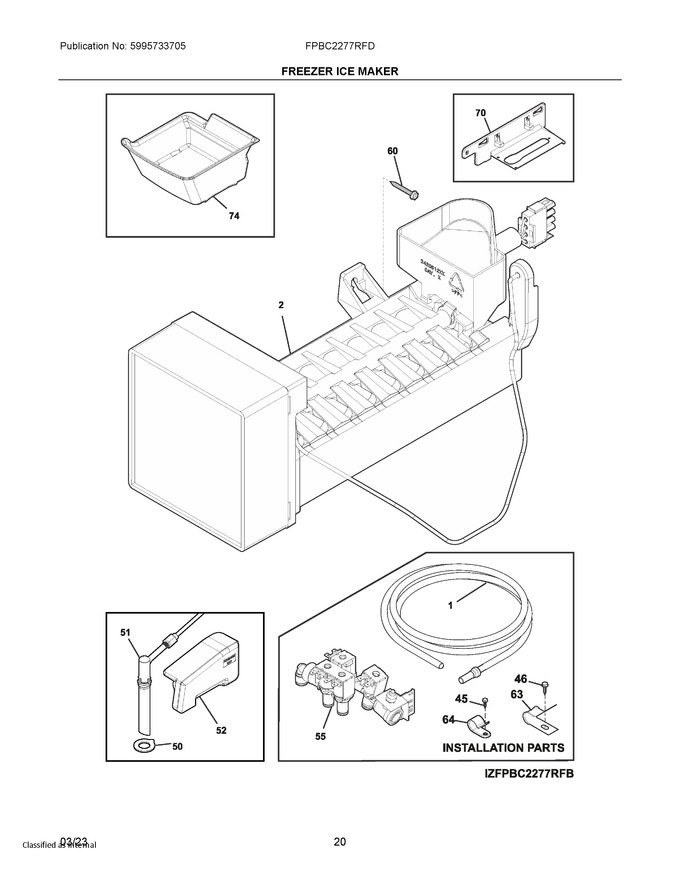

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976435 | Tube-water, 5/16-37", Yellow, Valve To, Back Connector |
|
$ 20.56 | |||||
| 2 | 5303918493 | Ice Maker, Radius Cube, 115 V, Service (Replaces: 241798219) |
|
Immediately | $ 231.95 | ||||
| 45 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| 46 | 5304453923 | Screw, Hex Hd Wshr, #8-32 X 1/2 |
|
- | |||||
| 51 | 242169404 | Tube-water, Ice Mold Fill, 1/4 - 44", Blue, W/extension |
|
- | |||||
| 55 | 242253002 | Valve-water, Quad Solenoid |
|
Immediately | $ 244.75 | ||||
| 60 | 5304455852 | Screw, Hex Washer Head, 8-15a X 1.000, (2) (Replaces: 5303207328) |
|
$ 12.76 | |||||
| 64 | 5304453921 | Clamp-cable |
|
- | |||||
| 70 | 242053001 | Bracket-ice Maker |
|
$ 51.03 | |||||
| 74 | 242128001 | Container-ice |
|
$ 194.90 | |||||
| 75 | 242240101 | Shield, Ice Bucket, Wide |
|
$ 76.92 | |||||
| NI | 241806601 | Connector, Water Tube, 5/16 To 5/16, Straight (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NIA | 5303918571 | Tube-water, Ice Mold Fill, Black, Extension (Replaces: 241844403) |
|
$ 164.24 | |||||
| NIA | 240363602 | Screw-shoulder |
|
$ 13.65 | |||||
| NIB | 241920106 | Tube-water, Ice Maker Fill, 5/16-54", Green, Back Connector, To Ff Ice Maker (Replaces: 241920104) |
|
Immediately | $ 60.67 | ||||
| NIC | 241964707 | Tube-water, 1/4-36", Light Green, Valve To, Back Connector |
|
Immediately | $ 18.43 | ||||
| NID | 241965906 | Tube-water, 5/16-67", Natural, Dispenser To, Back Connector |
|
Immediately | $ 24.10 |
