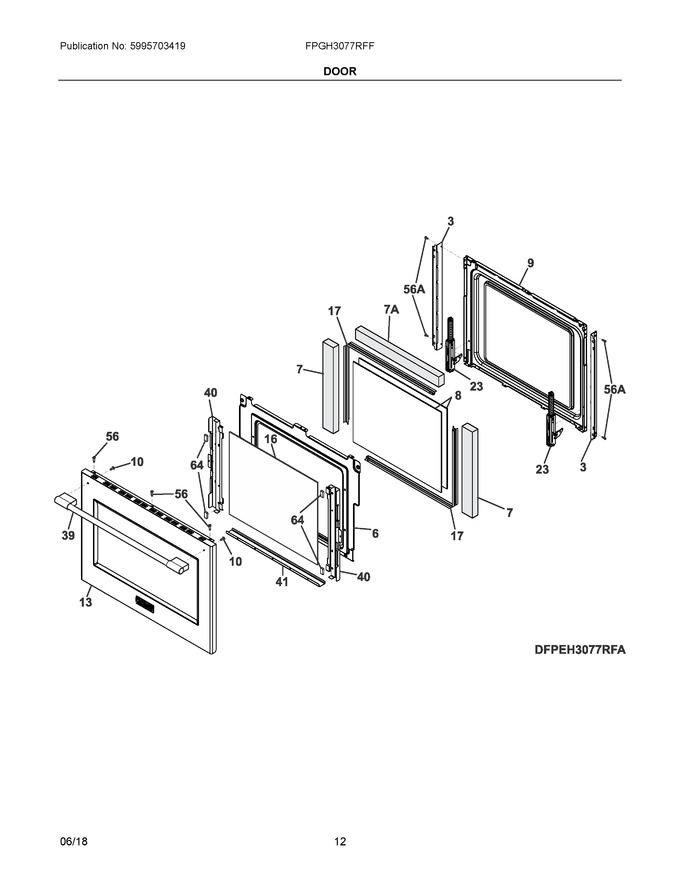

06 - Door


07 - Wiring Diagram


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5304520787		Trim, Oven Door, Black, Side Vent   (Replaces: 139036601)				$ 61.66
6	808474502		Shield, Wool, Oven Door				$ 108.45
7	5304505925		Insulation, Door, Upper				$ 15.17
8	316502500		Glass, Door, Inner, (2)   (Replaces: 316502502)			Immediately	$ 115.65
9	808474610		Liner, Oven Door, Black			Immediately	$ 129.68
10	5303310510		Screw, 10-24 X 0.625				$ 14.18
13	5304515578		Door Assembly, Outer, Stainless/black, W/trim & Badge				$ 387.14
16	316502601		Glass, Door, Airwash, Hbii			Immediately	$ 207.85
17	5304503172		Spacer, Door Glass, (2)   (Replaces: 316502101)				$ 25.79
23	139010306		Hinge, Door, Gold, Dual Spring				$ 143.33
39	808816703		Handle, Door/drawer, Stainless				$ 182.86
40	5304524357		Bracket, Glass, Airwash   (Replaces: 5304500141)				$ 41.72
41	5304500644		Support, Glass				$ 19.35
56	5303311306		Screw, 8-18 X 0.375		Appelez-nous	-
64	318165800		Spacer, Glass, Foam				$ 17.72
56A	5303324184		Screw, Truss Head, #8-32 X 3/8   (Replaces: 809136201)			Immediately	$ 14.18
7A	5304501946		Insualtion, Door, Side, (2)		Appelez-nous	-
NI	5303324184		Screw, 8-18 X 5/16, Black			Immediately	$ 14.18
NI	316483102		Label, Anti-tip   (Replaces: 316483100)				$ 3.56
NIA	316008401		Washer, Handle Screw, Flat   (Replaces: 5304490894)				$ 11.34
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
