SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door

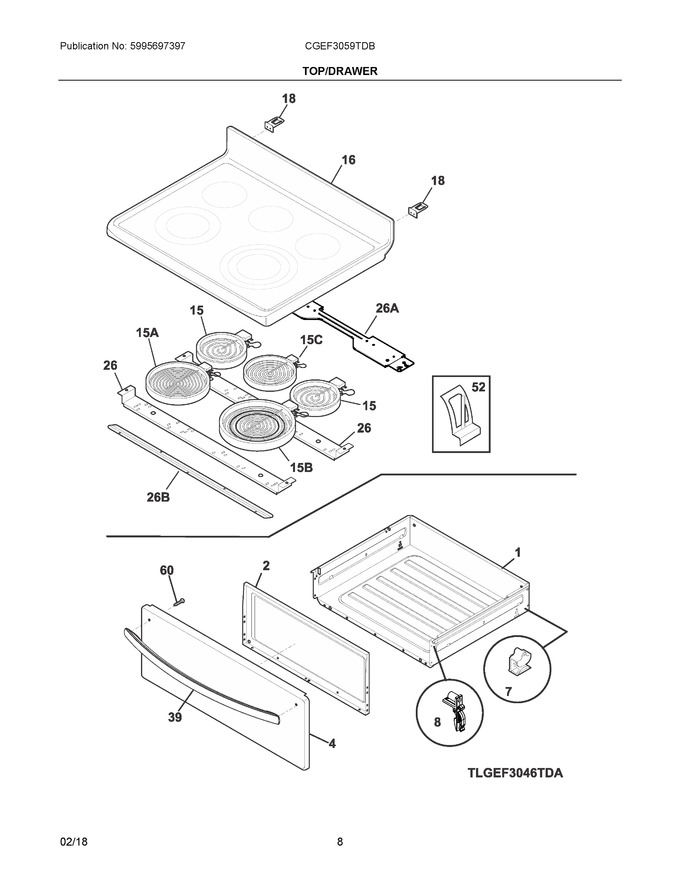

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer, Utility   (Replaces: 316408707)			Immediately	$ 110.61
2	5304527989		Liner, Drawer   (Replaces: 316403300)				$ 28.83
4	5304516891		Panel, Drawer, Black Stainless   (Replaces: 316352605)				$ 157.79
7	316407402		Glide, Drawer, Rear   (Replaces: 316407400)			Immediately	$ 9.86
8	807047202		Glide, Drawer, Front Rail, (2)				$ 12.89
15	318178110		Element, Surface, 6", 1200, (2), Radiant			Immediately	$ 122.86
16	5304513155		Smoothtop, Assembly, Black				$ 611.82
18	316580800		Bracket-hinge, Main Top			Immediately	$ 9.86
26	5304512926		Channel, Element Support				$ 46.22
39	316554009		Handle, Door/drawer, Black Stainless, W/spacers				$ 189.41
52	316461700		Clip, Element Mtg				$ 12.05
60	5303288572		Screw-handle Mtg		Appelez-nous	-
15A	5304533520		Element, Dual, 9"/6", Surface, 3000w, Quick Boil   (Replaces: 316282000)			Immediately	$ 90.14
15B	318297810		Element, Triple, 1200/2000/3000w, 6"/9"/12			Immediately	$ 356.54
15C	140273621015		Element, Surface, Warmer, 100 W   (Replaces: 316289800)			Immediately	$ 35.77
26A	316498200		Bracket-support, Chassis, Aluminum				$ 52.33
26B	316607600		Bracket, Chassis Support, Front				$ 52.33
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	5304509248		Harness, Surface Units				$ 146.74
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NIA	5308014215		Screw, 6-20 X 0.312				$ 2.28
