SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body

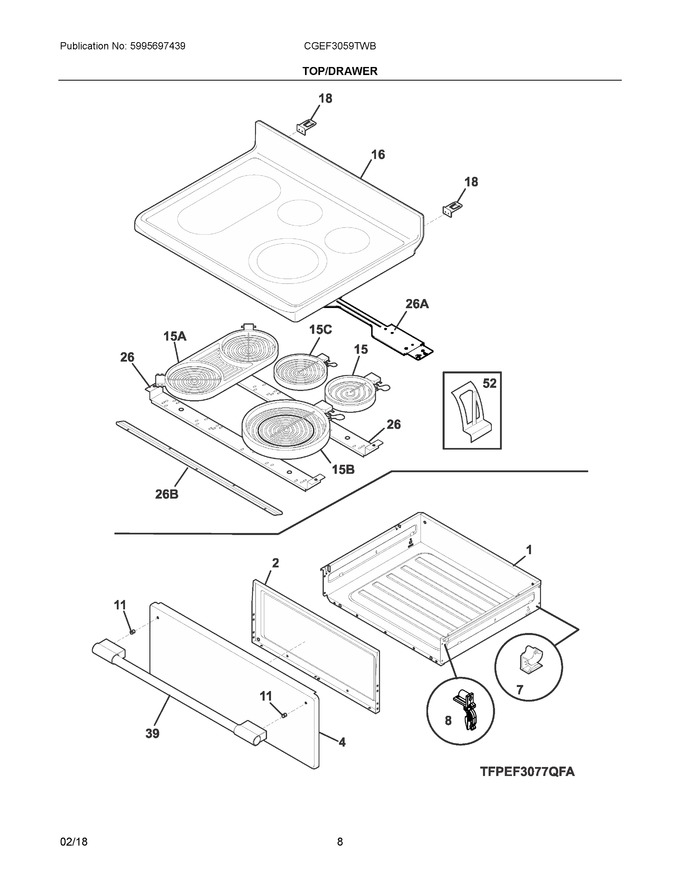

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
67	316505500		Element, Bake, 3000w			Immediately	$ 259.25
68	316404002		Support, Element, Broil   (Replaces: 316404000)				$ 8.75
71	316283204		Shield, Rear Wall				$ 56.12
86	316441300		Receptacle, Hinge				$ 21.97
87	316081202		Bracket, Cable Mtg				$ 4.96
88	316203500		Rod, Auto Latch				$ 72.30
89	5304528973		Motor-latch   (Replaces: 316464300)			Immediately	$ 52.34
106	316404100		Bracket, Motor Mtg.				$ 63.70
107	316026701		Cover, Fan				$ 408.89
108	316256100		Motor-fan			Immediately	$ 211.18
109	318398302		Fan Blade			Immediately	$ 29.11
111	316136600		Nut, Fan Retainer			Immediately	$ 19.13
151	316404601		Shield, Bodyside				$ 21.27
161	316211603		Element, Convection Fan, 350 W				$ 255.86
170	316112005		Anti Tip Kit, Assy, W/template			Immediately	$ 18.91
NI	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NI	5304516176		Harness, Wiring, Main   (Replaces: 5304509242)				$ 124.68
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316089501		Screw, 10-16		Appelez-nous	-
NI	5303289910		Screw, Truss Sqdr, 8a X 1", 62*				$ 5.67
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NIA	316112005		Bracket, Anti-tip			Immediately	$ 18.91
NIB	316116000		Screw, Concrete, 1.75", Anti-tip Brkt				$ 12.89
NIC	316112005		Template, Anti-tip			Immediately	$ 18.91

    View Diagram in Separate Window       Print Part List
