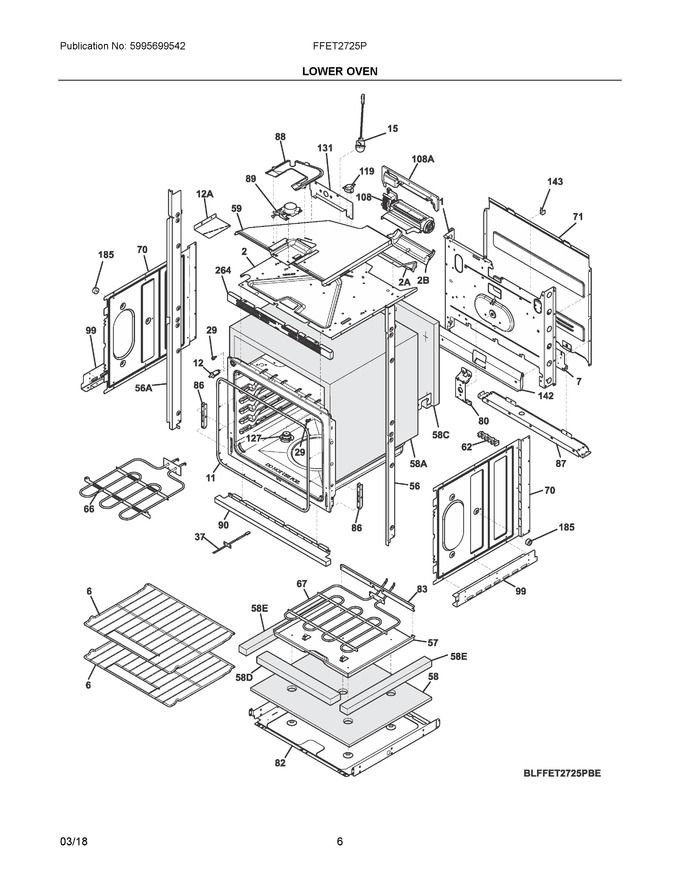

04 - Lower Oven
05 - Doors
06 - Wiring Diagram
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304506959 | Panel, Main Back |
|
- | |||||
| 2 | 139027805 | Shield, Insulation, Top |
|
- | |||||
| 6 | 139011901 | Rack, Oven, W/handle (Replaces: 139011900) |
|
$ 36.24 | |||||
| 7 | 5304506960 | Panel, Service, Main Back |
|
- | |||||
| 11 | 807545501 | Seal, Oven Door, Gray |
|
Immediately | $ 81.39 | ||||
| 12 | 808136601 | Switch, Light, Door (Replaces: 318394802) |
|
Immediately | $ 44.04 | ||||
| 15 | 5304528790 | Lamp Assembly, Round, Halogen, W/lens, W/bulb (Replaces: 139009000) |
|
Immediately | $ 20.56 | ||||
| 29 | 316517600 | Bumper, Front, Main |
|
$ 12.05 | |||||
| 37 | 5304504897 | Sensor, Oven Temp Probe |
|
Immediately | $ 48.13 | ||||
| 56 | 318903676 | Trim, Side Filler, Black, Rh |
|
$ 126.86 | |||||
| 57 | 5304538692 | Box, Bake Element (Replaces: 5304506949) |
|
- | |||||
| 58 | 5304506952 | Insulation, Bake Element, Lower |
|
$ 77.26 | |||||
| 59 | 139015700 | Duct, Cooling, Lower Oven |
|
- | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 316056000) |
|
Immediately | $ 26.69 | ||||
| 66 | 5304523477 | Element, Broil, 6 Pass, 3400w (Replaces: 139028200) |
|
$ 235.85 | |||||
| 67 | 140010667149 | Element, Hidden Bake, 2500w (Replaces: 5304506946) |
|
$ 55.23 | |||||
| 70 | 139000601 | Shield, Insulation, Sides, (2) (Replaces: 139000600) |
|
$ 72.05 | |||||
| 71 | 139022000 | Shield, Rear Wire, Main Back |
|
- | |||||
| 80 | 139021101 | Bracket, Support, Chassis/fan |
|
$ 14.89 | |||||
| 82 | 5304506947 | Shield, Insulation, Lower |
|
- | |||||
| 83 | 5304506951 | Shield, Bake Element, Rear |
|
- | |||||
| 86 | 318561100 | Receptacle, Hinge, (2) |
|
$ 21.23 | |||||
| 87 | 139021900 | Bracket, Cable Mtg. |
|
- | |||||
| 88 | 5304506963 | Cover, Latch Motor, Lower Oven |
|
- | |||||
| 89 | 5304528835 | Motor, Latch Assy., 2 Terminals (Replaces: 139021303) |
|
Immediately | $ 74.12 | ||||
| 90 | 318259847 | Trim, Base, Black |
|
$ 131.83 | |||||
| 99 | 318256201 | Bracket, Side, Bottom, (2) |
|
$ 56.70 | |||||
| 108 | 139038301 | Blower Assembly, Cooling, Cross Flow, W/baffle |
|
$ 188.21 | |||||
| 119 | 318578505 | Thermostat, Safety, 115c |
|
- | |||||
| 127 | 5304538693 | Tube Assembly, Vent, W/catalyst (Replaces: 139042600) |
|
Immediately | $ 10.03 | ||||
| 131 | 5304506962 | Cover, Center Rear, Cross Flow |
|
- | |||||
| 142 | 5304506953 | Sheild, Air Deflector, Back |
|
- | |||||
| 143 | 318172904 | Support, Wire |
|
- | |||||
| 185 | 318531800 | Spacer, Oven Shield, (2) |
|
$ 12.76 | |||||
| 264 | 139013501 | Trim, Center Vent, Black |
|
- | |||||
| 108A | 139015300 | Bracket, Fan Mtg., Cross Flow |
|
- | |||||
| 12B | 807641201 | Shield, Door Switch |
|
$ 64.49 | |||||
| 2A | 139015900 | Shield, Fan, Cross Flow |
|
- | |||||
| 2B | 139038901 | Housing, Fan, Air Diverter |
|
$ 31.19 | |||||
| 56A | 318903677 | Trim, Side Filler, Black, Lh |
|
- | |||||
| 58A | 139001701 | Insulation, Oven Wrapper, 27", Top & Sides |
|
- | |||||
| 58C | 5304506954 | Insulation, Oven, Back |
|
- | |||||
| 58D | 5304506965 | Insulation, Bake Element, Front |
|
- | |||||
| 58E | 5304506966 | Insulation, Bake Element, Side |
|
- | |||||
| NI | 5304470882 | Screw, Anti-tip, 8 - 5/8, Black, (2) |
|
$ 13.46 | |||||
| NI | 318165800 | Spacer, Glass, Foam |
|
$ 17.72 | |||||
| NI | 5304506955 | Harness Assembly, Conduit, Elbow Connector, & Wiring |
|
$ 174.43 | |||||
| NI | 5304511500 | Harness, Wiring, Main |
|
- | |||||
| NI | 5304517285 | Harness Assembly, Filter, Electrical, W/capacitors (Replaces: 5304500988) |
|
$ 38.68 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NIA | 318946500 | Bulb, Halogen, G9, 25w, 120v |
|
Immediately | $ 60.44 | ||||
| NIA | 316205500 | Nut, Hex Flange, 3/8 10-32 |
|
$ 11.34 | |||||
| NIA | 316418900 | Screw, Sims Lp, #8-32 X 5/16", Black |
|
$ 14.18 | |||||
| NIA | 5304507702 | Harness, Wiring, Lower Oven, Mdl Ads |
|
- | |||||
| NIA | 807597603 | Screw, Self Tapping, 8-18 X 11/32, (4) |
|
$ 9.22 | |||||
| NIA | 139022101 | Insualtion, Noise Dampening |
|
- | |||||
| NIA | 316001017 | Screw, Ground Wire (Replaces: 316001003) |
|
$ 3.03 | |||||
| NIB | 5303289910 | Screw, Truss Sqdr, 8a X 1", 62* |
|
$ 5.67 | |||||
| NIB | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NIBA | 316021119 | Screw, Ab Nickel, 8-18 X 11/16 |
|
- |
