SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel

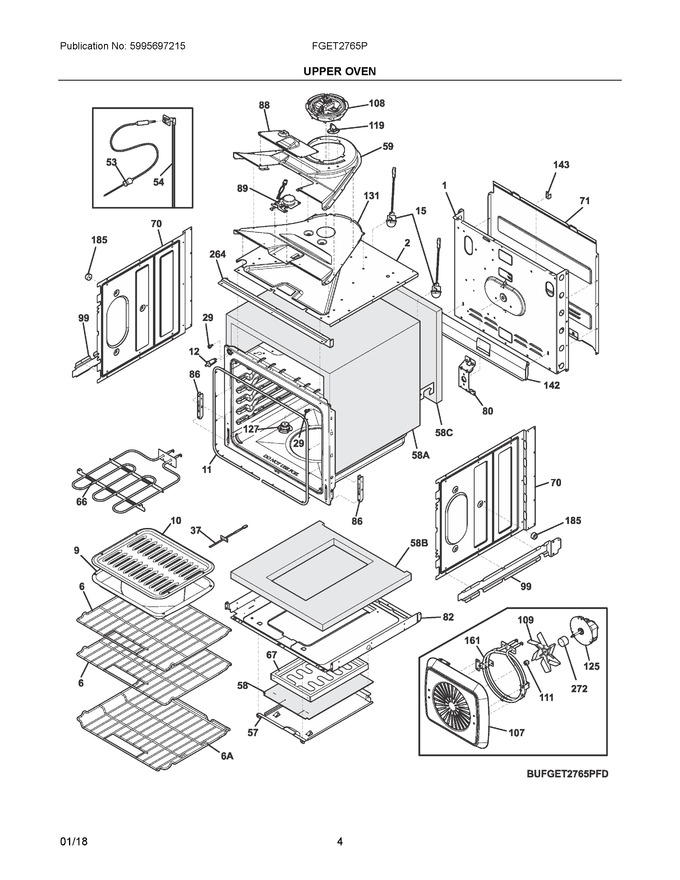

03 - Upper Oven


04 - Lower Oven


05 - Doors


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	139003804		Panel, Main Back		Appelez-nous	-
2	139027804		Shield, Insulation, Top		Appelez-nous	-
6	139011901		Rack, Oven, W/handle   (Replaces: 139011700)				$ 36.24
9	316081900		Pan, Broileroptional Access0ry				$ 65.89
10	5304494997		Insert, Broiler Panoptional Access0ry				$ 72.01
11	807545501		Seal, Oven Door, Gray			Immediately	$ 81.39
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 44.04
15	5304528790		Lamp Assembly, Round, Halogen, W/lens, W/bulb   (Replaces: 139009000)			Immediately	$ 20.56
29	316517600		Bumper, Front, Main				$ 12.05
37	5304504897		Sensor, Oven Temp Probe			Immediately	$ 48.13
53	5304504202		Probe, Meat Temp, Red			Immediately	$ 106.19
54	139017203		Receptacle Assy, Meat Probe			Immediately	$ 153.09
57	139021200		Panel, Service, Bake Element				$ 32.31
58	139022100		Insualtion, Bake Element		Appelez-nous	-
59	139027600		Duct, Cooling Fan, Upper				$ 85.76
66	5304523477		Element, Broil, 6 Pass, 3400w   (Replaces: 139028200)				$ 235.85
67	318902502		Element, Hidden Bake, 1450w			Immediately	$ 205.21
70	139000601		Shield, Insulation, Sides, (2)   (Replaces: 139000600)				$ 72.05
71	139022000		Shield, Rear Wire, Main Back		Appelez-nous	-
80	139021101		Bracket, Support, Chassis/fan				$ 14.89
82	139003101		Shield, Insulation, Lower				$ 91.01
86	318561100		Receptacle, Hinge, (2)				$ 21.23
88	5304506964		Cover, Latch Motor   (Replaces: 139027900)				$ 24.10
89	139021302		Motor, Latch Assy., 2 Pole				$ 147.56
99	139005201		Bracket, Support, Side, (2)		Appelez-nous	-
107	139013903		Cover, Convection Fan				$ 46.86
108	318575612		Motor Assembly, Cooling Fan			Immediately	$ 196.61
109	318398302		Blade, Fan, Convection   (Replaces: 139009100)			Immediately	$ 29.11
111	316136600		Nut, Fan Retainer			Immediately	$ 19.13
119	318578506		Thermostat, Safety, 105c			Immediately	$ 58.19
125	139008502		Motor, Convection Fan				$ 139.48
127	5304538693		Tube Assembly, Vent, W/catalyst   (Replaces: 139042600)			Immediately	$ 10.03
131	139027700		Duct, Cooling Fan, Lower				$ 73.00
142	139021800		Shield, Air Deflector, Main Back		Appelez-nous	-
143	318172904		Support, Wire		Appelez-nous	-
161	8581390065036		Element, Convection, 2500w   (Replaces: 139006500)				$ 47.63
185	318531800		Spacer, Oven Shield, (2)				$ 12.76
264	139003501		Trim, Vent, Black, Front				$ 36.20
272	139021700		Tube, Convection Fan				$ 17.72
58A	139001701		Insulation, Oven Wrapper, 27", Top & Sides		Appelez-nous	-
58B	139021501		Insulation, Oven Bottom				$ 31.19
58C	139021401		Insulation, Oven Back		Appelez-nous	-
6A	139012500		Rack, Oven, Offset, W/handle				$ 88.72
NI	807597603		Screw, Self Tapping, 8-18 X 11/32, (4)				$ 9.22
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NIA	5304503213		Harness, Wiring, Upper Oven, Mdl Ads		Appelez-nous	-
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NIA	318579001		Bracket, Wire				$ 11.08
NIA	318231870		Wiring Harness, Bake Element				$ 83.42
NIA	318946500		Bulb, Halogen, G9, 25w, 120v			Immediately	$ 60.44
NIB	5303288566		Screw, 8 X 1/4, (4)   (Replaces: 5303323130)				$ 2.12
NIB	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
