01 - Cover Sheet


02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram

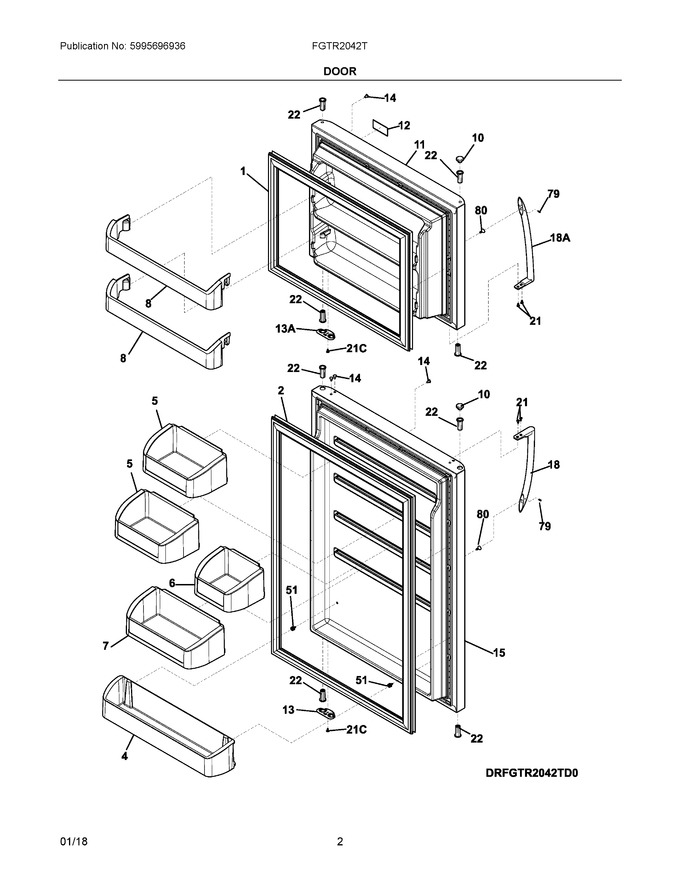

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241872505		Gasket-frzr Door, White, Magnetic   (Replaces: 242193205)				$ 162.93
2	242193213		Gasket-refr Door, White, Magnetic			Immediately	$ 190.22
4	5304498927		Bin, Door, Full Width, White, Refrigerator, Pseudo				$ 92.14
5	242308202		Bin, Door, 1/2 Width				$ 63.32
6	242324202		Bin, Door, 1/3 Width				$ 55.10
7	242324302		Bin, Door, 2/3 Width				$ 79.97
8	5304498909		Bin, Door, Clear, Freezer, (2), Pseudo			Immediately	$ 63.29
10	240381301		Plug-button, White, Hinge Brg Hole, (2)			Immediately	$ 18.95
11	241798423		Door, Freezer, White, Complete Assy				$ 444.63
12	5304512151		Nameplate, White				$ 29.77
13	240312421		Door Stop, White, Ref				$ 15.17
14	240494001		Plug-button, White, Cab Liner Holes			Immediately	$ 18.20
15	241798556		Door, Refrigerator, White, Complete Assy				$ 375.09
18	5303918823		Handle-door, White, Refr-rh/frzr-lh   (Replaces: 241977503)			Immediately	$ 52.33
21	240383407		Screw, Truss Hd Quad, #10-16 X .500, White				$ 12.76
22	5304507146		Bearing-hinge, Natural Color   (Replaces: 240527101)			Immediately	$ 7.59
51	242039702		Screw, Shoulder, #10-16, (2)				$ 4.26
79	218755405		Screw-set, 10-32 X 0.500   (Replaces: 218755407)			Immediately	$ 20.56
80	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 18.60
13A	240312414		Door Stop, White, Frzr				$ 19.13
18A	5303918823		Handle-door, White, Refr-lh/frzr-rh   (Replaces: 241977504)			Immediately	$ 52.33
21C	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 14.18
NIA	241601001		Wrench, Allen		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
