SELECT A DIAGRAM

01 - Cabinet


02 - Chassis Assy & Control Panel


03 - Control Panel/trim


04 - Door Latch


05 - Electrical Parts & Components


06 - Electrical Parts & Components


07 - Lower Oven Components


08 - Microwave Door Assy


09 - Oven Door

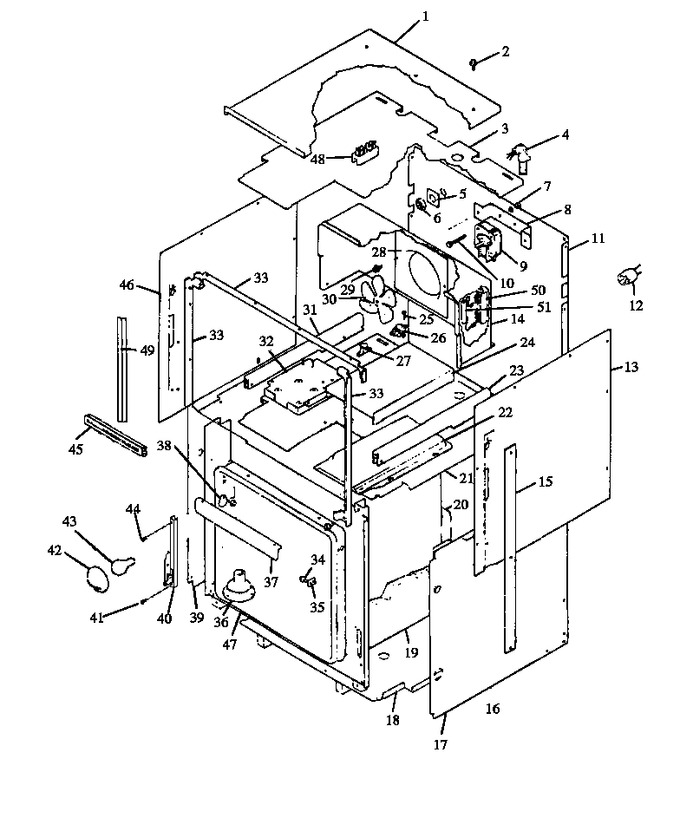

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0040286		Cabinet Top Pyro W.o. Mm		Appelez-nous	-
2	Y0309016		Screw, No.8-18 X 3/8 P Hex Wsh T		Appelez-nous	-
3	Y0053064		Top, Upper Oven		Appelez-nous	-
4	Y0052947		Assy, Conduit		Appelez-nous	-
5	Y0040881		Fuse Box Reinforcement Brkts		Appelez-nous	-
6	Y00000000		See Note Locknut -- (part Of Conduit Assy)		Appelez-nous	-
7	M0282005		Nut, Hex Keps No.6-32   (Replaces: 31750119)				$ 7.07
8	Y0305242		Bracket-motor Mount		Appelez-nous	-
9	Y0042226		Fan Motor		Appelez-nous	-
10	Y0309016		Screw, No.8-18 X 3/8 P Hex Wsh T		Appelez-nous	-
10	31750301		Screw No.6-32 X 1.00 Plain		Appelez-nous	-
11	Y0040350		Upper Cabinet Back 692		Appelez-nous	-
12	WP74011278		Assy, Oven Light   (Replaces: 74011278)				$ 101.56
13	Y0040320		Upper Cabinet Side Rt 692		Appelez-nous	-
14	Y0307545		Housing, Microwave Fan		Appelez-nous	-
15	Y0040796		Capillary Shield Do-692		Appelez-nous	-
17	Y0316868		Retainer, Insulation-side		Appelez-nous	-
18	Y0316867		Oven Bottom-lower		Appelez-nous	-
19	Y0041113		Sub 41966, Insulation		Appelez-nous	-
19	Y0041976		Sub 41966, Insulation		Appelez-nous	-
20	Y0059743		Back Cabinet		Appelez-nous	-
21	Y0052848		Upper Oven Top		Appelez-nous	-
22	306384B		Box, Upper Oven Flue		Appelez-nous	-
23	0307802		Support, Runner		Appelez-nous	-
24	Y0040842		Flue Box Cover Rep 915		Appelez-nous	-
25	Y0309016		Screw, No.8-18 X 3/8 P Hex Wsh T		Appelez-nous	-
26	Y0042056		Switch Fan Spdt		Appelez-nous	-
27	Y0042045		Limit Control-upper Oven-200		Appelez-nous	-
28	Y0040905		Back, Cont Comp		Appelez-nous	-
29	Y0305243		Grommet-fan		Appelez-nous	-
30	Y0314548		Blade, Fan		Appelez-nous	-
31	0307802		Support, Runner		Appelez-nous	-
32	Y0040903		Latch Mtg. Brkt Pyro W/o		Appelez-nous	-
33	307873B		Support, Microwave (blk)		Appelez-nous	-
34	Y0309016		Screw, No.8-18 X 3/8 P Hex Wsh T		Appelez-nous	-
35	Y0063351		Capillary Hole Cover		Appelez-nous	-
36	Y0058526		Smoke Eliminator		Appelez-nous	-
36	Y0042409		Smoke Eliminator Vent Tube		Appelez-nous	-
37	Y0040850		Shield, Reflector		Appelez-nous	-
38	Y0040848		Probe Recept. Cover Stainless		Appelez-nous	-
39	Y0316868		Retainer, Insulation-side		Appelez-nous	-
40	Y0315426		Assy, Oven Hinge Lt				$ 50.99
40	Y0315425		Assy, Oven Hinge Rt		Appelez-nous	-
41	WP4159193		Screw, No.10-32x 5/16 Pan Ph H   (Replaces: Y0317065)				$ 4.29
42	WP74011278		Assy, Oven Light   (Replaces: 74011278)				$ 101.56
43	Y0042175		Bulb, Light		Appelez-nous	-
44	WP7101P126-60		Screw, No.10-12 X 500`` Ab (zn)   (Replaces: Y0317066)			Immediately	$ 6.85
45	0307826		Guide, Latch Handle		Appelez-nous	-
46	Y0040321		Upper Cabinet Side Lt 692		Appelez-nous	-
47	314314CG		Weld, Oven Shell		Appelez-nous	-
48	Y0042222		Terminal Block		Appelez-nous	-
49	Y0307823		Brkt., Trim Mtg.		Appelez-nous	-
50	Y0042191		Term Blk Eo&go 1m-2.5m-5m-10m		Appelez-nous	-
51	Y0042064		Resistor		Appelez-nous	-
NI	Y0041017		Bracket, Oven Mounting-pyro		Appelez-nous	-
NI	Y0041019		Runner, Base-pyro W/o		Appelez-nous	-
NI	0040405		Chip Cover Pyro Wo		Appelez-nous	-
NI	Y0041804		Screw No.8x11/4 Ph F H		Appelez-nous	-
NI	Y0307205		Brkt, Trim Corner		Appelez-nous	-
NI	0307543		Runner, Rt		Appelez-nous	-
NI	0307544		Runner, Lf		Appelez-nous	-
NI	0305420		Retainer, Insulation-rear		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
