SELECT A DIAGRAM
01 - Bulbs
02 - Controls
03 - Door/outer Cabinet
04 - Interior Components
New Model Search:

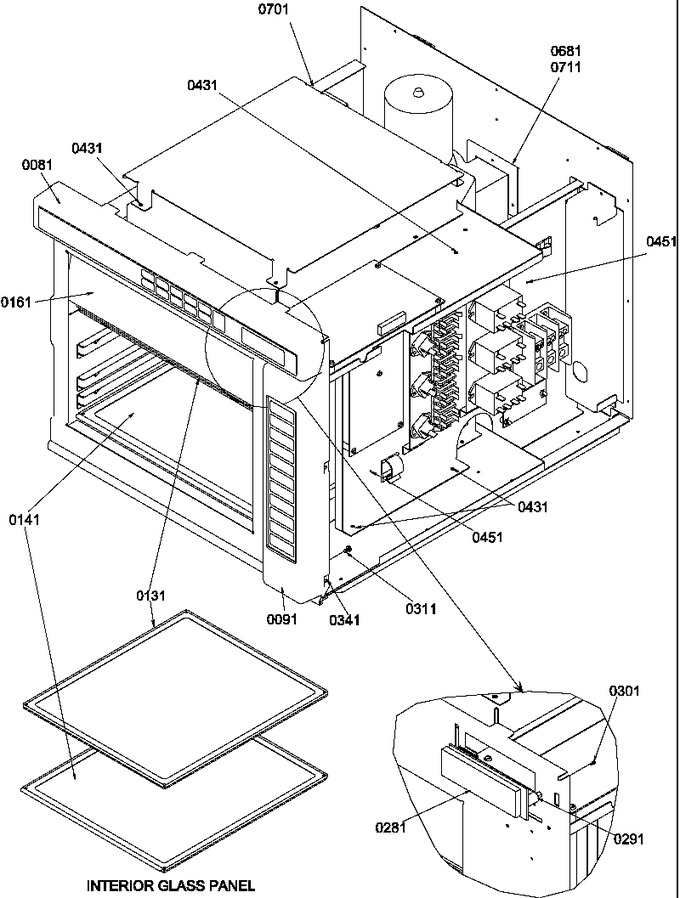

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 81 | R0150179 | Touch Panel (top) |
|
- | |||||
| 91 | R0150182 | Touch Panel (side) |
|
- | |||||
| 131 | 12265601 | Up Panel Weld |
|
- | |||||
| 141 | 12265801 | Lw Panel Weld |
|
- | |||||
| 161 | 12256301 | Facade-cavity |
|
- | |||||
| 281 | 12040201 | Vfd- Mod (lighted Display) |
|
- | |||||
| 291 | M0800401 | Spacer-hex |
|
- | |||||
| 301 | M0223416 | Screw-mach |
|
- | |||||
| 311 | M0218118 | Screw |
|
- | |||||
| 341 | M0287001 | Nut-speed |
|
- | |||||
| 431 | WP489128 | Screw (Replaces: M0253516) |
|
$ 9.79 | |||||
| 451 | M0234403 | Screw |
|
- | |||||
| 681 | 12255801 | Plate, Blwr Tap |
|
- | |||||
| 701 | 12256201 | Shield-heat |
|
- | |||||
| 711 | 12235402 | Screen-wire |
|
- |
