SELECT A DIAGRAM

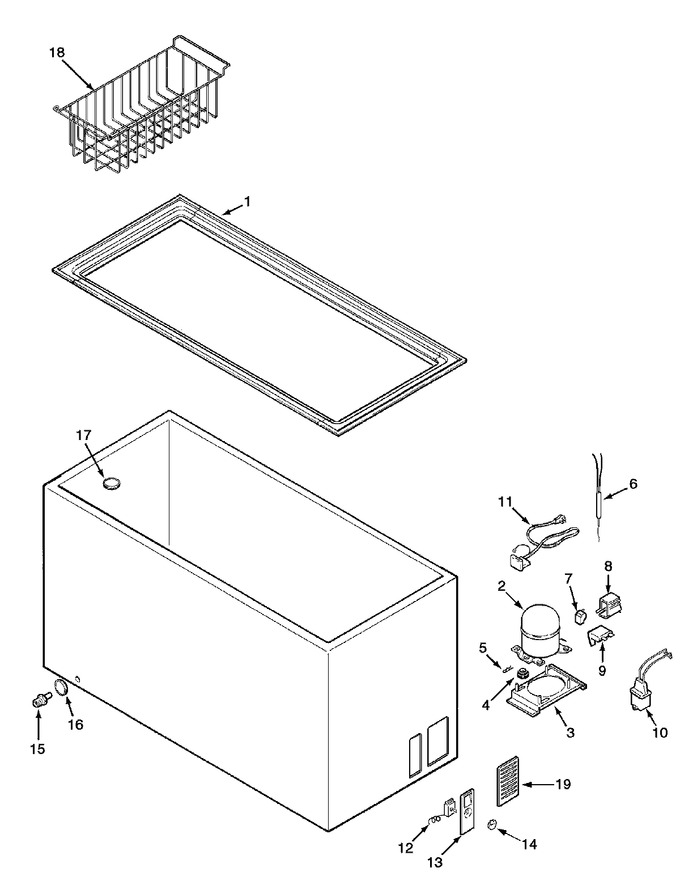

01 - Cabinet


02 - Lid


03 - Supplemental Information


04 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4-35011-004		Breaker Strip (frt.)   (Replaces: 68001183)	L0			$ 75.80
1	W11045300		Breaker Strip (end)   (Replaces: 68001184)	L0			$ 80.74
1	4-35010-004		Breaker Strip (back)   (Replaces: 68001185)	L0	Appelez-nous	-
2	W10309989		Kit, Compressor (r134a)   (Replaces: 68001458)	L0		Immediately	$ 591.26
3	3-81556-001		Bracket, Base   (Replaces: 68001313)	L0	Appelez-nous	-
3	68001166		Base, Compressor	L0	Appelez-nous	-
4	Y09100025		Grommet, Compressor	L0	Appelez-nous	-
5	Y09100099		Clip, Compressor	L0	Appelez-nous	-
6	WPW10143759		Drier   (Replaces: 13900-1)	L0		Immediately	$ 27.70
7	68001368		Relay, Start	L0	Appelez-nous	-
8	68001167		Cover, Terminal	L0	Appelez-nous	-
9	WP2214067		Overload   (Replaces: 68001459)	L0			$ 118.49
10	WPW10662129		Capacitor, Run (w/wires)   (Replaces: Y09100173)	L0		Immediately	$ 52.97
11	488946		Clip   (Replaces: 68001450)	L0			$ 18.41
11	68001602		Wire Harness W/power Cord	L0	Appelez-nous	-
12	WP4-35940-001		Control, Temperature   (Replaces: 68001451)	L0			$ 148.16
13	68001147		Decal, Control Box	L0	Appelez-nous	-
13	W10682894		Box Kit, Temp. Control   (Replaces: 68001311)	L0	Appelez-nous	-
13	3-24004-049		Screw   (Replaces: 68001170)	L0	Appelez-nous	-
14	68001452		Knob, Temp. Control	L0	Appelez-nous	-
15	W11663505		Adapter, Drain   (Replaces: Y09100110)	L0			$ 15.45
16	68001312		Cap, Drain	L0	Appelez-nous	-
17	68001312		Cap, Drain	L0	Appelez-nous	-
18	Y09100020		Basket	L0	Appelez-nous	-
18	68001587		Rail, Basket	L0	Appelez-nous	-
18	68001588		Rivet	L0	Appelez-nous	-
19	68001129		Panel, Access	L0	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
