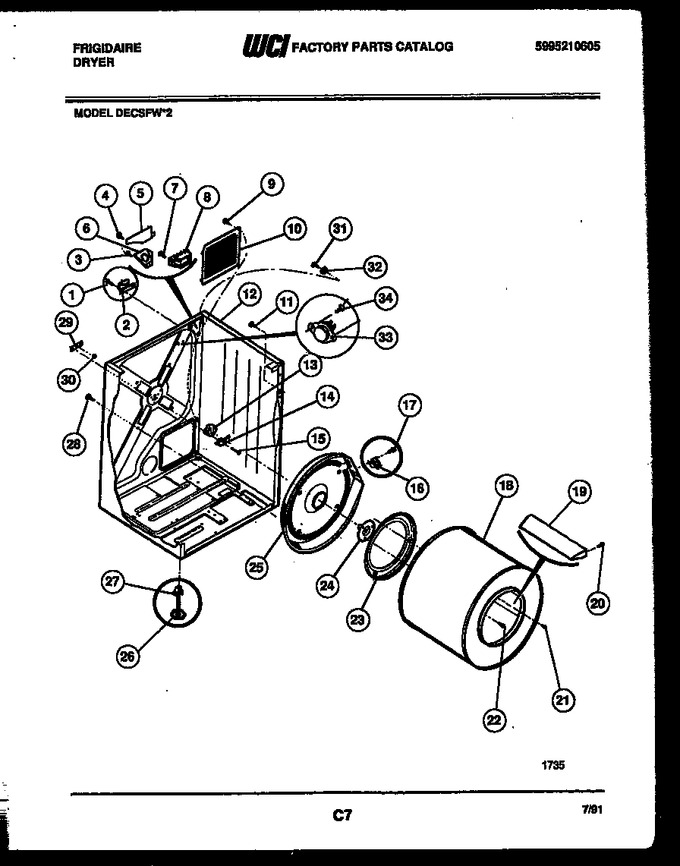

02 - Cabinet And Component Parts


03 - Door Parts


04 - Console And Control Parts


05 - Blower And Drive Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08011338		Screw (4)		Appelez-nous	-
2	3281175		Hinge (2)				$ 10.16
3	3281041		Screw (2)		Appelez-nous	-
4	3281043		Screw		Appelez-nous	-
5	3281042		Cover-terminal Block		Appelez-nous	-
6	3281040		Bracket		Appelez-nous	-
7	3281024		Screw (2)		Appelez-nous	-
8	3016470		Terminal Block		Appelez-nous	-
9	3281035		Screw (2)		Appelez-nous	-
10	3281018		Cover Plate		Appelez-nous	-
11	3010202		Screw (4)		Appelez-nous	-
12	5303269963		Cabinet Assy White		Appelez-nous	-
13	3281008		Bearing (parts Contained In Rear Bearing Kit.)		Appelez-nous	-
14	3281023		Bracket Bearing Support (parts Contained In Rear Bearing		Appelez-nous	-
15	3281033		Screw (2) (parts Contained In Rear Bearing Kit.)		Appelez-nous	-
16	3281113		Thermostat		Appelez-nous	-
17	3281035		Screw (2)		Appelez-nous	-
18	3201199		Drum				$ 246.86
19	3201200		Vane (3)		Appelez-nous	-
20	3201201		Screw (9)		Appelez-nous	-
21	3281029		Screw (3)		Appelez-nous	-
22	3281027		Screw (3) (parts Contained In Rear Bearing Kit.)		Appelez-nous	-
23	3201198		Baffle		Appelez-nous	-
24	3281009		Shaft (parts Contained In Rear Bearing Kit.)		Appelez-nous	-
25	3937010		Heater Assembly   (Replaces: 5303269829)			Immediately	$ 193.49
26	3281032		Foot Bolt (4)		Appelez-nous	-
27	3201202		Grommet (4)				$ 22.47
28	3010202		Screw (4)		Appelez-nous	-
29	3281020		Nut Flat (parts Contained In Rear Bearing Kit.)		Appelez-nous	-
30	3281019		Ball (parts Contained In Rear Bearing Kit.)		Appelez-nous	-
31	3281106		Ground Screw		Appelez-nous	-
32	3281107		Ground Washer		Appelez-nous	-
33	3205659		Thermal Limiter		Appelez-nous	-
34	08010804		Screw		Appelez-nous	-
*41775	3281153		Rear Bearing Kit		Appelez-nous	-
