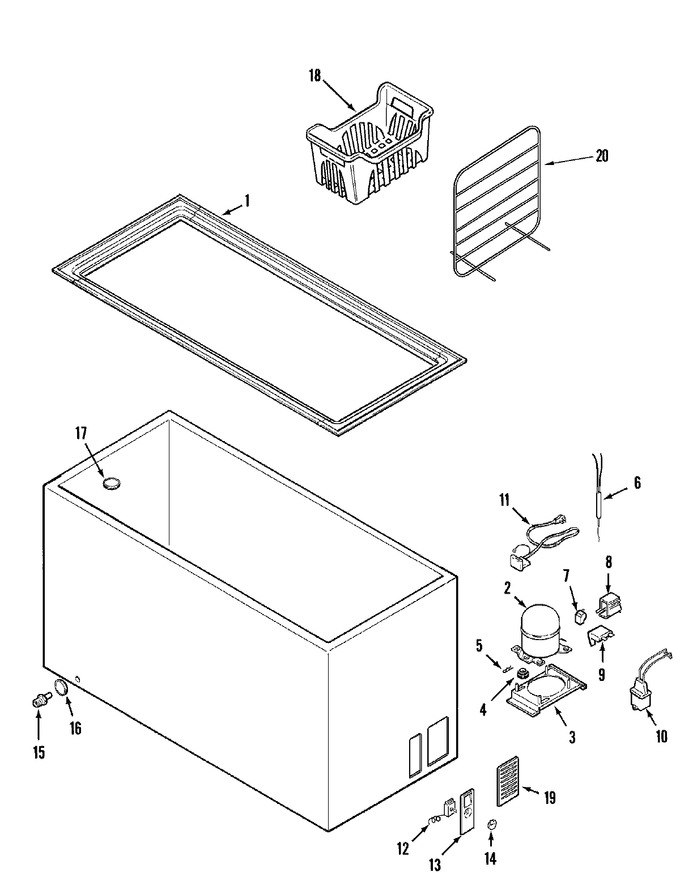

01 - Cabinet


02 - Lid


03 - Supplemental Information


04 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11045300		Breaker Strip (end)   (Replaces: 68001184)	10			$ 80.74
1	4356641		Breaker Strip (frt.)   (Replaces: 68001277)	10	Appelez-nous	-
1	W11045298		Breaker Strip (back)   (Replaces: 68001278)	10	Appelez-nous	-
2	W10309994		Compressor Kit   (Replaces: 68001279)	10		Immediately	$ 551.61
3	68001166		Base, Compressor	10	Appelez-nous	-
3	3-81556-001		Bracket, Base   (Replaces: 68001631)	10	Appelez-nous	-
4	Y09100025		Grommet, Compressor	10	Appelez-nous	-
5	Y09100099		Clip, Compressor	10	Appelez-nous	-
6	WPW10143759		Drier   (Replaces: 13900-1)	10		Immediately	$ 27.70
7	68001368		Relay, Start	10	Appelez-nous	-
8	2217635		Cover, Terminal   (Replaces: 68001478)	10	Appelez-nous	-
9	68001479		Overload	10	Appelez-nous	-
10	68001632		Capacitor, Run (w/wires)	10	Appelez-nous	-
11	488946		Clip, Wire Harness   (Replaces: 68001243)	10			$ 18.41
11	4-35136-002		Wire Harness W/power Cord   (Replaces: R0000143)	10			$ 213.24
12	WP4-35940-001		Control, Temperature   (Replaces: 68001451)	10			$ 148.16
13	3-24004-049		Screw   (Replaces: 68001170)	10	Appelez-nous	-
13	W10682894		Box, Temp. Control   (Replaces: 68001633)	10	Appelez-nous	-
14	68001452		Knob, Temp. Control	10	Appelez-nous	-
14	68001169		Clip, Knob	10	Appelez-nous	-
15	W11663505		Adapter, Drain   (Replaces: Y09100110)	10			$ 15.45
16	68001312		Cap, Drain	10	Appelez-nous	-
17	68001312		Cap, Drain	10	Appelez-nous	-
18	68001710		Basket, Lower (lg-plastic)	10	Appelez-nous	-
18	68001711		Rail, Lower Basket	10	Appelez-nous	-
18	68001588		Rivet	10	Appelez-nous	-
18	68001709		Basket, Upper (lg-plastic)	10			$ 74.76
19	68001129		Panel, Access	10	Appelez-nous	-
20	68001112		Divider	10	Appelez-nous	-
