SELECT A DIAGRAM

01 - Top And Console Parts

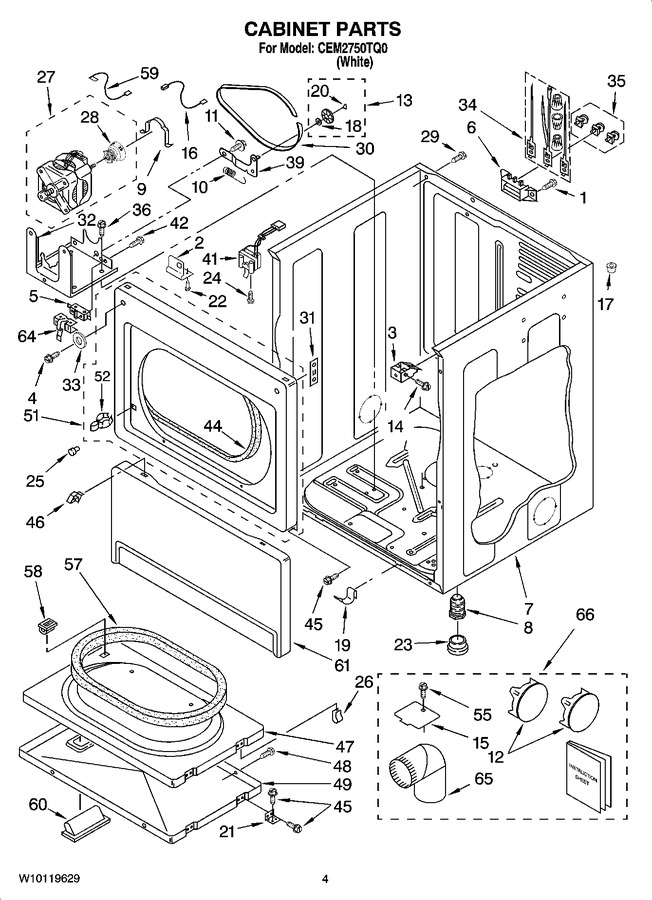

02 - Cabinet Parts


03 - Bulkhead Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP308685		Screw, 10-16 X 1/2   (Replaces: 3393008)			Immediately	$ 7.08
2	3353948		Bracket, Lock				$ 12.34
3	3391846		Clip, Front Panel (2)				$ 19.04
4	W10045050		Screw, 10-16 X 1/2		Appelez-nous	-
5	279782		Switch, Broken Belt   (Replaces: 3394881)			Immediately	$ 49.00
6	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 20.72
7	W11417441		Cabinet   (Replaces: 8310656)				$ 377.29
8	49621		Foot - Optional (extended Length Package Of 2 ) (not Included)   (Replaces: 279810)			Immediately	$ 7.70
8	49621		Foot, Dryer (plastic)   (Replaces: 3392100)			Immediately	$ 7.70
9	WP660658		Clamp, Motor (2)   (Replaces: 660658)				$ 7.05
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 22.11
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 7.22
12	W10470674		Plug, Multivent   (Replaces: 697750)			Immediately	$ 68.99
13	279640		Pulley Assembly   (Replaces: 3388672)			Immediately	$ 29.26
14	681615		Screw, 10-16 X 1   (Replaces: 3391915)				$ 12.49
15	WPW10354249		Plate, Cover   (Replaces: 3394331)				$ 8.06
16	3394081		Wire, Belt Switch				$ 37.57
17	356674		Cone-wedge				$ 33.19
18	WP233520		Washer, Thurst   (Replaces: 233520)			Immediately	$ 7.16
19	WP297092		Clip (2)   (Replaces: 297092)			Immediately	$ 7.42
20	WPW10512946		Tri-ring   (Replaces: 690997)			Immediately	$ 7.92
21	W11175815		Hinge And Pin (2)   (Replaces: 3389247)				$ 73.27
22	63554		Rivet (2)		Appelez-nous	-
23	WP3391943		Boot, Foot   (Replaces: 3391943)				$ 7.04
24	WP3395530		Screw, 6-20 X 7/8   (Replaces: 697773)				$ 6.93
25	693152		Bumper				$ 9.86
26	3389249		Nut, ``u`` (4)		Appelez-nous	-
27	W10841144		Motor Assembly 60 Hz.   (Replaces: 8538264)			Immediately	$ 210.88
28	WP8066184		Pulley   (Replaces: 3389627)			Immediately	$ 45.92
29	W10850756		Screw, Ground   (Replaces: 8533974)				$ 6.98
30	661570V		Belt, Drive   (Replaces: 3387610)			Immediately	$ 29.53
31	WP3390902		Clip, Door Hinge (2)   (Replaces: 3390902)				$ 10.00
32	WP3387118		Bracket, Motor   (Replaces: 3387118)				$ 120.23
33	W11089212		Washer   (Replaces: 3392186)				$ 8.70
34	279318		Terminal, Brass & Tinned (3) (includes Ill. 35)			Immediately	$ 90.89
35	279393		Terminal Block Screw Kit (for Terminal Block)			Immediately	$ 42.63
36	WP681414		Screw, 10-16 X 1/2   (Replaces: 3390663)			Immediately	$ 7.07
39	W10837240		Bracket, Idler   (Replaces: 3388674)			Immediately	$ 32.20
41	WPW10237959		Door Switch Assembly   (Replaces: 3406109)			Immediately	$ 50.08
42	WP98129		Screw, 6/20 X 1 1/16   (Replaces: 98129)				$ 6.80
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 28.28
45	WP488627		Screw, 8-18 X 1/2   (Replaces: 342055)				$ 6.81
46	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 7.61
47	280083		Door, Rear   (Replaces: 3392563)				$ 258.32
48	WP694091		Screw, 8-18 X 3/8   (Replaces: 694091)				$ 6.47
49	W11663440		Door, Front   (Replaces: 3387872)				$ 233.43
51	3393081		Front Panel		Appelez-nous	-
52	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.00
55	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.01
57	WP3390735		Seal, Door   (Replaces: 3390735)				$ 117.54
58	279570		Catch, Door Assembly   (Replaces: 3392538)			Immediately	$ 8.00
59	3398948		Wire, Jumper				$ 55.42
60	3389522		Handle, Door				$ 70.11
61	WP3406797		Panel, Toe   (Replaces: 697215)				$ 214.50
64	WP8066120		Lever, Snap Switch   (Replaces: 8066120)			Immediately	$ 29.80
65	279731		4`` - 90 Elbow		Appelez-nous	-
66	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) White   (Replaces: 279818)			Immediately	$ 68.99

    View Diagram in Separate Window       Print Part List
