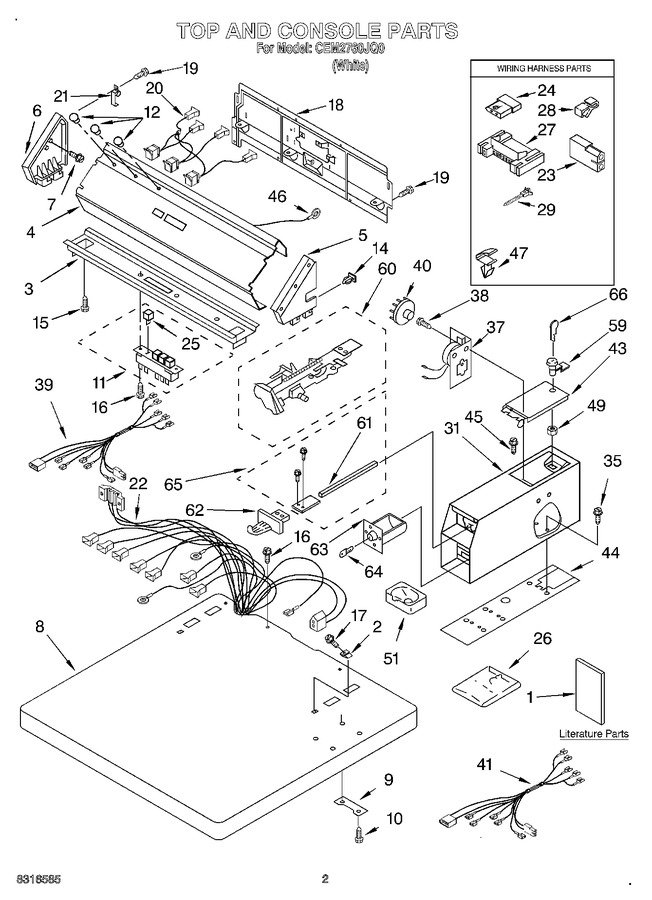

02 - Top And Console, Literature
03 - Cabinet
04 - Bulkhead
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8316558 | Literature Parts (instructions. Installation) |
|
- | |||||
| 1 | LIT8316585 | Literature Parts (service Parts List) |
|
- | |||||
| 1 | LIT8315969 | Literature Parts (label, Wiring Diagram) |
|
- | |||||
| 2 | WP357213 | Nut,push-in (Replaces: 357213) |
|
$ 6.65 | |||||
| 3 | 3361029 | Bracket, Control |
|
$ 34.04 | |||||
| 4 | 8316634 | Panel, Control |
|
$ 256.07 | |||||
| 5 | 8316516 | Cap, End (r.h.) |
|
- | |||||
| 6 | 3949734 | Cap, End (l.h.) |
|
- | |||||
| 7 | WPW10109200 | Screw, 11-16 X 3/4 (Replaces: 97787) |
|
Immediately | $ 7.20 | ||||
| 8 | 3954665 | Top |
|
$ 145.66 | |||||
| 9 | 3347825 | Plate-mounting (2) |
|
- | |||||
| 10 | W10841059 | Screw, 10-16 X 3/4 (Replaces: 98445) |
|
- | |||||
| 11 | WPW10330137 | Switch, Pushbutton (Replaces: 8316437) |
|
Immediately | $ 305.60 | ||||
| 12 | WP3348109 | Lens Light (amber) (Replaces: 3348109) |
|
Immediately | $ 11.26 | ||||
| 14 | 689559 | Nut, Push-in |
|
- | |||||
| 15 | WP3390631 | Screw, Ground (Replaces: 339554) |
|
$ 7.04 | |||||
| 16 | WP355214 | Screw 8-18 X 11/32 (Replaces: 3393918) |
|
Immediately | $ 7.26 | ||||
| 17 | 8281182 | Screw 8-18 X 1-1/4 |
|
$ 5.33 | |||||
| 18 | 3406471 | Panel, Rear (upper) |
|
- | |||||
| 19 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.01 | ||||
| 20 | 3401177 | Light, Indicator Assembly |
|
- | |||||
| 21 | 387402 | Hinge (2) |
|
$ 5.84 | |||||
| 22 | 8283165 | Harness, Main |
|
- | |||||
| 23 | 717252 | Receptacle, 2 Way |
|
- | |||||
| 24 | 717253 | Receptacle (2-way) |
|
- | |||||
| 25 | WPW10330137 | Pushbutton (Replaces: 8316433) |
|
Immediately | $ 305.60 | ||||
| 26 | 279950 | Meter Case Conversion Kit (Replaces: 8316238) |
|
Immediately | $ 26.00 | ||||
| 27 | 3395683 | Housing Connector |
|
Immediately | $ 46.67 | ||||
| 28 | 3397658 | Clip, Ground |
|
- | |||||
| 29 | WP3391018 | Tie, Cable (Replaces: 3391018) |
|
$ 28.66 | |||||
| 31 | WPW10461200 | Case, Meter (Replaces: 3406994) |
|
Immediately | $ 344.90 | ||||
| 35 | W11715721 | Screw, 5/16-24 X 1 (Replaces: 3349065) |
|
$ 6.41 | |||||
| 37 | 279737 | Timer (incl. 4 Pin Cam) (Replaces: 3387975) |
|
Immediately | $ 280.89 | ||||
| 38 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.04 | ||||
| 39 | 3401691 | Harness, Console |
|
- | |||||
| 40 | WP339855 | 4 Pin Cam (Replaces: 339855) |
|
$ 7.53 | |||||
| 41 | 3401682 | Harness, Timer |
|
$ 75.67 | |||||
| 43 | W11283272 | Door, Service (Replaces: 3351136) |
|
$ 95.29 | |||||
| 44 | WP3954812 | Cushion, Meter Case (Replaces: 3348850) |
|
$ 27.99 | |||||
| 45 | 339805 | Screw, 10-32 X 3/16 |
|
$ 12.05 | |||||
| 46 | 3398893 | Ground Wire |
|
- | |||||
| 47 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 7.01 | |||||
| 49 | WP90406 | Nut, Cage (Replaces: 90406) |
|
$ 7.33 | |||||
| 51 | WP385421 | Coin Funnel (Replaces: 385421) |
|
Immediately | $ 66.78 |
