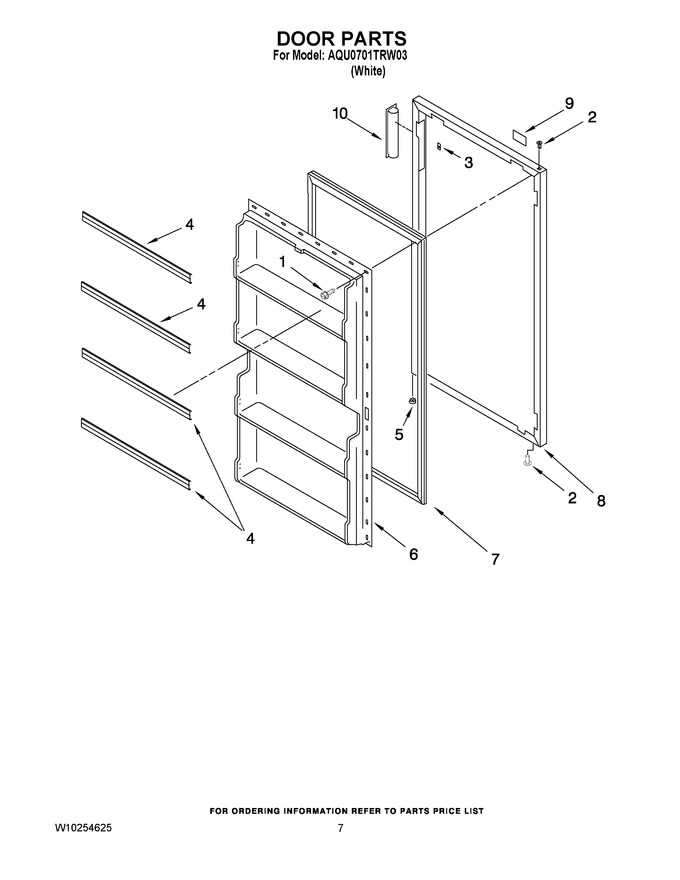

04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4390598 | Screw Kit (50 Pcs) (Replaces: 4357290) |
|
$ 18.89 | |||||
| 2 | 4390731 | Bushing, Hinge |
|
$ 19.69 | |||||
| 3 | 4356306 | Clip, Handle |
|
$ 7.36 | |||||
| 4 | 8210418 | Rail, Door Shelf(4) |
|
- | |||||
| 5 | 3-24898-007 | Plug, Ven (Replaces: 4357067) |
|
$ 9.72 | |||||
| 6 | 8210417 | Door, Interior (includes Item 1) |
|
$ 236.66 | |||||
| 7 | 8210338 | Gasket, Door (includes Item 1) |
|
$ 160.23 | |||||
| 8 | 8210364 | Door, Exterior |
|
- | |||||
| 9 | 68001748 | Nameplate |
|
- | |||||
| 10 | 4390641 | Handle (includes Item 3) |
|
- |
