SELECT A DIAGRAM

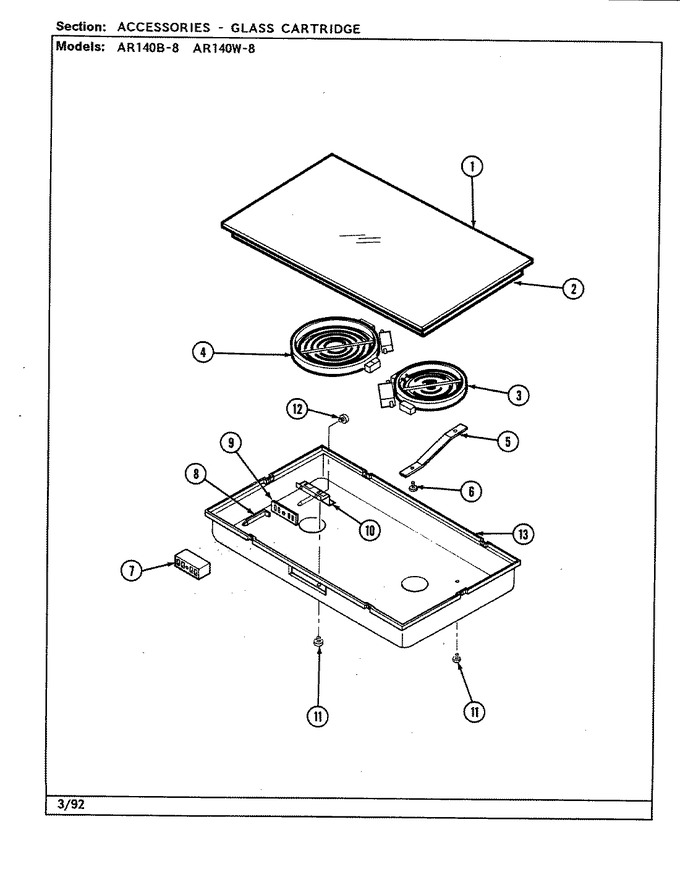

01 - Accessories (glass Cartridge)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 04100257 | Glass/frame Assy (radiant) | 1 |
|
- | ||||
| 2 | 12200008 | Top Assy | 1 |
|
- | ||||
| 3 | Y04100328 | Element, Radiant (6``-208v) | 1 |
|
- | ||||
| 4 | Y04100329 | Element, Radiant (8``-208v) | 1 |
|
- | ||||
| 5 | WPY04100059 | Screw (Replaces: Y04100059) | 1 |
|
$ 6.96 | ||||
| 5 | Y04100058 | Spring, Support | 1 |
|
- | ||||
| 6 | WP210720 | Rivet (Replaces: 701662) | 1 |
|
$ 12.14 | ||||
| 7 | WPY708730 | Block, Terminal (Replaces: Y708730) | 1 |
|
Immediately | $ 87.44 | |||
| 8 | Y708572 | Spade, Contact | 1 |
|
Immediately | $ 11.34 | |||
| 9 | 708834 | Insulator, Contact Spade | 1 |
|
$ 13.49 | ||||
| 10 | Y04100060 | Bracket, Retaining | 1 |
|
- | ||||
| 11 | WP12990527 | Screw (Replaces: Y708955) | 1 |
|
Immediately | $ 7.15 | |||
| 12 | WP488234 | Screw (Replaces: 708861) | 1 |
|
$ 6.07 | ||||
| 13 | Y04100064 | Pan, Cartridge | 1 |
|
- |
