View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop
02 - Control Panel
03 - Chassis
04 - Drawer & Broiler
05 - Door, Lit/optional
SELECT A DIAGRAM
New Model Search:

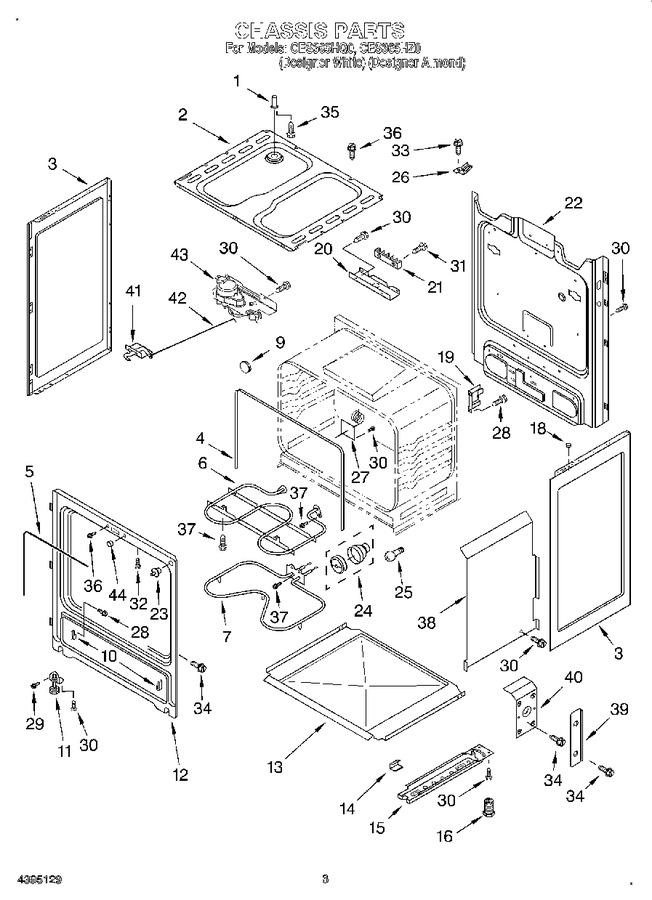

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9755804 | Vent Tube (Replaces: 3169108) |
|
$ 111.31 | |||||
| 2 | W11699791 | Box, Burner (Replaces: 3186144) |
|
$ 224.83 | |||||
| 3 | 8053831 | Panel, Side (2) (almond-textured) |
|
- | |||||
| 3 | WPW10575396 | Panel, Side (2) (white-textured) (Replaces: 8053830) |
|
$ 133.84 | |||||
| 4 | 3195737 | Seal, Oven Flange |
|
- | |||||
| 5 | W11542153 | Seal, Oven Door (Replaces: 3195023) |
|
Immediately | $ 45.18 | ||||
| 6 | W10856603 | Element, Broil (Replaces: 8053712) |
|
Immediately | $ 139.16 | ||||
| 7 | WPW10308477 | Element, Bake (Replaces: 8053713) |
|
Immediately | $ 64.67 | ||||
| 9 | 3196439 | Button, Plug (2) |
|
- | |||||
| 10 | WP3195546 | Glide, Drawer Front (Replaces: 3195546) |
|
Immediately | $ 7.14 | ||||
| 11 | WP3196037 | Foot, Front (2) (Replaces: 3196037) |
|
$ 74.67 | |||||
| 12 | 3186156 | Frame, Front |
|
- | |||||
| 13 | WP8054068 | Tray, Insulation (Replaces: 3186145) |
|
$ 89.45 | |||||
| 14 | 3196576 | Clip, Panel (6) |
|
- | |||||
| 15 | W11818353 | Rail, Base (2) (Replaces: 8053335) |
|
$ 53.71 | |||||
| 16 | WPW10058460 | Foot, Rear (2) (Replaces: 312701) |
|
Immediately | $ 7.07 | ||||
| 18 | 238614 | Bumper, Side (2) (Replaces: 3195809) |
|
$ 72.68 | |||||
| 19 | W10404688 | Support, Oven (2) (Replaces: 3186116) |
|
$ 15.17 | |||||
| 20 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 21 | WP112432 | Nut, (3) (Replaces: 112432) |
|
$ 7.16 | |||||
| 21 | WP8203546 | Block, Terminal (Replaces: 4449868) |
|
Immediately | $ 27.12 | ||||
| 22 | 8053508 | Back, Main |
|
- | |||||
| 23 | 3195993 | Switch, Door |
|
$ 63.13 | |||||
| 24 | W11594027 | Light Socket Assy (Replaces: 3196701) |
|
Immediately | $ 78.31 | ||||
| 25 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 16.80 | ||||
| 26 | 3169573 | Strap, Ground |
|
- | |||||
| 27 | 3196966 | Sensor, Oven |
|
- | |||||
| 28 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.47 | ||||
| 29 | WP98008545 | Screw (Replaces: 3196179) |
|
$ 15.94 | |||||
| 30 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 31 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.16 | |||||
| 32 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 12.62 | ||||
| 33 | W11244557 | Screw (Replaces: 3196173) |
|
$ 12.25 | |||||
| 34 | WP7101P246-60 | Screw (Replaces: 3196177) |
|
$ 6.98 | |||||
| 35 | WP3196567 | Screw (Replaces: 3196567) |
|
$ 6.91 | |||||
| 36 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 6.98 | ||||
| 37 | WP3196174 | Screw (Replaces: 3196174) |
|
Immediately | $ 7.04 | ||||
| 38 | 3195717 | Retainer, Side (2) |
|
- | |||||
| 39 | 3196091 | Shield, Outer (2) |
|
- | |||||
| 40 | 3196092 | Shield, Inner (2) |
|
- | |||||
| 41 | WP9761013 | Latch, Door (Replaces: 3196119) |
|
$ 219.74 | |||||
| 42 | 3196961 | Rod, Latch |
|
- | |||||
| 43 | WPW10107830 | Latch Asy, Rear (Replaces: 3196958) |
|
$ 290.98 | |||||
| 44 | W11311894 | Insulation, Back (Replaces: 3186148) |
|
$ 95.48 | |||||
| 44 | W10877054 | Spacer, Door (Replaces: 3196392) |
|
Immediately | $ 48.05 | ||||
| 44 | WPW10208653 | Insulation, Wrap (Replaces: 3195037) |
|
Immediately | $ 49.92 |
